Overview

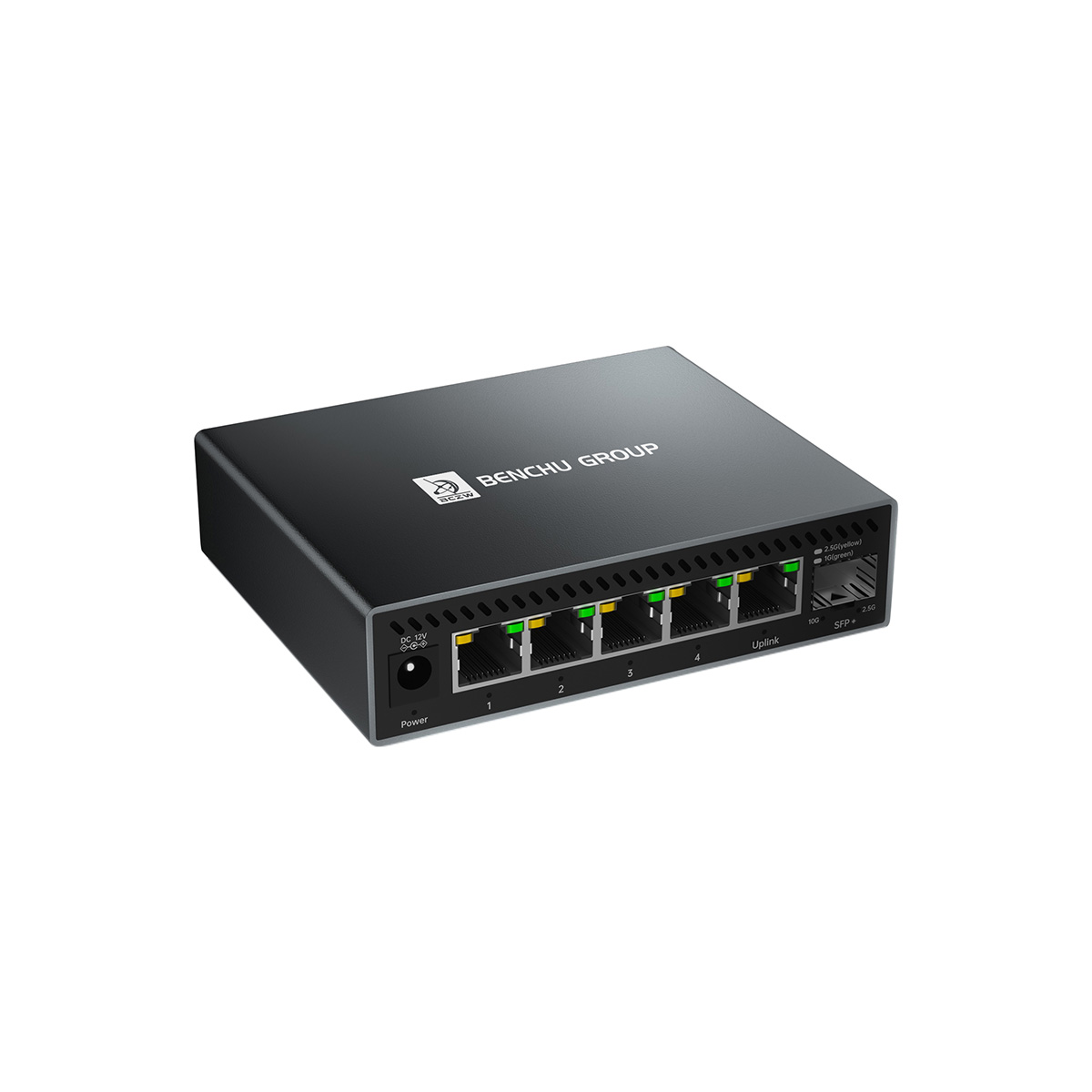

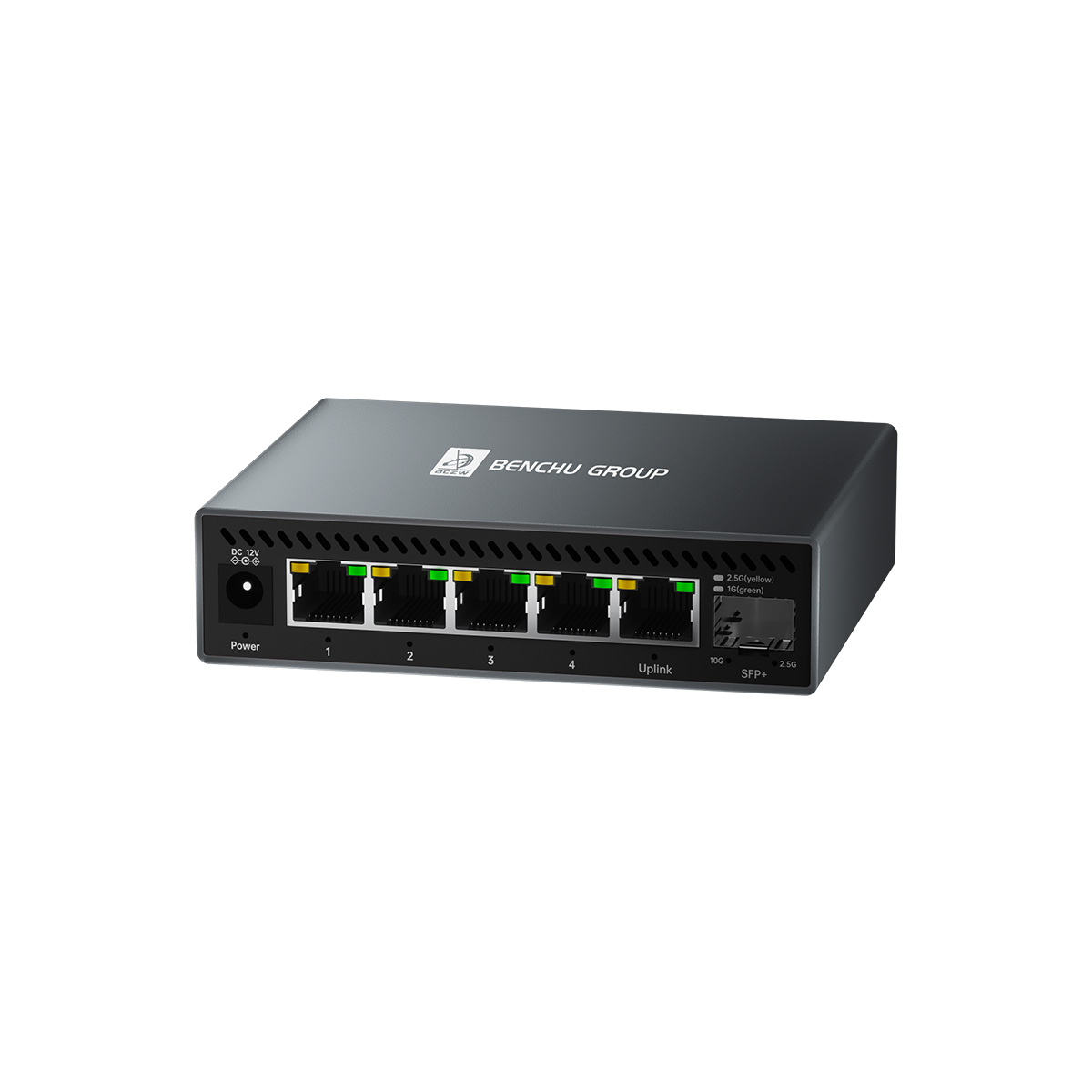

S7200-5XE1TF-DC, 5 port 2.5gb switch
Features
Multi-Gig Speed for Demanding Networks
Experience 2.5Gbps on each port—ideal for 4K/8K video, VR gaming, and large file transfers. Supports auto-negotiation between 10M/100M/1G/2.5G devices.
10G SFP+ Port for Future Expansion
Add a high-speed uplink to your router or server with an optional SFP+ module. Ready for 10G fiber or copper connections without replacing the switch.
Wide Device Compatibility
Works seamlessly with game consoles, NAS systems, PCs, Wi-Fi 6/7 access points, and smart home devices. Supports Cat5e/Cat6/Cat7 cables up to 100 meters.
Quiet & Reliable Design
Fanless aluminum casing ensures silent operation and efficient heat dissipation, perfect for living rooms, offices, and studios.
Easy Plug & Play Installation
No software or configuration needed. Just connect your devices and power on for instant high-speed networking.
Connectivity Solutions
5 Port 2.5G Ethernet Switch with 1 10G Uplink Connection Solution

Specification
Spécifications techniques :
S7200-4XE2TF-DCPorts cuivre RJ45 10M/100M/1G/2.5G :
4Ports 1G/2,5G/10G SFP+ (fibre) :
2Spécification de performance :
*Mémoire tampon de paquets :
8.2 MbModes de transfert :
Store-and-forwardBande passante :
2.5G+10GTaux de transfert de paquets :
44.64MppsTaille de la base de données d'adresses MAC :
2KTemps moyen entre les pannes :
120,116 hours (MTBF) @ 25°CProtocoles réseau IEEE :
*Protocoles :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 100BASE-T • IEEE 802.3z 100BASE-X • IEEE 802.3bz 2.5GBASE-T • IEEE 802.3ae 10GBASE-X• IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlSurveillance :
*LED :
YesPar port :
Speed, Link, Activity;Par appareil :
PowerDimensions (Largeur * Profondeur * Hauteur) :
140 x 80 x 28mm (5.51 x 3.15 x 1.1 in)Poids :
0.4 kg (0.88 lb)Exigences d'alimentation :
DC12V 1Amaximum d'énergie :
9WConsommation d'énergie au repos :
5WEthernet économe en énergie (EEE) :
Yes (deactivated by default)Ventilateur :
FanlessSpécifications environnementales :
*Température de fonctionnement :
-20° to 50°C (-4° to 122°F)humidité d'exploitation :
90% maximum relative humidity (RH), non-condensingAltitude de fonctionnement :
10,000 ft (3,000 m) maximumTempérature de stockage :
-30° to 70°C (-22° to 158°F)Humidité de stockage (relative) :
95% maximum relative humidity, non-condensingAltitude de stockage :
10,000 ft (3,000 m) maximumÉmissions électromagnétiques et immunité :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Sécurité :
*Certifications de sécurité :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Garantie et assistance :
*Garantie limitée sur le matériel :
Limited Lifetime*Assistance technique par téléphone et e-mail* :
Limited Lifetime*Assistance technique par chat en ligne 24h/24 et 7j/7 :
Limited Lifetime*Contenu du colis :
*Tous les modèles :
Network Switch;Power adapter (localized to region of sale)Type d'entreprise :
CommercialPlus de filtres :
Unmanaged
Questions & Answers
Q1: Is this switch compatible with my existing router and devices?
A: Yes, it auto-negotiates speeds from 10M to 2.5G and works with most routers, PCs, NAS, game consoles, and smart home devices.
Q2: Do I need special cables for 2.5G speeds?
A: You can use existing Cat5e (up to 60m), Cat6 (up to 80m), or Cat7 (up to 100m) cables for full 2.5G performance.
Q3: Does the switch make noise?
A: No, it is completely fanless and silent, thanks to its aluminum heat-dissipating design.
Q4: What is the 10G SFP+ port used for?
A: It allows you to connect to a 10G network backbone, NAS, or server using an optional SFP+ module, future-proofing your network.
Q5: Is this switch easy to set up for someone without IT experience?
A: Absolutely. It’s plug-and-play—no configuration or software required. Just connect your devices and power it on.
