5-Port Gigabit Industrial Boost PoE Switch with 1-Port SFP Uplink, DC 9V-54V Input, 120W Standard DIN-Rail Fiber Step-Up Switch

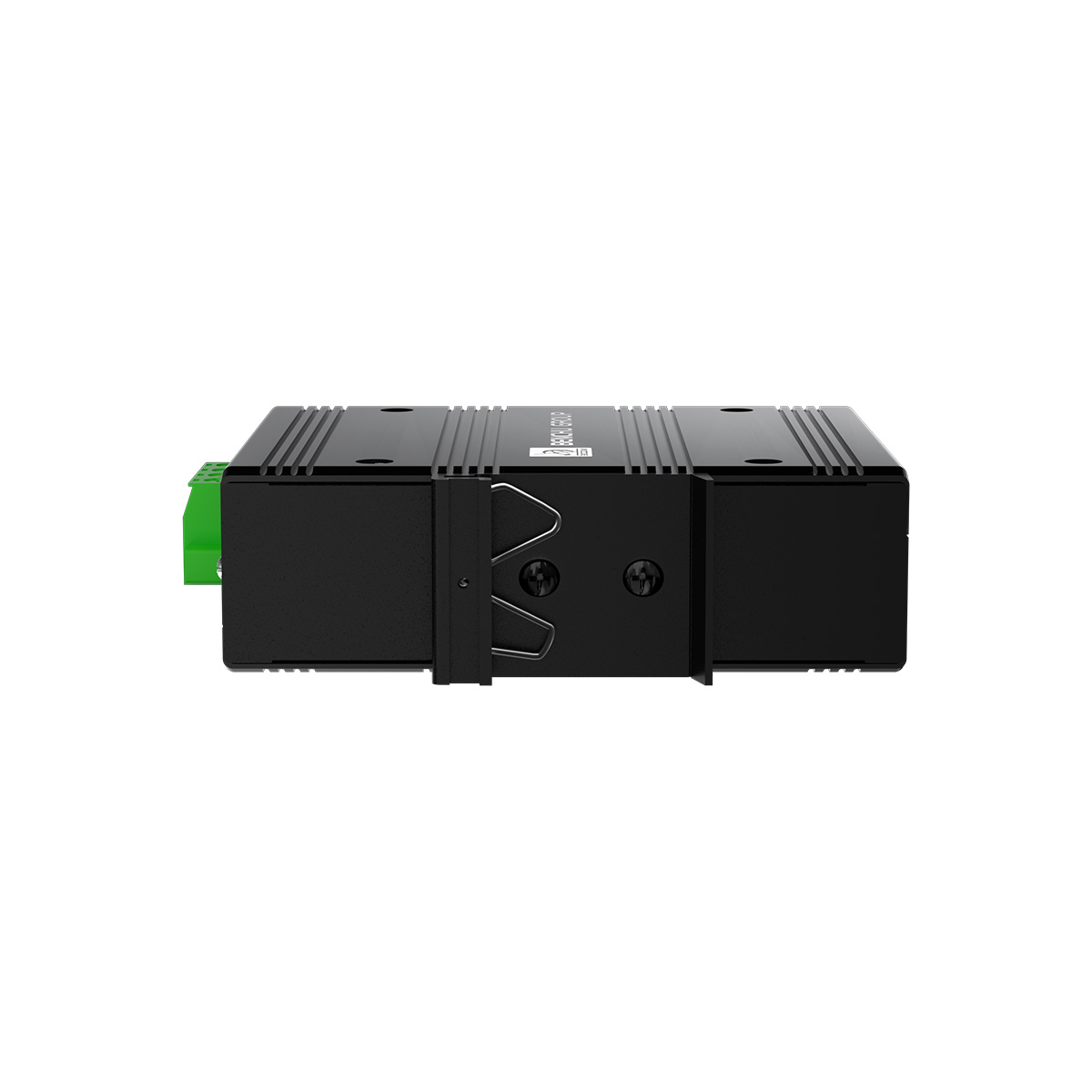

5 port solar powered poe switch DIN rail mounting

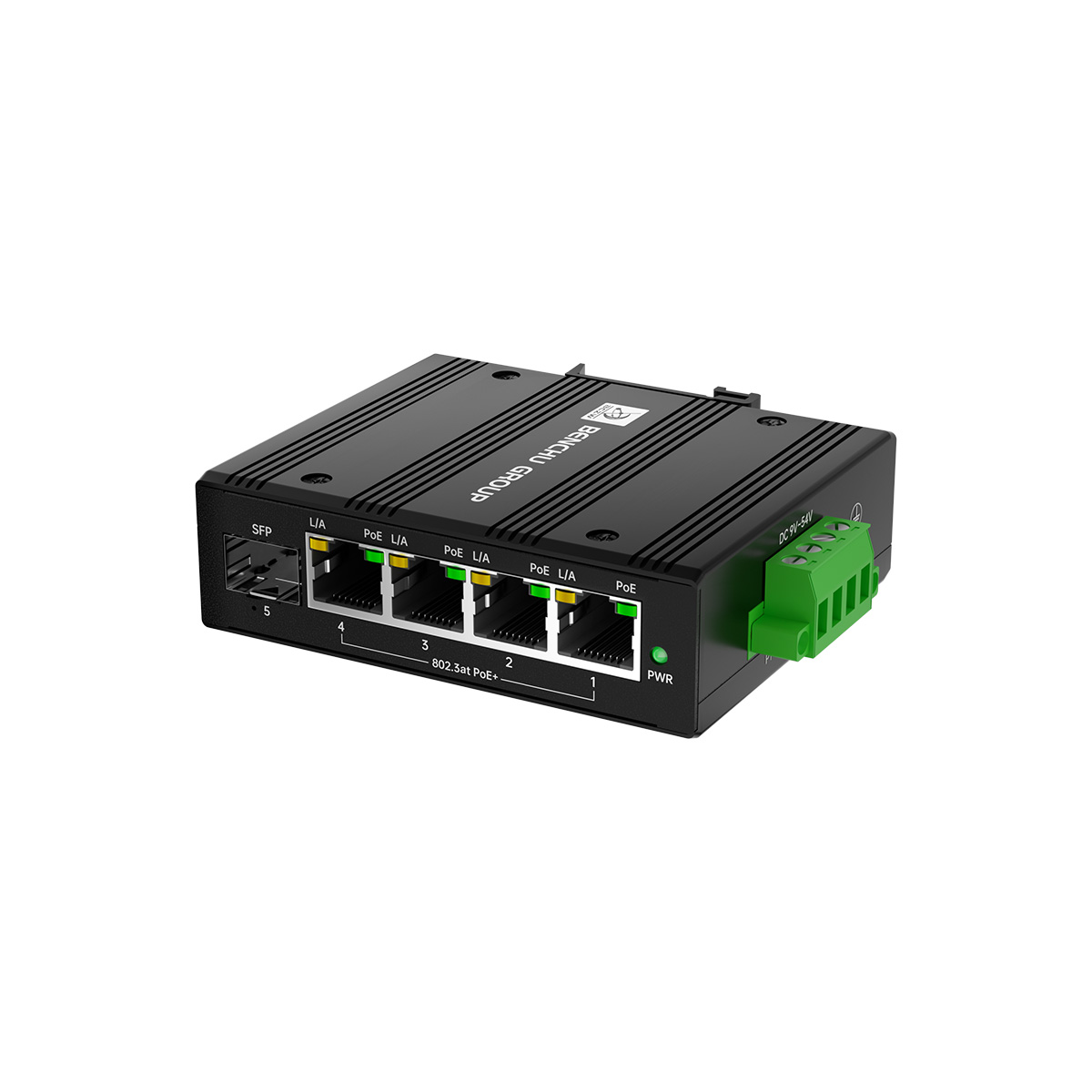

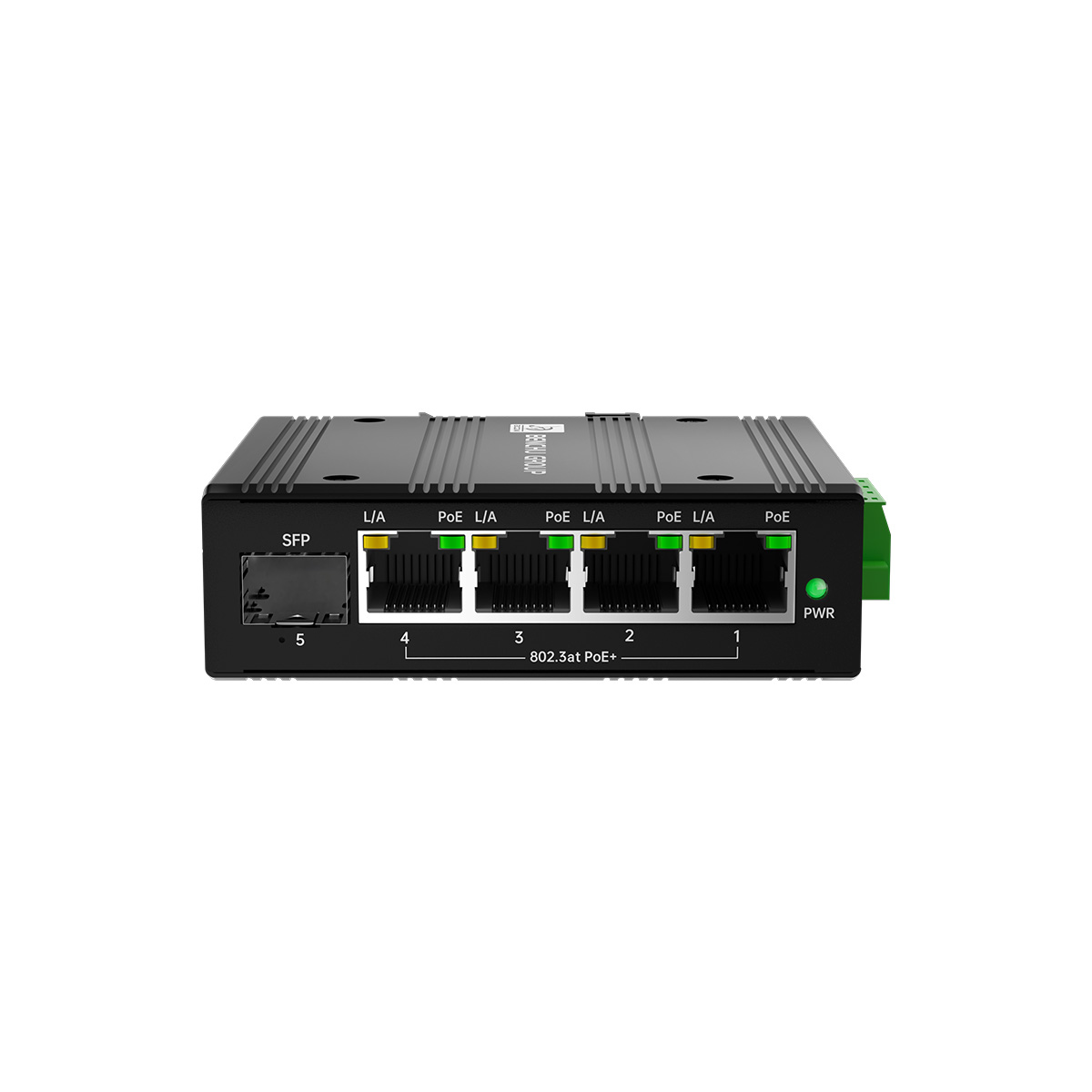

5 port solar powered poe switch front view

5-Port Gigabit Industrial Boost PoE Switch with 1-Port SFP Uplink, DC 9V-54V Input, 120W Standard DIN-Rail Fiber Step-Up Switch

Renseignez-vous maintenant

This rugged gigabit switch boots 12V/24V DC input up to 48V to deliver 120W PoE+ power, making it the perfect plug-and-play solution for solar and vehicle surveillance.

Product Highlights
    • 9V-54V Wide Voltage Booster: Directly converts low-voltage DC inputs into stable standard 48V-54V PoE+ output power.
    • Massive 120W Total Budget: Delivers maximum 120W at 24V-54V input, seamlessly powering four heavy-duty PoE+ devices.
    • Long-Distance Fiber SFP Uplink: Provides one Gigabit SFP port for noise-immune fiber optic data transmission up to eighty kilometers.
    • Full Gigabit Network Speed: Ensures zero-latency and non-blocking high-definition video streaming on all five active network ports.
    • Dual Power Redundancy Input: Supports dual DC inputs via terminal blocks to enable instant seamless power failover protection.
    • Ultra-Compact Pocket-Sized Form Factor: Slightly larger than a playing card, saving critical installation space inside crowded outdoor cabinets.
    • -40°C to 85°C Industrial Range: Fanless aluminum housing acts as a giant heatsink to resist extreme arctic freezing or desert heat.
    • 6KV Surge & 15KV ESD Safeguards: High-level industrial surge protection prevents costly network damage from lightning strikes and friction spikes.

5 port boost PoE switch Obtained certification icon

5-Port Gigabit Industrial Boost PoE Switch with SFP Uplink (IES7211-4PGE1GF-BOS)

Rugged 9V-54V Input to 48V Step-Up Fiber PoE Solution for Remote Infrastructure

Break Distance Barriers with Low-Voltage Solar & Fiber Integration

Engineered for B2B system integrators, this industrial switch seamlessly combines ultra-wide DC 9V-54V voltage boosting with a Gigabit SFP optical uplink. It eliminates the need for expensive external converters, directly transforming 12V/24V solar batteries or transit power into standard 48V-54V PoE+. The SFP port provides lightning-fast, noise-immune fiber backbones over long distances (up to 80km), delivering a highly reliable 120W power budget at 24V-54V input (75W at 12V input) for critical remote surveillance networks.

Target Application Scenarios

This hardened step-up SFP switch is the premier choice for long-distance industrial IoT and outdoor engineering:

Long-Range Off-Grid Solar CCTV

Connects directly to 12V/24V solar panels to power high-power cameras, using the SFP uplink to stream high-definition video back to control centers miles away without copper limits.

Rail & Transit Fiber Networks

Utilizes low-voltage transit batteries in high-vibration train networks or highways. The fiber link protects data transmission from severe electromagnetic interference (EMI).

Smart City ITS Enclosures

Fits into tight roadside traffic cabinets utilizing 24V power. Delivers a zero-latency optical backbone link for traffic controllers, ANPR cameras, and vehicle radars.

Coastal & Heavy Industrial Sites

The fanless aluminum shell withstands -40°C to 85°C heat. Fiber backhaul completely isolates ground potential differences, eliminating lightning risks across long pipeline paths.

Key Product Features & Capabilities

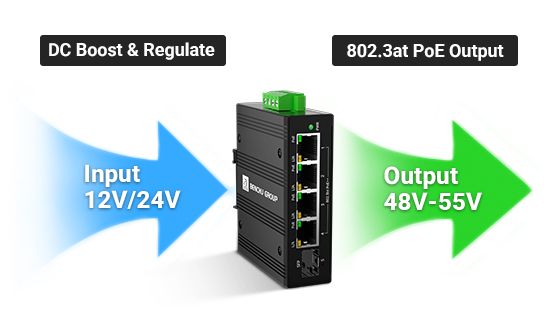

9V-54V to 48V Voltage Booster

9V-54V Voltage Booster

Integrated step-up module converts wide-range low DC input into stable IEEE 802.3at 48V-54V PoE+ power directly.

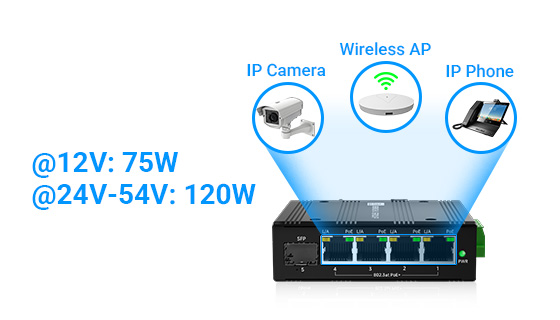

120W High Power Budget

Intelligent Power Budget

Delivers max. 120W total budget at 24V-54V input (full 30W/port) and auto-scales to max. 75W safely at 12V input.

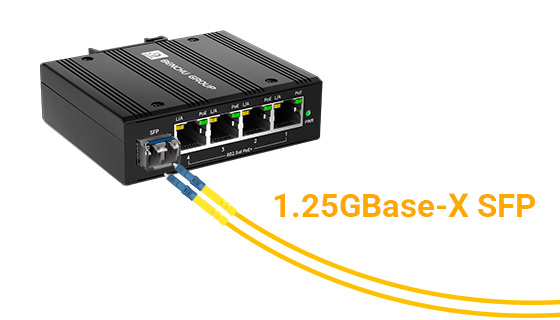

Long-Distance Gigabit SFP Uplink

Long-Distance SFP Uplink

Equipped with 1 Gigabit SFP slot for noise-immune fiber optic data transmission, smoothly bypassing the 100m copper limit.

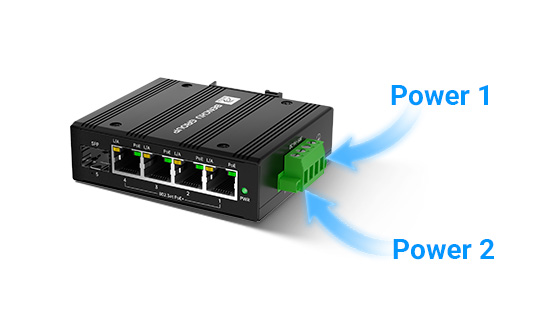

Dual Power Input Redundancy

Dual Power Redundancy

Supports dual DC inputs with industrial terminal blocks for seamless failover, ensuring 24/7 network uptime.

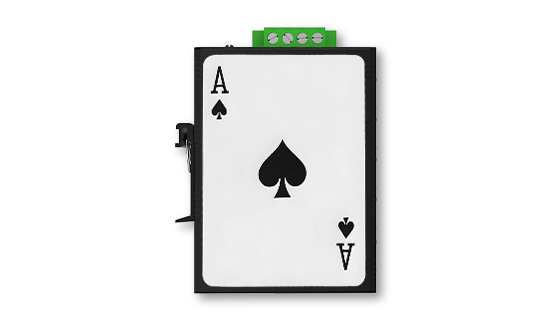

Ultra-Compact Mini Size Enclosure

Ultra-Compact Size

Slightly larger than a deck of playing cards, saving massive installation space inside crowded outdoor roadside cabinets.

Industrial Temperature -40°C to 85°C Passively Cooled

-40°C to 85°C Hardened

Fanless rugged aluminum alloy acts as a massive heatsink, safely exporting internal warmth to survive at up to 85°C ambient.

6KV Surge and 15KV ESD Protection

Heavy-Duty Protection

Built-in 6KV surge and industrial-grade 15KV ESD protections shield network backbones against catastrophic outdoor lightning fluctuations.

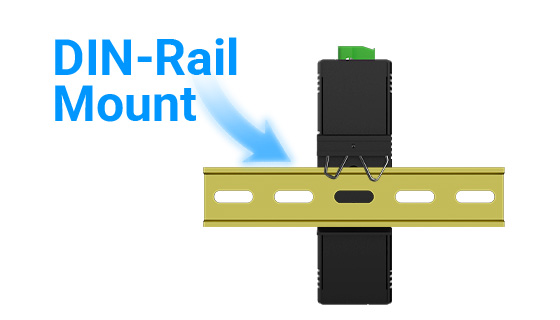

DIN-Rail and Wall Mount Plug and Play

Flexible Mount & Deploy

Supports both 35mm DIN-rail and wall-mount installation. Zero-configuration plug-and-play minimizes deployment costs.

Industrial SFP Fiber Connectivity Solutions



Long-distance, anti-interference fiber integration for low-voltage power networks.

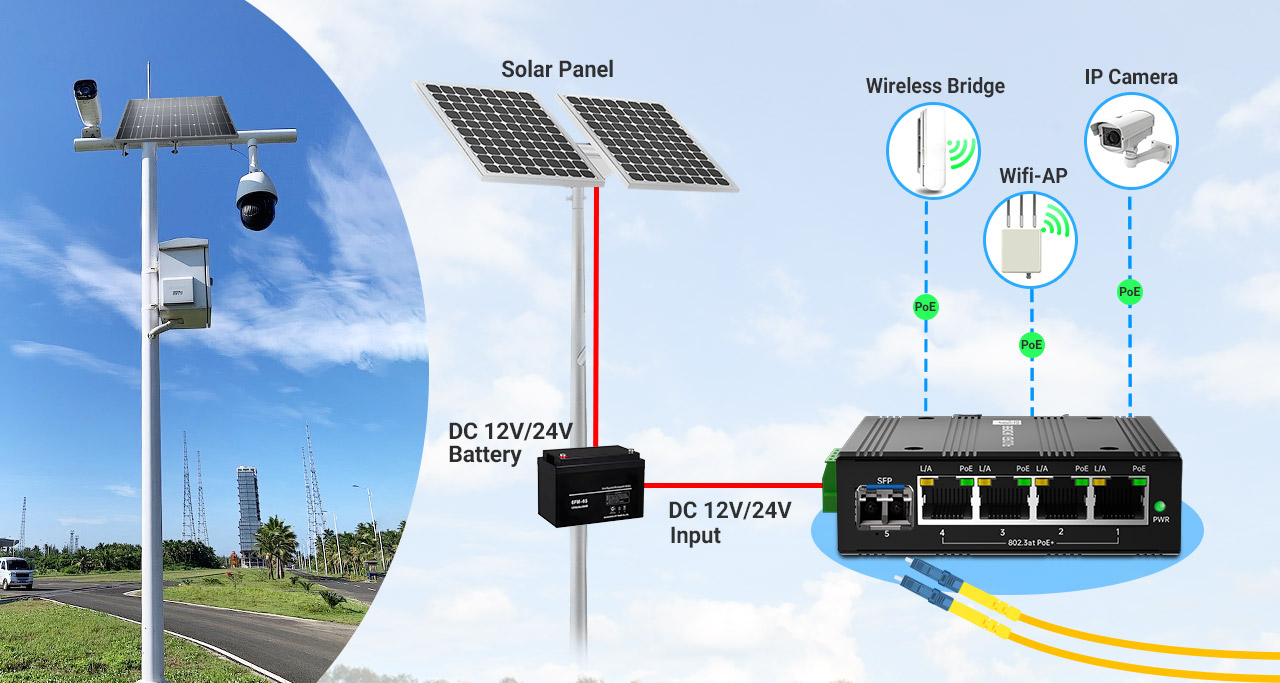

4-Port Gigabit PoE+ and 1-Port SFP Boost Switch Long Distance Connection Topology

Break Distance & Interference Barriers

  • 1. Long-Distance Solar Fiber Backbone Connect the dual DC terminals directly to a 12V/24V solar battery bank. Use the Gigabit SFP uplink slot to bypass the 100-meter copper limit, transmitting high-speed IP CCTV video to central servers up to 80km away via single-mode fiber.
  • 2. Noise-Immune Transit & Pipeline Surveillance Hook up to low-voltage battery lines in transit systems or industrial fields. The fiber optic uplink isolates ground potential differences and guarantees zero-packet-loss data feeds in high electromagnetic interference (EMI) areas.
  • 3. 24V DC DIN-Rail Automation Nodes Fit the pocket-sized device onto 35mm standard DIN-rails inside standard 24V industrial control cabinets. Power up to 4 high-speed IP cameras, sensors, or field devices with an aggregate power budget up to 120W while saving precious space.

Specification

Technical Specifications Details / Parameters
Product Model IES7211-4PGE1GF-BOS (5-Port Gigabit Boost PoE Switch with SFP)
Interface 4*10/100/1000M PoE Ports + 1*10/100/1000M SFP Uplink
Power Input / Booster DC 9V - 54V Wide Voltage Input ; Integrated Power Booster (Steps up to 48V-54V PoE)
PoE Output Integrated 48V~54V Boost; 4*Gigabit PoE+ (802.3af/at)
Max PoE Budget 12V Input (Max 75W); 24V~54V input (Max 120W) (Depends on Input Power)
Power Input Redundancy Dual DC Inputs via Industrial Terminal Block (Failover Protection)
Enclosure & Form Factor Rugged IP40 Aluminum Alloy; Fanless Design; Ultra-Compact Pocket Size
Working Temp -40°C to +75°C (Industrial Grade)
Protection 6KV Surge Protection; ESD 15KV
Mounting DIN-Rail / Wall-mount (Compact Size)

  • Type d'entreprise :

    Industrial

  • Bande passante :

    1G

  • Plus de filtres :

    Unmanaged

Frequently Asked Questions (FAQ)


Q1: What brands of SFP transceiver modules are compatible with this switch?▼
The Gigabit SFP slot features an open, globally compliant architecture that works with major transceiver brands like Cisco, Huawei, HP, Aruba, and Finisar.

💡 Save Time with One-Stop Procurement: As an established fiber optical manufacturer, we supply a full range of industrial-grade SFP transceiver modules (Single-mode/Multi-mode, Dual-fiber/BiDi) that are 100% factory-tested and cross-validated for this specific boost switch series. Contact our engineering support team to bundle your switch order and eliminate field interoperability risks!
Q2: What is the maximum fiber transmission distance supported by the SFP port?▼
The transmission distance depends on the SFP transceiver module you insert. It typically supports up to 550m-2km via multi-mode fiber, and can easily extend from 20km up to 80km or above over single-mode fiber infrastructure.
Q3: What is the maximum PoE power budget at 12V DC input?▼
At 12V DC input, the switch safely delivers a maximum PoE budget of 75W. This engineering design safely protects the internal voltage boost circuits from overcurrent damage.
Q4: Can this switch output the full 120W budget with 24V DC input?▼
Yes, absolutely. With a 24V to 54V DC input, the internal booster provides a full 120W budget, allowing all 4 network ports to output full 30W PoE+ simultaneously.
Q5: The switch aluminum enclosure feels hot to the touch. Is this normal?▼
Yes, it is completely normal. Utilizing a fanless thermal design, internal heat is conducted via high-grade silicone pads straight to the rugged aluminum casing, which efficiently acts as a giant heatsink.
Q6: Will this outer shell warmth compromise the switch long-term lifespans?▼
Not at all. The switch is built with premium components rated for an extreme industrial operating temperature range of -40°C to +75°C (with hardware survival threshold up to 85°C). Shell warmth will not impair its lifetime stability.

Resource Download Center



Get the complete technical documents and dimension drawings for your project planning.


PDF



Product Datasheet (PDF)

Includes detailed hardware specifications, structural dimensions, environmental standards, and compliance certifications.

📥 Download Datasheet

Industrial Boost PoE Switch Selection Guide



Compare technical features across our premium 9V-54V step-up PoE series to find the exact model for your infrastructure.

Model Name IES7211-5PGE1GE-BOS
5-Port RJ45 Edition		 IES7211-4PGE1GF-BOS
5-Port SFP Edition		 IES7211-9PGE1GE-BOS
9-Port High-Density RJ45		 IES7212-8PGE2GF-BOS
10-Port Dual SFP Ring
Product Image
IES7211-5PGE1GE-BOS
IES7211-4PGE1GF-BOS
IES7211-9PGE1GE-BOS
IES7212-8PGE2GF-BOS
PoE Downlink Ports 4 x 10/100/1000M PoE+ 4 x 10/100/1000M PoE+ 8 x 10/100/1000M PoE+ 8 x 10/100/1000M PoE+
Uplink Ports 1 x 10/100/1000M RJ45 1 x 10/100/1000M SFP Slot 1 x 10/100/1000M RJ45 2 x 10/100/1000M SFP Slots
Fiber Ring Topology ❌ Not Supported Point-to-Point Only ❌ Not Supported ✔ Supported (Dual Fiber Loop)
Voltage Input Range DC 9V - 54V Wide Input DC 9V - 54V Wide Input DC 9V - 54V Wide Input DC 9V - 54V Wide Input
Max PoE Budget @12V: Max 75W
@24V-54V: Max 120W		 @12V: Max 75W
@24V-54V: Max 120W		 @12V: Max 90W
@24V-54V: Max 240W		 @12V: Max 90W
@24V-54V: Max 240W
Switching Capacity 10 Gbps (Non-blocking) 10 Gbps (Non-blocking) 18 Gbps (Non-blocking) 20 Gbps (Non-blocking)
Rugged Protection 6KV Surge; ESD 15KV;
IP40 Aluminum Casing		 6KV Surge; ESD 15KV;
IP40 Aluminum Casing		 6KV Surge; ESD 15KV;
IP40 Aluminum Casing		 6KV Surge; ESD 15KV;
IP40 Aluminum Casing
Ideal Applications • Small solar battery hubs.
• In-vehicle mobile CCTV.
• Local automation racks.		 • Remote off-grid solar nodes.
• Long-distance transit fiber.
• High-EMI isolation fields.		 • Multi-camera mobile transit.
• Heavy factory floor grids.
• High-density toll stations.		 • Smart City ITS fiber loops.
• Long-distance pipeline CCTV.
• Mission-critical link backup.
