Industrial 90W Gigabit PoE Extender & Repeater | OEM

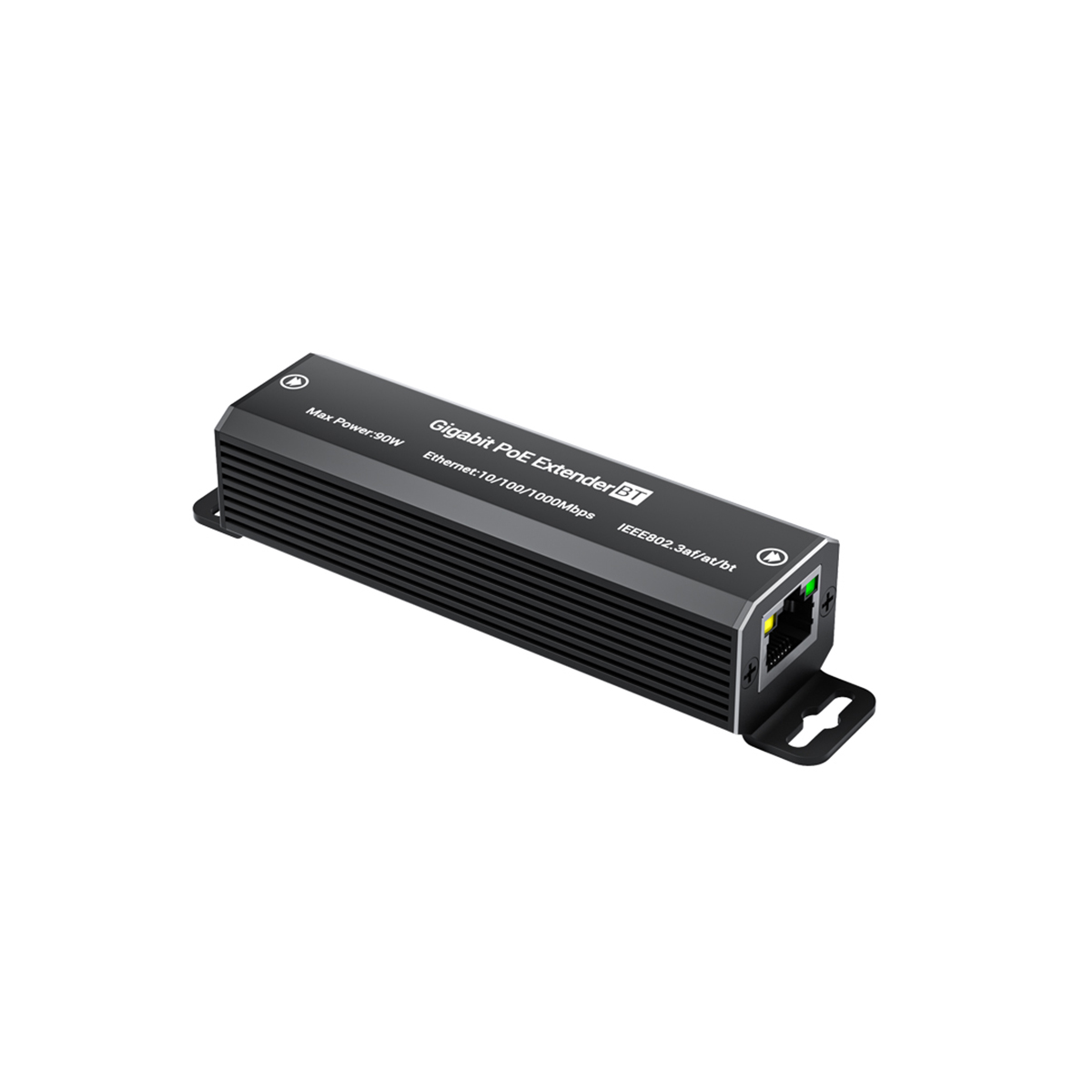

Left angled view of Benchugroup 90W industrial PoE repeater showing gigabit RJ45 input port and LED status indicators.
Right angled profile of 1-port 90W PoE extender switch highlighting the outdoor IP40 aluminum casing and PoE output port.

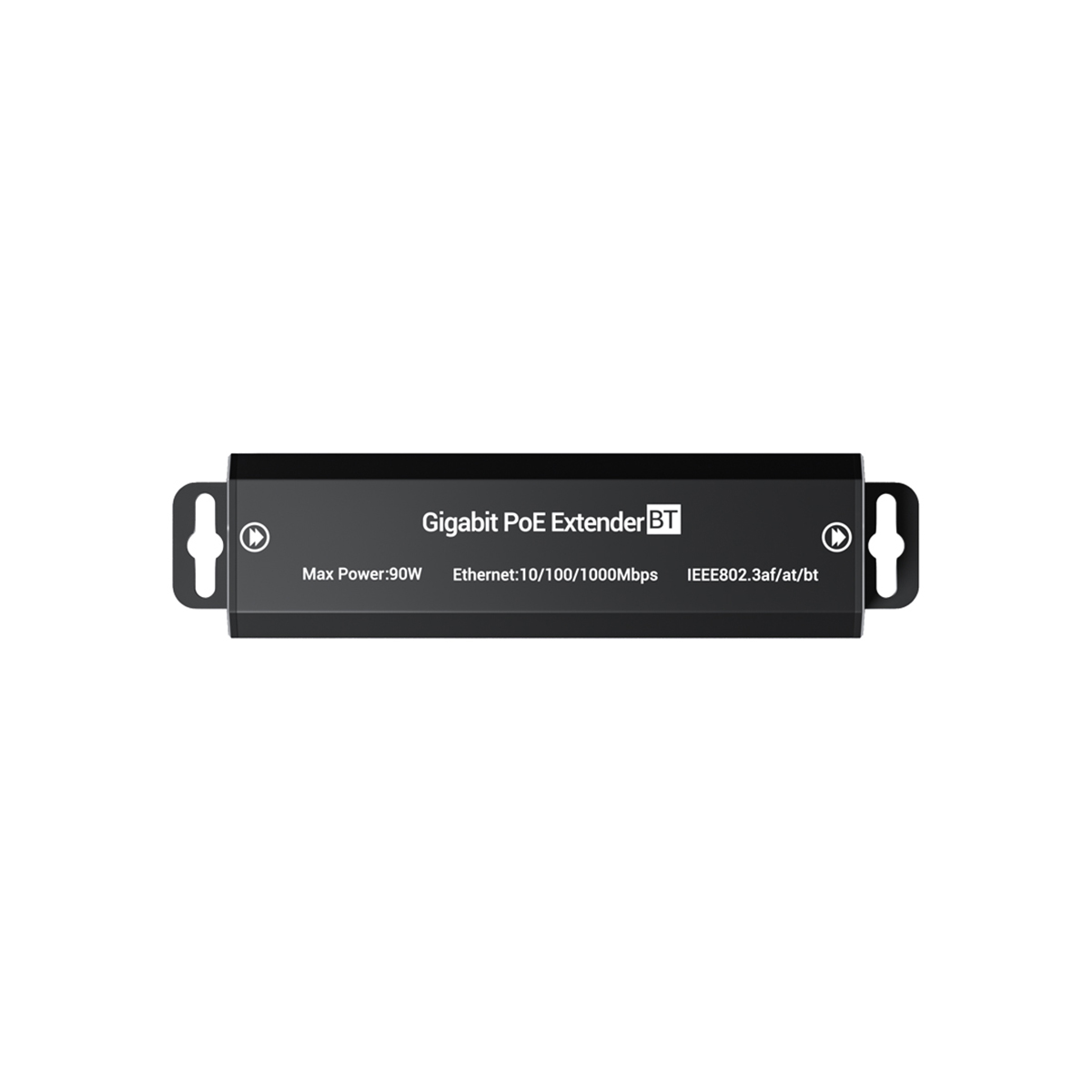

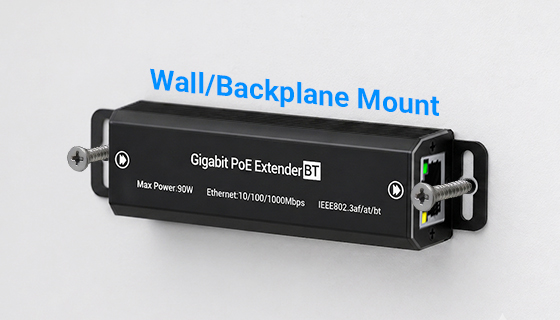

Top-down view of compact industrial 90W PoE repeater detailing the slim profile, and wall mount bracket.

Industrial 90W Gigabit PoE Extender & Repeater | OEM

Renseignez-vous maintenant

An industrial-grade gigabit poe extender and poe repeater delivering up to 90W IEEE 802.3bt input and 85W maximum output to a single high-power endpoint without local AC wiring (-40℃~75℃). Engineered with low internal insertion loss to guarantee up to 75W usable budget after 100 meters, making this poe ethernet repeater an ideal white-label solution for global brand owners and system integrators

Product Highlights

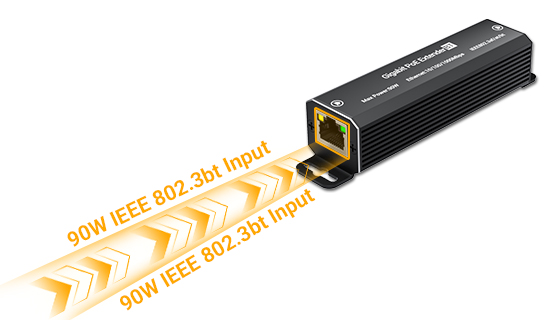

    High-Efficiency 90W Passthrough: Accepts up to 90W IEEE 802.3bt input, supplying a maximum local output of 85W and maintaining 75W guaranteed load power at 100 meters (328 ft).

    Single-Port Longspan PoE Extension: Designed as a heavy-duty poe repeater switch module to extend Gigabit data and high-wattage power beyond the standard 100m Ethernet limit.

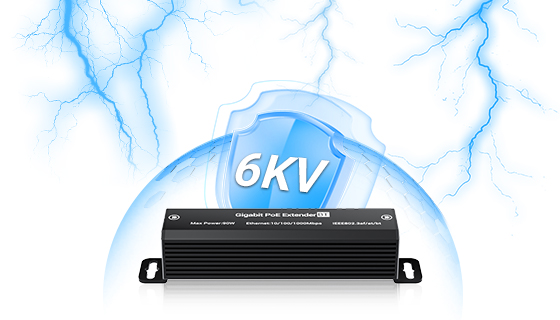

    Industrial Hardening: IP40 aluminum alloy enclosure, fanless passive cooling, 6kV surge protection, and ESD protection (±8kV Contact , ±15kV Air).

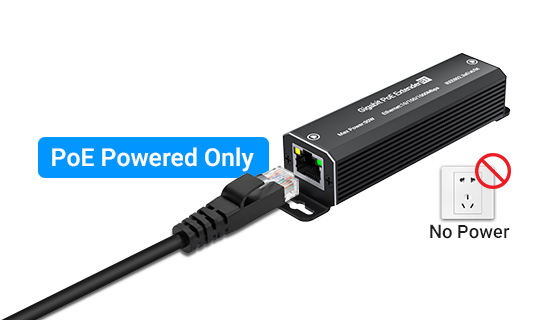

    Plug-and-Play Auto-Sensing: Functions as an inline poe extender switch with auto-sensing IEEE 802.3af/at/bt protocol matching, preventing power-overload damage to legacy network gear.



Product Overview

Deploying high-power outdoor PTZ cameras, Wi-Fi 7 APs, and edge IoT devices often encounters two severe bottlenecks: excessive costs for AC power drops and the standard 100-meter Ethernet cable distance limit. Furthermore, line resistance causes significant voltage drops over extended cable runs, causing high-power PDs to fail under heavy load.

The Benchugroup Industrial 1-Port 90W PoE Repeater completely resolves these field challenges. Acting as an inline poe extender ethernet repeater, it accepts up to 90W IEEE 802.3bt power and efficiently boosts line stability—delivering up to 85W maximum output locally and keeping 75W guaranteed load power at 100 meters.

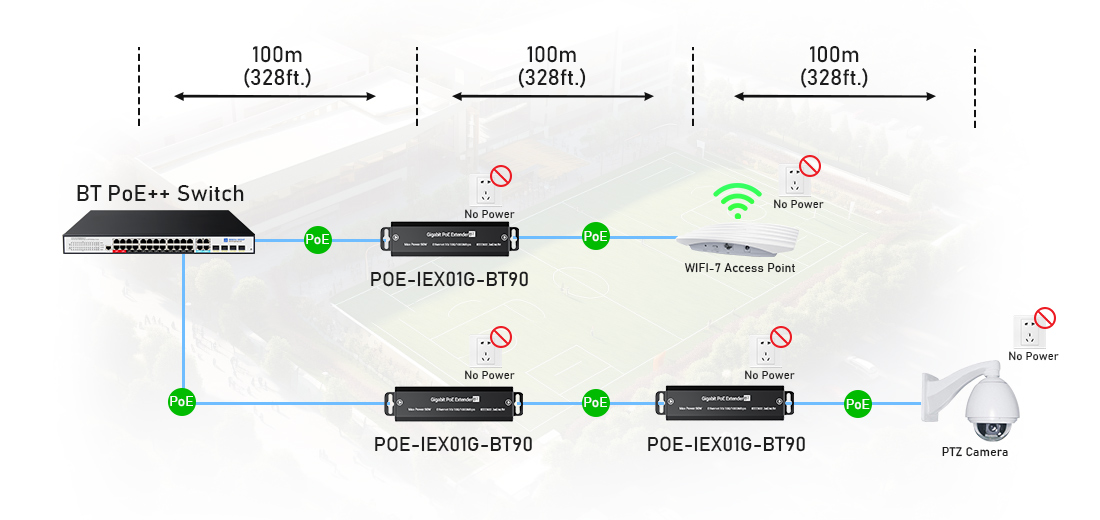

industrial 90w poe repeater switch application in outdoor surveillance Application: Outdoor Perimeter Security & Smart Pole Deployment

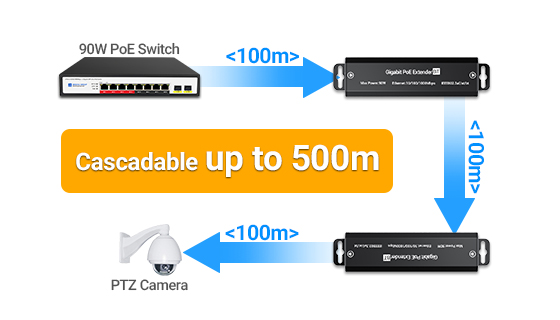

Key Takeaway for SIs & Brand Partners: Whether deployed as a standalone poe repeater or arranged in multi-hop longspan poe daisy chains, this ruggedized IP40 device ensures continuous 24/7 power without sending technicians into the field.
