Managed 24 Port Gigabit Industrial PoE Switch with 8-1Gb SFP combo and 4-10Gb SFP+ Uplink (IES7521-24PGE8GEC4TF-AC)

industrial 24 port PoE switch
24 port PoE industrial switch
24 port PoE industrial ethernet switch
industrial switch

Managed 24 Port Gigabit Industrial PoE Switch with 8-1Gb SFP combo and 4-10Gb SFP+ Uplink (IES7521-24PGE8GEC4TF-AC)

Renseignez-vous maintenant

Designed for IP Camera / Wireless Access Point / industrial automation / IOT

Product Highlights
    • 24 ports 10/100/1000M RJ45 supporting PoE+ to PD device
    • 8 Ports 1.25G SFP to access switch
    • 4 Ports 1G/2.5G/10G SFP+ to core network
    • ERPS(G.8032) STP/FSTP/MSTP for Ring network and Link protection
    • Support Layer 3 static routing RIP/OSPF/VRRP (IPv4 and IPv6)
    • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
    • Include VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with redundant power input
    • Din Rail mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k

24 port gigabit Industrial PoE Switch

Overview



IES7521-24PGE8GFC4TF-AC, Layer 3 Managed 24 Ports Gigabit Industrial PoE+ Switch,with 8-1.25G SFP Combo, with 4-10Gb SFP+ Uplink,24 PoE+ Ports,500W Power Budget

BENCHU GROUP's 24-port industrial PoE switch IES7521-24PGE8GFC4TF-AC is designed to meet the demanding needs of modern networking environments, offering exceptional performance, reliability, and versatility. This switch features 24 Gigabit PoE ports, 8 1Gb SFP slots, and 4 10Gb SFP+ uplink ports, providing high-speed connectivity and robust scalability for critical applications.

With 10Gb uplink capabilities, it ensures lightning-fast data transmission, reducing latency and optimizing bandwidth for high-density networks. This is especially valuable for applications such as IP surveillance, industrial automation, and wireless backhaul systems. The PoE functionality simplifies installations by powering devices like IP cameras, wireless access points, and VoIP phones directly through the network cables, eliminating the need for separate power supplies.

Designed for rugged environments, the IES7521-24PGE8GFC4TF-AC operates reliably under extreme temperatures and harsh conditions, making it ideal for industrial and outdoor deployments. It supports advanced Layer 3 network features, enhancing security, traffic management, and network efficiency.




Physical Port

  • 24-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+
  • 8-1.25GBASE-X mini-GBIC/SFP+ slot combo
  • 4-1G/2.5G/10GBASE-X mini-GBIC/SFP+ slot
  • 1-RJ45 console interface for switch management and setup
  • 1-Reset button for system factory default and reboot
  • 1-USB interface for switch setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limitation
  • PoE Timed startup and shutdown
  • PD classification detection
  • Intelligent PoE features
  • PD alive check
  • PoE schedule
  • PoE extension



Switching

  • Backplane bandwidth 256Gbps，Packet forwarding rate 84Mpps，MAC address 16k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • High- strength Aluminum case
  • Rack mount design
  • 100~260V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -40 to 85 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT



Lightning Protection

  • IEC61000-4-3 (RS):10V/m (80~1000MHz)
  • FCC Part 15/CISPR22 (EN55022):Class B
  • IEC61000-6-2:Common Industrial Standard
  • IEC61000-4-9 (Pulsed magnet field) :1000A/m
  • IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
  • IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
  • IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
  • IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
  • IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
  • IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
  • IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
  • IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV



Mechanical Properties

  • IEC60068-2-6:Anti Vibration
  • IEC60068-2-32:Free Fall
  • IEC60068-2-27:Anti Shock

Layer 3 Features

  • Support Static routing
  • Support RIP
  • Support OSPF
  • Support VRRP



Layer 2 Features

  • Support IEEE 802.1Q VLAN
  • Support MAC VLAN
  • Support Surveillance VLAN
  • Support Voice VLAN
  • Support QinQ VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation (LACP)
  • Supports port mirror
  • Supports Multicast Filtering (IGMP)
  • Supports DHCP
  • Supports ERPS
  • Supports RMON
  • Supports MLD snooping
  • Supports MVR
  • Supports UDLD
  • Supports Quality of Service (Qos)
  • Supports Static routing
  • Supports Port Error Disable
  • Supports Rate Limit
  • Supports Storm Control
  • Supports PoE Managed



Security

  • Support IEEE 802.1x
  • Support RADIUS accounting
  • Support Access Control Lists (ACLs)
  • Support MAC Security
  • Support IP Source Guard prevents IP spoofing attacks
  • Support DoS Attack Prevention
  • Support aaa authentication





Management

  • IPv4 and IPv6 dual stack management
  • Web switch management
  • Console/Telnet Command Line Interface
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • Firmware upload/download via HTTP/TFTP
  • Configuration upload / download through Web interface
  • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED





Features

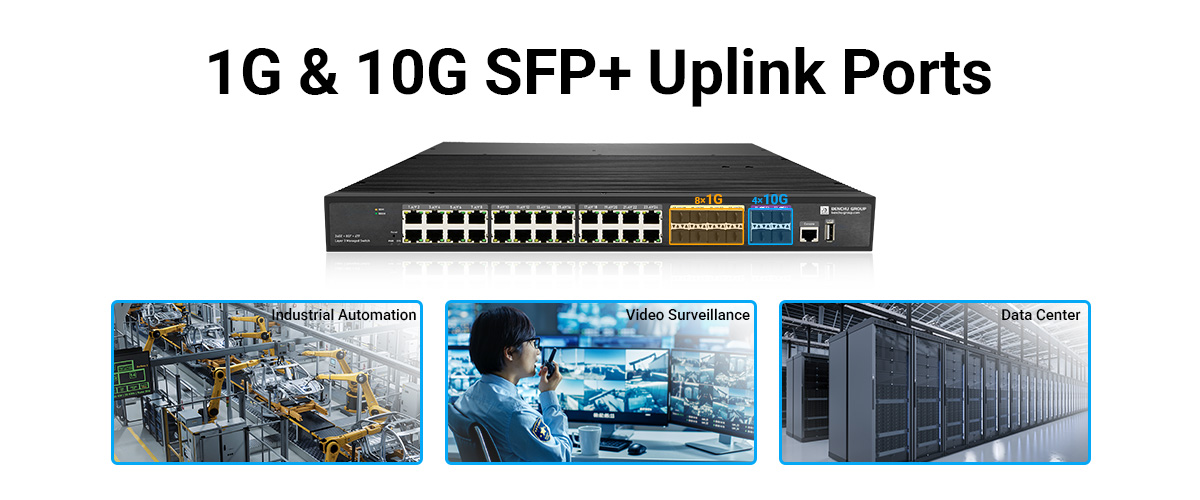

1G SFP and 10G SFP+ Uplink Ports

With 8 1G SFP and 4 10G SFP+ uplinks, the 24 port PoE industrial switch provides versatile connectivity options for extended networks. The 1G SFP ports are ideal for medium-distance links, while the 10G SFP+ uplinks ensure ultra-fast data transmission over long distances. This combination supports bandwidth-intensive applications, ensuring seamless performance in industrial automation, video surveillance, and data centers.



Advanced Layer 3 Management

This 24 port PoE industrial switch offers advanced Layer 3 features, including VLAN, QoS, IGMP Snooping, and Link Aggregation,RIP,OSPF,VRRP. These functions enable precise traffic control, optimize network performance, and enhance security. Administrators can configure and monitor the network efficiently through a user-friendly web interface, CLI, or SNMP, ensuring maximum reliability for mission-critical applications.

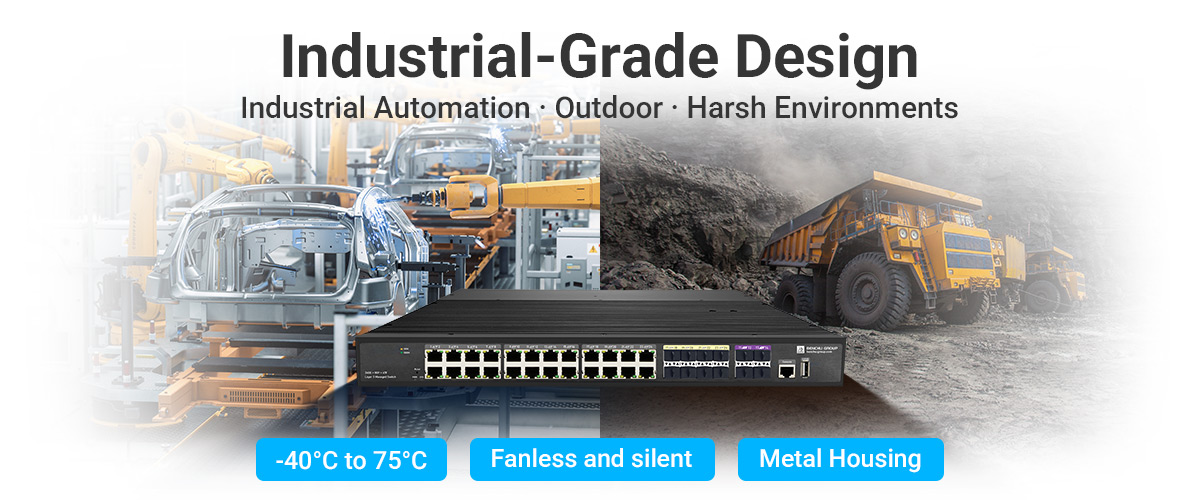

Industrial-Grade Design

Built for rugged environments, this 24 port poe industrial switch operates reliably in extreme conditions, with a wide operating temperature range of -40°C to 75°C. Its fanless design ensures silent operation, and the robust metal housing provides excellent durability. These features make it suitable for industrial automation, outdoor deployments, and harsh environments, ensuring consistent performance under demanding conditions.



Enhanced Network Security

The IES7521-24PGE8GFC4TF-AC includes advanced security features like port security, DHCP snooping, and ACLs to prevent unauthorized access and protect data integrity. These safeguards mitigate cyber threats and ensure secure communication across the network. Its comprehensive security suite is ideal for applications requiring high levels of data protection, such as financial systems or government networks.



High Bandwidth and Low Latency

The integration of 10G uplink ports ensures high-speed data transfer and reduced latency, crucial for applications like 4K video streaming, IoT, and industrial control systems. Its non-blocking architecture ensures all ports operate at full capacity simultaneously, supporting data-intensive workflows and ensuring smooth operation in high-traffic environments.



Easy Installation and Integration

With plug-and-play PoE capability and flexible SFP uplink options, the switch is easy to deploy and integrates seamlessly into existing networks.  The intuitive management interface and smart features reduce setup time, allowing businesses to focus on scaling their operations with minimal effort.





Connectivity Solutions



Layer 3 Managed 24 Port PoE Industrial Switch with 8-1G SFP and 4-10G SFP+ Uplink Connection Solution











Specification



  • Spécifications techniques :

    IE7521-24PGE8GFC4TF-AC

  • Ports cuivre RJ45 10M/100M/1G :

    16

  • Combinaison Gigabit R4J5 et SFP :

    8 RJ45/SFP Combo

  • Ports 1G/2,5G/10G SFP+ (fibre) :

    4

  • Ports PoE/PoE+ :

    24

  • Port de console (pour la configuration) :

    Yes

  • port USB :

    Yes (for firmware and config upload/ download)

  • Bouton de réinitialisation :

    Yes

  • Alimentation via Ethernet :

    *

  • Norme PoE :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Type d'alimentation PoE :

    End-span: 1/2 (+), 3/6 (-)

  • Puissance de sortie PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Spécification de performance :

    *

  • Mémoire tampon de paquets :

    12 Mb

  • Modes de transfert :

    Store-and-forward

  • Bande passante :

    1G+10G

  • Taux de transfert de paquets :

    118Mpps

  • Taille de la base de données d'adresses MAC :

    16K

  • Prise en charge des trames géantes :

    12K

  • Services L2 - VLAN :

    *

  • Marquage VLAN IEEE 802.1Q :

    Yes

  • Marquage QinQ VLAN :

    Yes

  • VLAN basés sur IP :

    Yes

  • VLAN basés sur MAC :

    Yes

  • VLAN basé sur un protocole :

    Yes

  • VLAN voix :

    Yes

  • Mappage VLAN :

    Yes

  • Services L2 - Disponibilité :

    *

  • Contrôle des tempêtes :

    Yes （Broadcast, multicast, unknown unicast）

  • IEEE 802.3ad - LAG (LACP) :

    Yes

  • IEEE 802.3x :

    Yes

  • Anneau (ERPS, conforme à G.8032) :

    Yes, Recovery time < 50ms

  • Protocole Spanning Tree IEEE 802.1D :

    Yes

  • Protocole IEEE 802.1w Rapid Spanning Tree :

    Yes

  • Protocole Spanning Tree multiple IEEE 802.1s :

    Yes

  • Relais DHCP de couche 2 :

    Yes

  • Services L2 - Filtrage multidiffusion :

    Yes

  • Surveillance IGMP (v1, v2 et v3) :

    Yes

  • Prise en charge de la surveillance MLD (v1 et v2) :

    Yes

  • Interrogateur de surveillance IGMP (v2) :

    Yes

  • Interrogateur de surveillance MLD (v1) :

    Yes

  • Enregistrement VLAN multidiffusion (MVR) :

    Yes

  • Services L3 - DHCP :

    *

  • Client DHCP :

    Yes

  • Surveillance DHCP :

    Yes

  • Serveur DHCP :

    Yes

  • Services L3 - Routage :

    *

  • Routage statique IPv4 :

    100

  • Routage statique IPv6 :

    100

  • Routage VLAN :

    Yes

  • RIP V1/V2 :

    Yes

  • OSPFV2 :

    Yes

  • Nombre d'interfaces IP VLAN :

    Yes

  • Routage des politiques :

    Yes

  • VRRP :

    Yes

  • Agrégation de liens :

    *

  • Décalage manuel :

    Yes

  • # de GAL / # de membres dans chaque GAL :

    8 LAGs with max 8 members in each LAG

  • Services de surveillance et de découverte du réseau :

    *

  • 802.1ab LLDP :

    Yes

  • SNMP :

    v1, v2c, v3

  • Groupe RMON 1,2,3,9 :

    Yes

  • Sécurité Internet :

    Yes

  • IEEE 802.1x :

    Yes

  • Comptabilité RAYON :

    Yes

  • Listes de contrôle d'accès (ACL) :

    Yes

  • ACL basées sur IP (IPv4 et IPv6) :

    L2 / L3 / L4

  • ACL basées sur MAC :

    Yes

  • ACL basées sur TCP/UDP :

    Yes

  • Contrôler MAC # entrées statiques :

    48

  • Sécurité basée sur les ports par adresses MAC verrouillées :

    Yes

  • Inspection ARP dynamique :

    Yes

  • Protection contre les DoS :

    Yes

  • Prévention des attaques DoS :

    Yes

  • Protection contre les tempêtes de réseau, DoS :

    Yes

  • Qualité de service (QoS) :

    *

  • Limitation de débit basée sur le port :

    Yes ingress and egress

  • QoS basée sur le port :

    Yes

  • Prise en charge des champs IPv6 :

    Yes

  • QoS DiffServ :

    Yes ingress

  • COS IEEE 802.1p :

    Yes

  • Destination MAC et IP :

    Yes

  • DSCP IPv4 et v6 :

    Yes

  • Basé sur TCP/UDP :

    Yes

  • Round Robin pondéré (WRR) :

    Yes

  • Technologie de file d'attente prioritaire stricte :

    Yes

  • Protocoles réseau IEEE :

    *

  • Protocoles :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Protocoles 2 :

    • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning T

  • Gestion, surveillance et dépannage :

    *

  • Gestion des mots de passe :

    Yes

  • Contrôle d'accès via RADIUS et TACACS+ :

    Yes

  • Gestion IPv6 :

    Yes

  • SNMPv1/v2c/v3 :

    Yes

  • Mise en miroir des ports :

    Yes ingress and egress

  • Mise en miroir de ports plusieurs vers un :

    28

  • Utilitaire de test de câble :

    Yes

  • Accès Web TLS/HTTPS (version) :

    Yes (v1.2)

  • Transferts de fichiers (uploads, téléchargements) :

    TFTP / HTTP

  • Téléchargement/téléchargement HTTP (micrologiciel) :

    Yes

  • Journal Sys (RFC 3164) :

    Yes

  • LED :

    Yes

  • Par port :

    Speed, Link, Activity; PoE in different mode

  • Par appareil :

    Power

  • Spécifications physiques :

    *

  • Dimensions (Largeur * Profondeur * Hauteur) :

    440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)

  • Poids :

    <6.6 kg (11.55 lb)

  • Consommation d'énergie :

    500W (when all ports used, line-rate traffic and max PoE)

  • maximum d'énergie :

    24W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consommation d'énergie au repos :

    12W (all ports link-down standby) (Watts)

  • Ethernet économe en énergie (EEE) :

    Yes (deactivated by default)

  • Ventilateur :

    Fanless

  • Spécifications environnementales :

    *

  • Température de fonctionnement :

    -40° to 85°C (-40° to 185°F)

  • humidité d'exploitation :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de fonctionnement :

    10,000 ft (3,000 m) maximum

  • Température de stockage :

    -40° to 85°C (-40° to 185°F)

  • Humidité de stockage (relative) :

    95% maximum relative humidity, non-condensing

  • Altitude de stockage :

    10,000 ft (3,000 m) maximum

  • Norme exécutive et protection :

    *

  • Protection contre la foudre :

    *

  • CEI61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Partie 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (champ magnétique pulsé) :

    1000A/m

  • IEC61000-4-10 (oscillation amortie) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onde de choc) :

    CM 2.5kV, DM 1kV

  • CEI61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmission en mode commun) :

    30V, 300V, 1s

  • CEI61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmission radiofréquence) :

    10V(150kHz~80MHz)

  • CEI61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (surtension) : câble d'alimentation :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriétés mécaniques :

    *

  • CEI60068-2-6 :

    Anti Vibration

  • CEI60068-2-32 :

    Free Fall

  • CEI60068-2-27 :

    Anti Shock

  • Émissions électromagnétiques et immunité :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Sécurité :

    *

  • Certifications de sécurité :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantie et assistance :

    *

  • Garantie limitée sur le matériel :

    Limited Lifetime*

  • Assistance technique par téléphone et e-mail* :

    Limited Lifetime*

  • Assistance technique par chat en ligne 24h/24 et 7j/7 :

    Limited Lifetime*

  • Contenu du colis :

    *

  • Tous les modèles :

    Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Type d'entreprise :

    Industrial

  • Plus de filtres :

    L3 Managed
Balises chaudes : Managed 24 port Industrial PoE Switch Layer 3 Managed Industrial PoE Switch 24 port industrial Switch Industrial PoE Switch
laisser un message
Si vous êtes intéressé par nos produits et souhaitez en savoir plus, veuillez laisser un message ici, nous vous répondrons dès que possible.
soumettre

laisser un message

laisser un message
Si vous êtes intéressé par nos produits et souhaitez en savoir plus, veuillez laisser un message ici, nous vous répondrons dès que possible.
soumettre

Maison

Des produits

WhatsApp

Contactez-nous
