Managed 8 Port Industrial PoE Switch with 4-10G SFP+ Uplink, IES7511-8PGE4TF-DC

layer 3 industrial poe switch
L3 managed industrial poe switch
L3 rugged POE Switch
Layer 3 DIN Rail POE switch
L3 managed DIN Rail POE switch

Managed 8 Port Industrial PoE Switch with 4-10G SFP+ Uplink, IES7511-8PGE4TF-DC

Renseignez-vous maintenant

BENCHU GROUP's IES7511-8PGE4TF-DC managed 8 port industrial PoE switch with 4 10G SFP+ ports is designed for high-performance networking in demanding environments.

Product Highlights
    • 8 ports 10/100/1000M RJ45 supporting PoE+ to PD device
    • 4 Ports 1G/2.5G/10G SFP+ to core network
    • ERPS(G.8032) STP/FSTP/MSTP for Ring network and Link protection
    • Support Layer 3 static routing RIP/OSPF/VRRP (IPv4 and IPv6)
    • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
    • Include VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with redundant power input
    • Din Rail mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k

Layer 3 Managed PoE Switch

Overview



IES7511-8PGE4TF-DC, Layer 3 Managed 8 Ports Gigabit Industrial PoE Switch,with 4-10Gb SFP+ Uplink,DIN-Rail Mount

BENCHU GROUP's IES7511-8PGE4TF-DC managed 8-port industrial PoE switch with 4 10G SFP+ ports is designed for high-performance networking in demanding environments. Equipped with 8 PoE-capable Gigabit Ethernet ports, it delivers up to 30W per port, supporting devices like IP cameras, wireless access points, and VoIP phones. The 4 10G SFP+ ports offer lightning-fast uplink speeds, ensuring seamless data transmission for large-scale applications.

Built for reliability, this switch operates effectively in harsh industrial settings, with a wide temperature range and robust metal housing for durability. Advanced Layer 2 and Layer 3 management features, including VLAN, QoS, and IGMP snooping, RIP,OSPF,VRRP,optimize network traffic for efficiency and security.

This managed industrial PoE switch is ideal for industries like surveillance, transportation, and industrial automation, where high-speed and reliable data transmission are critical. Its plug-and-play PoE function simplifies device installation, reducing the need for additional power infrastructure and cutting costs.

By integrating this industrial PoE switch, users benefit from enhanced network scalability, streamlined operations, and cost-effective power and data management. With its superior performance and rugged design, it ensures stable, high-speed connectivity for mission-critical applications.



Physical Port

  • 8-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+
  • 4-1G/2.5G/10GBASE-X mini-GBIC/SFP+ slot
  • 1-RJ45 console interface for switch management and setup
  • 1-Reset button for system factory default and reboot
  • 1-USB interface for switch setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  •
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limitation
  • PoE Timed startup and shutdown
  • PD classification detection
  • Intelligent PoE features
  • PD alive check
  • PoE schedule
  • PoE extension



Switching

  • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • IP40 High- strength Aluminum case
  • DIN-rail mount design
  • 48~56V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -40 to 85 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT



Lightning Protection

  • IEC61000-4-3 (RS):10V/m (80~1000MHz)
  • FCC Part 15/CISPR22 (EN55022):Class B
  • IEC61000-6-2:Common Industrial Standard
  • IEC61000-4-9 (Pulsed magnet field) :1000A/m
  • IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
  • IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
  • IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
  • IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
  • IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
  • IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
  • IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
  • IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV



Mechanical Properties

  • IEC60068-2-6:Anti Vibration
  • IEC60068-2-32:Free Fall
  • IEC60068-2-27:Anti Shock

Layer 3 Features

  • Support Static routing
  • Support RIP
  • Support OSPF
  • Support VRRP



Layer 2 Features

  • Support IEEE 802.1Q VLAN
  • Support MAC VLAN
  • Support Surveillance VLAN
  • Support Voice VLAN
  • Support QinQ VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation (LACP)
  • Supports port mirror
  • Supports Multicast Filtering (IGMP)
  • Supports DHCP
  • Supports ERPS
  • Supports RMON
  • Supports MLD snooping
  • Supports MVR
  • Supports UDLD
  • Supports Quality of Service (Qos)
  • Supports Static routing
  • Supports Port Error Disable
  • Supports Rate Limit
  • Supports Storm Control
  • Supports PoE Managed



Security

  • Support IEEE 802.1x
  • Support RADIUS accounting
  • Support Access Control Lists (ACLs)
  • Support MAC Security
  • Support IP Source Guard prevents IP spoofing attacks
  • Support DoS Attack Prevention
  • Support aaa authentication





Management

  • IPv4 and IPv6 dual stack management
  • Web switch management
  • Console/Telnet Command Line Interface
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • Firmware upload/download via HTTP/TFTP
  • Configuration upload / download through Web interface
  • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED





Features

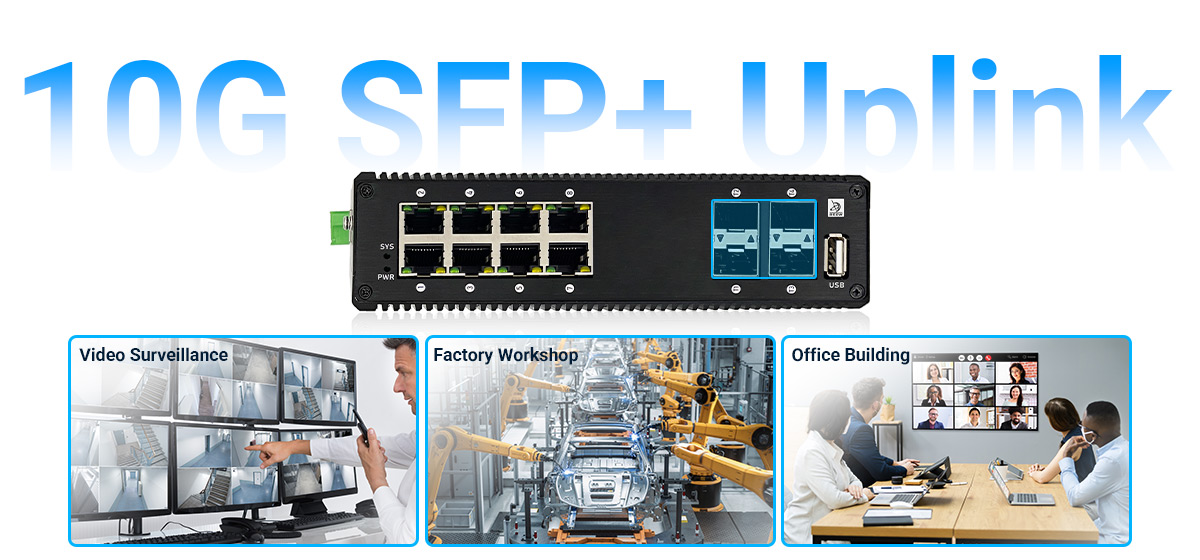

High-Speed 10G SFP+ Uplink Ports

Four 10G SFP+ uplink ports provide ultra-fast data transmission and reduce latency for heavy-traffic industrial applications. These uplinks ensure uninterrupted connections between devices and backbone networks, allowing for superior performance in real-time monitoring or large-scale data transfers. Supporting fiber and copper modules, the uplinks adapt to various deployment needs, ensuring scalability for growing network demands.

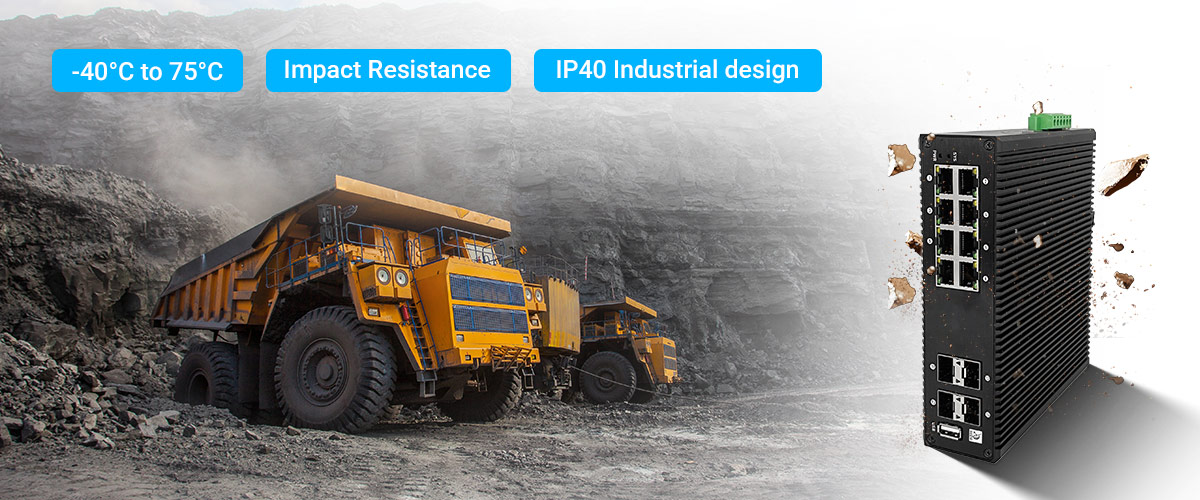

Rugged Industrial Design

The IES7511-8PGE4TF-DC features a robust metal housing and fanless design to operate reliably in harsh environments. It withstands wide temperature ranges (-40°C to 75°C) and is resistant to vibration and shock, making it suitable for demanding industrial applications such as transportation, mining, and factory automation. Its durable construction minimizes downtime, ensuring consistent network availability even in extreme conditions.



Layer 2/Layer 3 Network Management

Advanced network management capabilities include VLAN, QoS, and IGMP snooping, enabling optimized traffic flow and enhanced network security. Layer 3 static routing further simplifies network segmentation, ensuring efficient resource allocation. These features give users precise control over network configuration, making the switch a flexible and intelligent choice for industrial deployments.



Enhanced Network Security

This 8 port industrial PoE switch offers a variety of security protocols, including port security, DHCP snooping, and 802.1X authentication, to safeguard network infrastructure. By protecting against unauthorized access and potential cyber threats, it ensures safe and secure industrial operations. These features provide peace of mind for users managing critical data in high-risk environments.



Wide Voltage Input

Supporting a wide voltage input range of 48–56V DC, the switch accommodates diverse power systems. This flexibility ensures compatibility with industrial setups and enhances operational resilience. Users benefit from reduced power constraints and reliable connectivity even in environments with fluctuating or unconventional power supplies.



Intelligent PoE Management

The industrial PoE switch offers smart PoE management, including power scheduling and prioritization. It ensures optimal power allocation to essential devices, reducing power waste and preventing overloads. This feature enhances energy efficiency while maximizing device uptime, particularly for mission-critical applications like surveillance and automation.





Connectivity Solutions



Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution









Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution











Specification



  • Spécifications techniques :

    IE7511-8PGE4GE4TF-DC

  • Ports cuivre RJ45 10M/100M/1G :

    12

  • Ports 1G/2,5G/10G SFP+ (fibre) :

    4

  • Ports PoE/PoE+ :

    8

  • Port de console (pour la configuration) :

    Yes

  • port USB :

    Yes (for firmware and config upload/ download)

  • Bouton de réinitialisation :

    Yes

  • Alimentation via Ethernet :

    *

  • Norme PoE :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Type d'alimentation PoE :

    End-span: 1/2 (+), 3/6 (-)

  • Puissance de sortie PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Budget de puissance PoE :

    120 Watts

  • Spécification de performance :

    *

  • Mémoire tampon de paquets :

    12 Mb

  • Modes de transfert :

    Store-and-forward

  • Bande passante :

    1G+10G

  • Taux de transfert de paquets :

    77.38Mpps (64 byte packet size)

  • Taille de la base de données d'adresses MAC :

    16K (48-bit MAC ad-dresses)

  • Prise en charge des trames géantes :

    12K

  • Temps moyen entre les pannes :

    160,213 hours (MTBF) @ 25°C

  • Latence en cuivre de 100 M :

    8.314µs; 8.352µs; 8.451µs

  • Latence du cuivre 1G :

    3.514µs; 3.545µs; 3.628µs

  • Latence de la fibre 1G :

    2.980µs; 3.101µs; 3.179µs

  • Latence de la fibre 2,5G :

    2.631µs; 2.752µs; 2.811µs

  • Latence de la fibre 10G :

    2.330µs; 2.561µs; 2.7129µs

  • Services L2 - VLAN :

    *

  • Marquage VLAN IEEE 802.1Q :

    Yes

  • Marquage QinQ VLAN :

    Yes

  • VLAN basés sur IP :

    Yes

  • VLAN basés sur MAC :

    Yes

  • VLAN basé sur un protocole :

    Yes

  • VLAN voix :

    Yes

  • Mappage VLAN :

    Yes

  • Services L2 - Disponibilité :

    *

  • Contrôle des tempêtes :

    Yes （Broadcast, multicast, unknown unicast）

  • IEEE 802.3ad - LAG (LACP) :

    Yes

  • IEEE 802.3x :

    Yes

  • Anneau (ERPS, conforme à G.8032) :

    Yes, Recovery time < 50ms

  • Protocole Spanning Tree IEEE 802.1D :

    Yes

  • Protocole IEEE 802.1w Rapid Spanning Tree :

    Yes

  • Protocole Spanning Tree multiple IEEE 802.1s :

    Yes

  • Relais DHCP de couche 2 :

    Yes

  • Services L2 - Filtrage multidiffusion :

    Yes

  • Surveillance IGMP (v1, v2 et v3) :

    Yes

  • Prise en charge de la surveillance MLD (v1 et v2) :

    Yes

  • Interrogateur de surveillance IGMP (v2) :

    Yes

  • Interrogateur de surveillance MLD (v1) :

    Yes

  • Enregistrement VLAN multidiffusion (MVR) :

    Yes

  • Services L3 - DHCP :

    *

  • Client DHCP :

    Yes

  • Surveillance DHCP :

    Yes

  • Serveur DHCP :

    Yes

  • Services L3 - Routage :

    *

  • Routage statique IPv4 :

    100

  • Routage statique IPv6 :

    100

  • Routage VLAN :

    Yes

  • RIP V1/V2 :

    Yes

  • OSPFV2 :

    Yes

  • Nombre d'interfaces IP VLAN :

    Yes

  • Routage des politiques :

    Yes

  • VRRP :

    Yes

  • Agrégation de liens :

    *

  • Décalage manuel :

    Yes

  • # de GAL / # de membres dans chaque GAL :

    8 LAGs with max 8 members in each LAG

  • Services de surveillance et de découverte du réseau :

    *

  • 802.1ab LLDP :

    Yes

  • SNMP :

    v1, v2c, v3

  • Groupe RMON 1,2,3,9 :

    Yes

  • Sécurité Internet :

    Yes

  • IEEE 802.1x :

    Yes

  • Comptabilité RAYON :

    Yes

  • Listes de contrôle d'accès (ACL) :

    Yes

  • ACL basées sur IP (IPv4 et IPv6) :

    L2 / L3 / L4

  • ACL basées sur MAC :

    Yes

  • ACL basées sur TCP/UDP :

    Yes

  • Contrôler MAC # entrées statiques :

    48

  • Sécurité basée sur les ports par adresses MAC verrouillées :

    Yes

  • Inspection ARP dynamique :

    Yes

  • Protection contre les DoS :

    Yes

  • Prévention des attaques DoS :

    Yes

  • Protection contre les tempêtes de réseau, DoS :

    Yes

  • Qualité de service (QoS) :

    *

  • Limitation de débit basée sur le port :

    Yes ingress and egress

  • QoS basée sur le port :

    Yes

  • Prise en charge des champs IPv6 :

    Yes

  • QoS DiffServ :

    Yes ingress

  • COS IEEE 802.1p :

    Yes

  • Destination MAC et IP :

    Yes

  • DSCP IPv4 et v6 :

    Yes

  • Basé sur TCP/UDP :

    Yes

  • Round Robin pondéré (WRR) :

    Yes

  • Technologie de file d'attente prioritaire stricte :

    Yes

  • Protocoles réseau IEEE :

    *

  • Protocoles :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Protocoles 2 :

    • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning T

  • Gestion, surveillance et dépannage :

    *

  • Gestion des mots de passe :

    Yes

  • Contrôle d'accès via RADIUS et TACACS+ :

    Yes

  • Gestion IPv6 :

    Yes

  • SNMPv1/v2c/v3 :

    Yes

  • Mise en miroir des ports :

    Yes ingress and egress

  • Mise en miroir de ports plusieurs vers un :

    16

  • Utilitaire de test de câble :

    Yes

  • Accès Web TLS/HTTPS (version) :

    Yes (v1.2)

  • Transferts de fichiers (uploads, téléchargements) :

    TFTP / HTTP

  • Téléchargement/téléchargement HTTP (micrologiciel) :

    Yes

  • Journal Sys (RFC 3164) :

    Yes

  • LED :

    Yes

  • Par port :

    Speed, Link, Activity; PoE in different mode

  • Par appareil :

    Power

  • Spécifications physiques :

    *

  • Dimensions (Largeur * Profondeur * Hauteur) :

    170 x 148 x 48 mm (6.69 x 5.83 x 1.89 in)

  • Poids :

    1.2 kg (2.65 lb)

  • Protection de coque :

    P40 high-strength aluminum case

  • Exigences d'alimentation :

    DC 48~56V, redundant power with reverse polarity protection

  • Consommation d'énergie :

    120W

  • maximum d'énergie :

    12W

  • Consommation d'énergie au repos :

    9W

  • Ethernet économe en énergie (EEE) :

    Yes (deactivated by default)

  • Ventilateur :

    Fanless

  • Spécifications environnementales :

    *

  • Température de fonctionnement :

    -40° to 85°C (-40° to 185°F)

  • humidité d'exploitation :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de fonctionnement :

    10,000 ft (3,000 m) maximum

  • Température de stockage :

    -40° to 85°C (-40° to 185°F)

  • Humidité de stockage (relative) :

    95% maximum relative humidity, non-condensing

  • Altitude de stockage :

    10,000 ft (3,000 m) maximum

  • Norme exécutive et protection :

    *

  • Protection contre la foudre :

    *

  • CEI61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Partie 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (champ magnétique pulsé) :

    1000A/m

  • IEC61000-4-10 (oscillation amortie) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onde de choc) :

    CM 2.5kV, DM 1kV

  • CEI61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmission en mode commun) :

    30V, 300V, 1s

  • CEI61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmission radiofréquence) :

    10V(150kHz~80MHz)

  • CEI61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (surtension) : câble d'alimentation :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriétés mécaniques :

    *

  • CEI60068-2-6 :

    Anti Vibration

  • CEI60068-2-32 :

    Free Fall

  • CEI60068-2-27 :

    Anti Shock

  • Émissions électromagnétiques et immunité :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Sécurité :

    *

  • Certifications de sécurité :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantie et assistance :

    *

  • Garantie limitée sur le matériel :

    Limited Lifetime*

  • Assistance technique par téléphone et e-mail* :

    Limited Lifetime*

  • Assistance technique par chat en ligne 24h/24 et 7j/7 :

    Limited Lifetime*

  • Contenu du colis :

    *

  • Tous les modèles :

    Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Type d'entreprise :

    Industrial

  • Plus de filtres :

    L3 Managed
Balises chaudes : Commutateur PoE industriel de couche 3 Switch PoE industriel géré L3 Commutateur POE robuste L3 Commutateur PoE industriel 10G SFP+ Commutateur POE sur rail DIN administrable L3 Commutateur industriel couche 3, 8 ports PoE
laisser un message
Si vous êtes intéressé par nos produits et souhaitez en savoir plus, veuillez laisser un message ici, nous vous répondrons dès que possible.
soumettre

laisser un message

laisser un message
Si vous êtes intéressé par nos produits et souhaitez en savoir plus, veuillez laisser un message ici, nous vous répondrons dès que possible.
soumettre

Maison

Des produits

WhatsApp

Contactez-nous
