Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24

Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24 - Benchu Group
Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24 - Benchu Group

Direct-Plug Active PoE to 24V Passive PoE Converter | IEEE 802.3af/at 48V to 24V Passive PoE Adapter | PSE202-ACP24

Get Editable Specs & Price List →

Convert standard IEEE 802.3af/at active PoE (48V–56V) to 24V passive PoE. Direct male RJ45 plug connects into end devices without extra patch cables.

Product Highlights

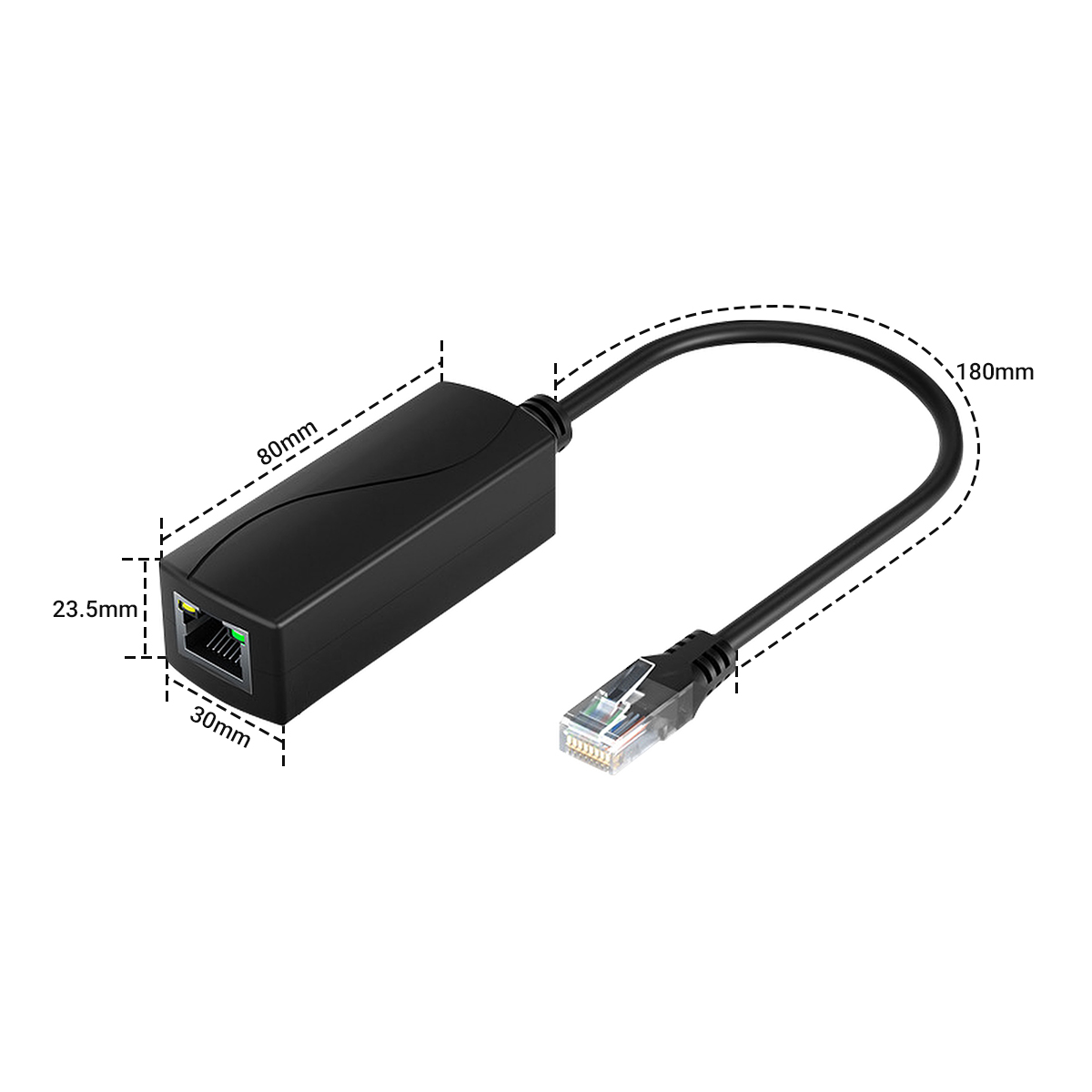

    Direct Device-Mount Design: Integrated RJ45 Male Plug connects directly into the end device’s network port—eliminating extra patch cords.

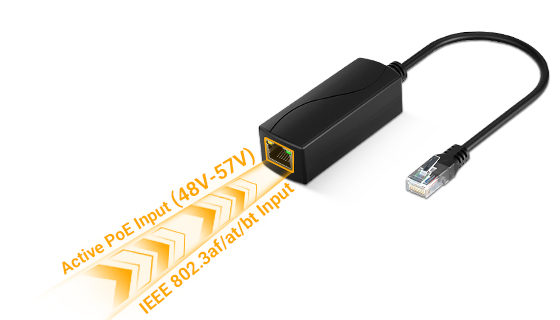

    Active IEEE 802.3af/at Input: Seamlessly accepts standard 48V–56V PoE input from any Managed/Unmanaged PoE Switch or Injector.

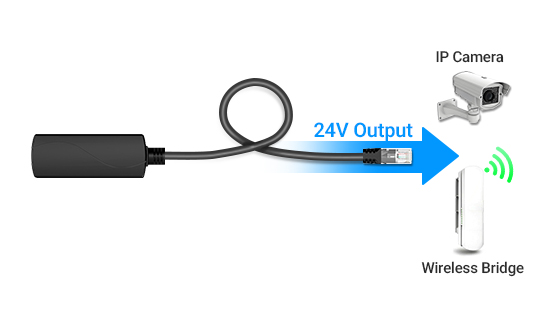

    Regulated 24V DC Passive Output: Delivers steady 24V DC / 1A (24W Max) passive PoE over Mode B (Pins 4,5+ / 7,8-) for wireless CPEs and APs.

    10/100/1000M Gigabit Data Passthrough: Full Gigabit wire-speed transmission with low latency, ideal for high-bandwidth wireless backhaul.

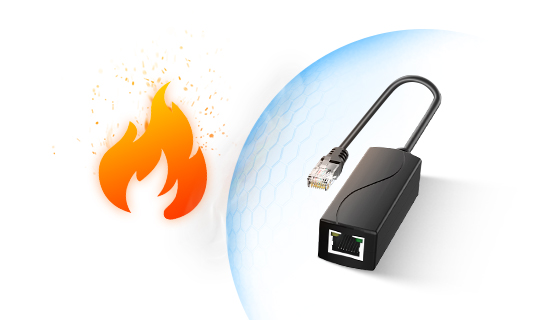

    Compact ABS Molded Housing: Lightweight, flame-retardant ABS enclosure designed for space-constrained junction boxes or direct AP mounting.

    Plug-and-Play Installation: Hardware-based voltage step-down; requires no software setup.

Direct Device-Mount Active to Passive PoE Converter | 802.3af/at to 24V Gigabit Plug-and-Play Adapter

Direct Attachment to Terminal Devices—Eliminating Extra Patch Cords for Space-Saving 24V Step-Down

The PSE202-ACP24 Direct Device-Mount Active to 24V Passive PoE Converter delivers an innovative, direct-plug solution for integrating 24V passive PoE hardware—such as Ubiquiti airMAX, MikroTik RouterBOARDs, outdoor CPEs, and access control terminals—into standard IEEE 802.3af/at (48V–56V) active network switch infrastructures. Featuring a standard RJ45 female input port and an integrated male RJ45 output plug, this compact converter connects directly into the Ethernet interface of the end device. By eliminating the need for an additional patch cord between the converter and terminal device, the PSE202-ACP24 reduces field connection points, lowers material inventory costs, and simplifies cabinet wiring. Built in a compact ABS molded housing, it receives standard 48V active PoE transmission over network cables up to 100 meters, stepping down to regulated 24V DC / 1A passive output locally at full Gigabit wire speed.

Target Application Scenarios

Designed specifically for edge network devices requiring 24V passive power input in commercial and industrial projects:

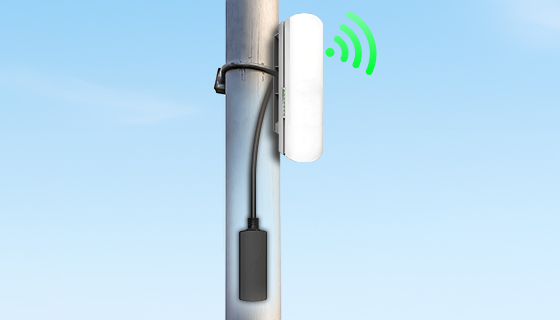

Outdoor Wireless CPEs & PtP Bridges

Directly powers 24V outdoor wireless CPEs, point-to-point bridges, and sector APs (such as Ubiquiti airMAX, Bullet, UniFi APs, and MikroTik RouterBOARDs) directly from standard 48V PoE switches without extra patch cables or local AC outlets.

Access Control & Door Intercom Systems

Ideal for powering 24V RFID door controllers, biometric access panels, and SIP video intercom terminals installed in shallow gang boxes, plugging directly into the device's rear network port to save space.

Industrial IP Surveillance & IoT Sensors

Provides steady 24V PoE power to specialized industrial IP cameras, PTZ controllers, and IoT sensor gateways mounted inside tight outdoor junction boxes or pole-mount enclosures.

Key Features & Engineering Advantages

Comprehensive technical capabilities designed for seamless power conversion and high-reliability edge deployment.

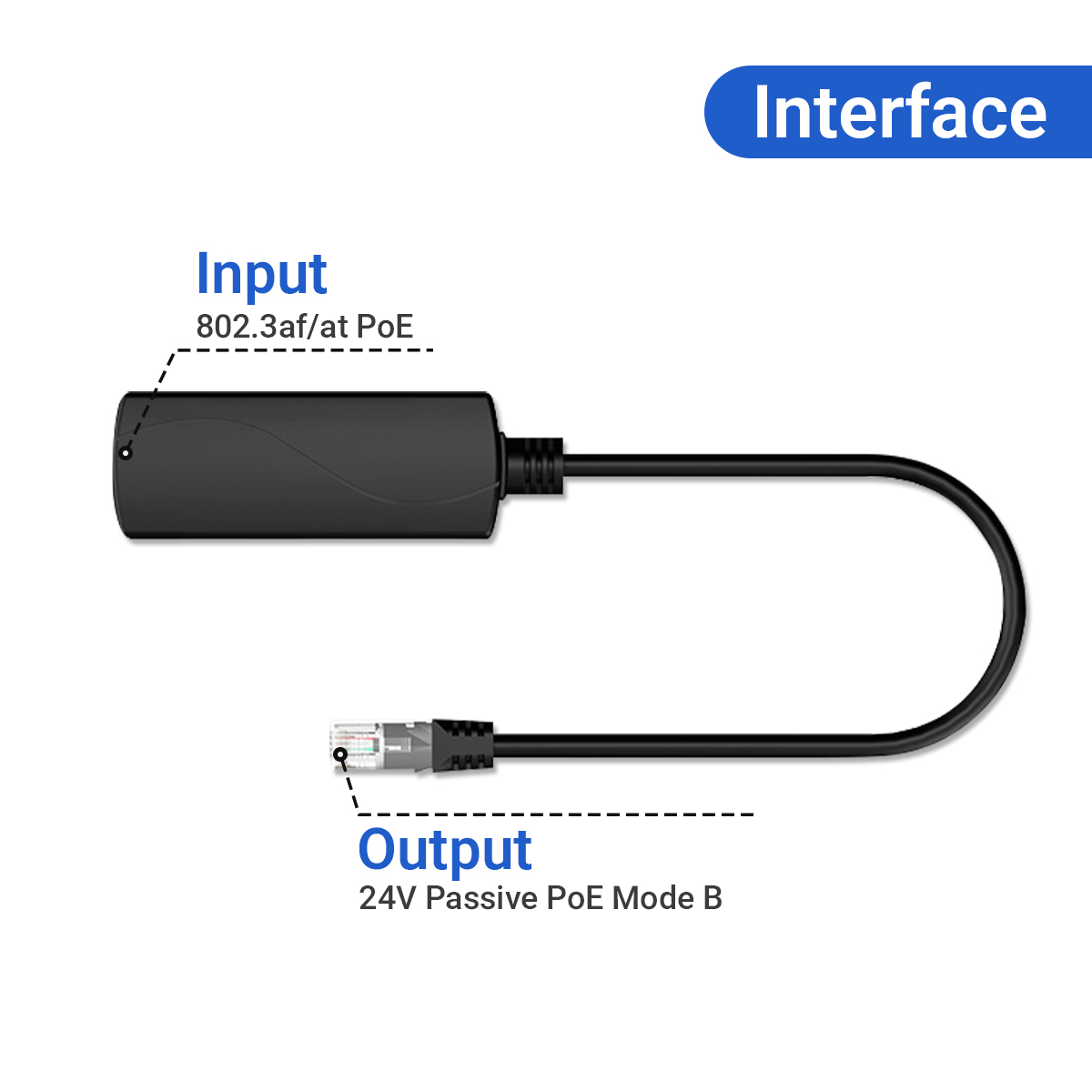

Direct Device-Mount Design (Patch-Cord Free)

Features a standard RJ45 female input port and an integrated male RJ45 output connector. Plugs directly into the network port of terminal CPEs or access control devices, completely eliminating the need for an extra intermediate patch cable and reducing cable clutter in tight enclosures.

IEEE 802.3af/at Active Detection to 24V Regulated Output

Fully compliant with IEEE 802.3af/at standards, handshake-negotiating with active 48V–56V PoE switches before stepping power down to a stable, regulated 24V DC (up to 1A / 24W) passive PoE output, ensuring safe and reliable power delivery.

10/100/1000Mbps Gigabit Line-Rate Throughput

Supports full 10/100/1000Mbps auto-negotiation on all 8 wire pairs. Delivers uninterrupted Gigabit bandwidth without latency or packet drop, ideal for high-speed wireless backhauls and high-definition video surveillance streams.

Extended 100-Meter Cabling Reach

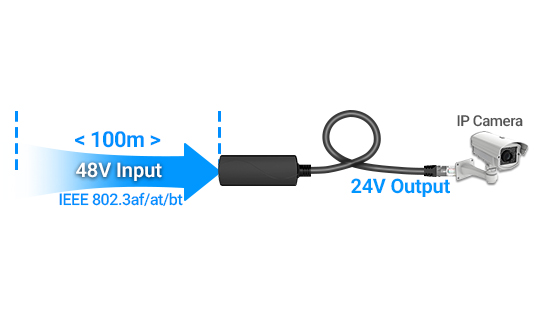

Leverages 48V high-voltage power transmission over standard Cat5e/Cat6 Ethernet cables up to 100 meters (328 ft) to eliminate line loss and voltage drops, converting locally at the device terminal for max deployment flexibility.

Integrated Electrical Circuit Protection

Equipped with short-circuit, over-current, and over-voltage protection mechanisms. Prevents transient power surges or wiring faults on the network line from damaging expensive connected terminal hardware.

Compact Plastic Enclosure & Plug-and-Play

Encased in a lightweight, compact ABS molded housing designed to fit into narrow outdoor junction boxes or pole-mount AP backboxes. Pure hardware conversion requiring zero software setup or configuration.

Active PoE to 24V Passive PoE Converter Connectivity Solutions



Bridge standard 48V–56V active PoE networks with 24V passive outdoor CPEs and wireless bridges seamlessly using the PSE200-ACP24 step-down converter.

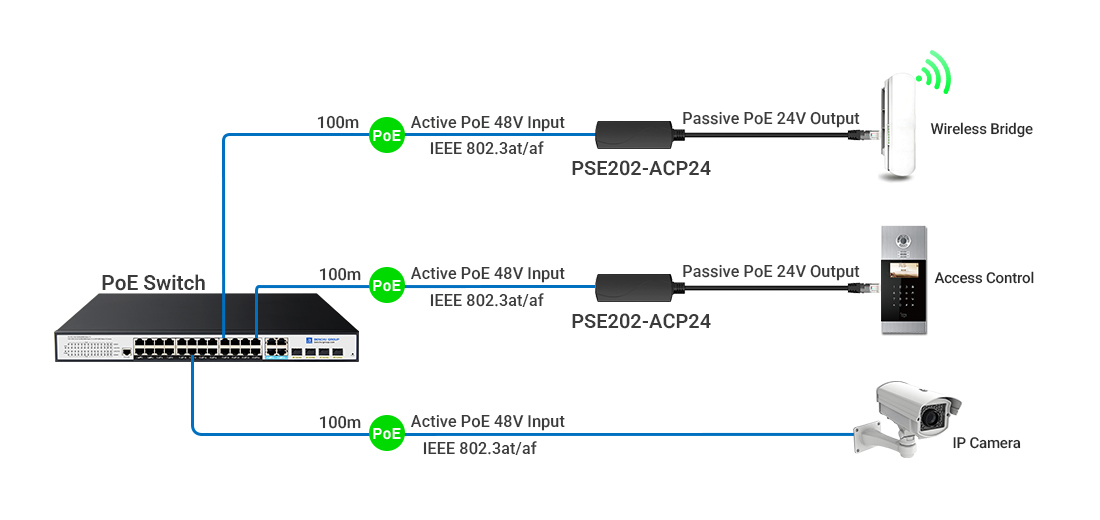

Topology diagram showing standard IEEE 802.3af/at active PoE switch connecting to PSE200-ACP24 in a weather-protected box to power a 24V outdoor wireless bridge.

Typical Application Scenarios

  • 1. Standard Active Switch to 24V Wireless Bridge Conversion Safely connect 24V passive wireless CPEs or point-to-point (PTP) bridges to an enterprise IEEE 802.3af/at active PoE switch. The PSE200-ACP24 negotiates power safely via active 802.3af/at handshake and steps down the voltage to a regulated 24V output (Mode B: Pins 4,5+ / 7,8-), protecting legacy 24V wireless gear from high-voltage damage while maintaining full Gigabit backhaul.
  • 2. Protected Outdoor Cabinet & Enclosure Deployment Because the non-waterproof PoE input port cannot be exposed directly to open rainfall, the unit is intended for placement inside outdoor waterproof junction boxes, equipment cabinets, or sheltered eaves. Its output side features a dedicated waterproof connector to ensure a sealed connection for the downstream cable extending out to remote wireless APs.
  • 3. Extended Operating Temperature Resistance (-30°C to +75°C) Powered entirely via the incoming Ethernet bus line with zero external AC power required, the converter withstands harsh environmental temperatures ranging from -30°C up to +75°C inside outdoor enclosures, making it ideal for year-round operation across unheated industrial sites and extreme weather conditions.

Technical Specifications

Hardware Parameter Details / Specification Limits
Product Model PSE200-ACP24
Equipment Type Active PoE to Passive PoE Converter with Weatherproof Output Joint (48V to 24V Converter)
Upstream Input Port 1 x 10/100/1000Mbps RJ45 Port, Supports IEEE 802.3af/at Active PoE Input (48V–56V; Non-Waterproof)
Downstream Output Port 1 x 10/100/1000Mbps RJ45 Port, Regulated 24V Passive PoE Output (Mode B: Pins 4,5+ / 7,8-; Integrated Waterproof Connector)
Data Rate & Processing 10/100/1000Mbps Full Gigabit Passthrough (Non-blocking wire-speed hardware forwarding)
PoE Handshake Recognition Standard Active Hardware Handshake (Performs detection before requesting power from PSE switch)
Local Power Requirement None Required (100% powered directly via Ethernet bus cable; zero external AC wiring)
Weather Protection & Installation Note Output Side: Waterproof Joint; Input Side: Non-Waterproof (Requires installation inside an outdoor junction box/cabinet; cannot be fully exposed directly to rain)
Enclosure Material High-Impact Flame-Retardant ABS Plastic Outer Casing
Surge & ESD Protection Integrated TVS Surge Protection Clamp Circuitry & 4KV ESD Immunity
Management Type Unmanaged Plug-and-Play (Inline hardware converting, zero software configuration)
Climatic Operational Limits Operating Temperature: -30°C to +75°C (-22°F to 167°F); Storage Temp: -40°C to 85°C; Humidity: 5% ~ 95% non-condensing

Frequently Asked Questions (FAQ)



Solving Compatibility Issues Between 802.3af/at Active PoE Switches & 24V Passive Devices

Q1: Why won't my standard 802.3af/at PoE switch power a 24V passive CPE or wireless bridge?

Standard IEEE 802.3af/at PoE switches require an active 48V hardware handshake before supplying power. Because 24V passive devices (such as Ubiquiti, MikroTik, or Cambium wireless APs) lack this active handshake circuit, the switch detects no valid signature and refuses to output power, resulting in no boot-up. The PSE200-ACP24 adapter completes the active handshake with the switch and steps down the voltage to supply regulated 24V passive PoE seamlessly.

Q2: Is the PSE200-ACP24 converter compatible with Ubiquiti airMAX, MikroTik, and 24V IP cameras?

Yes, the PSE200-ACP24 is fully compatible with all legacy 24V passive PoE terminals requiring Mode B (Pins 4,5+ / 7,8-) power delivery up to 12W–24W. It works seamlessly with Ubiquiti airMAX (NanoStation, Rocket, Bullet), MikroTik RouterBOARDs, outdoor Wi-Fi CPEs, and 24V access control terminals, allowing you to manage all devices centrally using a standard 48V/56V active PoE switch.

Q3: Does this 48V to 24V PoE converter support 1000Mbps Gigabit data speeds and Mode B pinouts?

Yes. The PSE200-ACP24 supports full-duplex 10/100/1000Mbps Gigabit Ethernet pass-through across all 4 pairs (1/2, 3/6, 4/5, 7/8). Power is output via standard Passive PoE Mode B (Pins 4,5 Positive / Pins 7,8 Negative). It ensures high-bandwidth throughput without signal degradation, latency, or packet loss for remote HD cameras and high-speed wireless bridges.

Q4: How should the PSE200-ACP24 be installed for outdoor wireless bridge deployment?

The PSE200-ACP24 features a waterproof gland connector on its 24V PoE output side, designed to connect directly to outdoor CPE cables. However, since its 48V RJ45 input jack is non-waterproof, the converter main unit should be placed inside an IP66/IP67 outdoor junction box or under sheltered eaves to protect against direct rainfall and water ingress.

Q5: Can network distributors request custom branding, modified pinouts, or OEM/ODM packaging?

Yes. As a direct OEM/ODM network manufacturer in Shenzhen, China, we offer complete white-label customization for global distributors and system integrators. Options include custom housing colors, laser logo printing, bespoke cable lengths, Mode A/B pinout adjustments, and full OEM packaging. The board layout is fully certified for CE, FCC, and RoHS compliance.

Resource Download Center



Access official technical datasheets, pinout specs, and mechanical dimension diagrams for PSE200-ACP24 engineering planning.


PDF



Product Technical Datasheet (PDF)

Includes complete technical specifications, IEEE 802.3af/at active handshake parameters, 24V passive PoE Mode B (Pins 4,5+ / 7,8-) pinout definition, 10/100/1000Mbps Gigabit data pass-through details, mechanical dimensions, and international compliance certifications (CE/FCC/RoHS) for Model: PSE200-ACP24.

📥 Download Technical Datasheet

Related Active to Passive PoE Converters & Selection Guide

Models & Features
Standard Active PoE to 24V Passive PoE Converter
PSE200-ACP24
Dual Female RJ45 Ports
Active PoE to 24V Passive Direct Device-Mount Converter
PSE202-ACP24
RJ45 Male Output Dongle
Switch-Side Active PoE to 24V Expansion Adapter
PSE204-ACP24
RJ45 Male Input Adapter
Form Factor & Connector Type Dual RJ45 Female Ports (In/Out) RJ45 Female Input & Integrated RJ45 Male Output Plug Integrated RJ45 Male Input Plug & RJ45 Female Output
Deployment Position Midspan inline / On-site enclosure Directly plugged into end device RJ45 port Directly plugged into Standard PoE Switch port
Key Advantage Standard dual female ports for flexible network patching Eliminates extra patch cords at device end; ultra-compact Converts standard PoE switch port to 24V passive instantly; simplifies rack wiring
Input Power Standard IEEE 802.3af/at Active (48V–56V) IEEE 802.3af/at Active (48V–56V) IEEE 802.3af/at Active (48V–56V)
Output Power & Pinout 24V DC Passive / Mode B (Pins 4,5+ / 7,8-) 24V DC Passive / Mode B (Pins 4,5+ / 7,8-) 24V DC Passive / Mode B (Pins 4,5+ / 7,8-)
Ethernet Speed 10/100/1000 Mbps Gigabit 10/100/1000 Mbps Gigabit 10/100/1000 Mbps Gigabit
Housing / Enclosure Compact ABS Molded Housing Compact ABS Molded Housing Compact ABS Molded Housing
Operating Temp -20°C to +60°C -20°C to +60°C -20°C to +60°C
Action Current Product View Details View Details
Verified Industrial PoE Hardware OEM/ODM Supplier

Active IEEE 802.3af/at to 24V Passive PoE Converter Manufacturer

As a direct B2B manufacturer in Shenzhen, China, we specialize in high-efficiency PoE power conversion hardware, industrial PoE extenders, and custom active-to-passive PoE adapters. Our products seamlessly integrate 48V–56V standard PoE networks with 24V passive wireless APs, MikroTik, Ubiquiti, and IP surveillance systems while complying with international standards (CE, FCC, RoHS).

Custom OEM / ODM Capabilities for PoE Converters & Extenders

✔ Flexible Form Factors (Direct Dongle / Dual Port ABS Housing)
✔ Custom Voltage Output (12V / 24V / 48V Passive)
✔ Private Labeling, Logo Printing & Custom Packaging
✔ Full Technical Compliance (CE / FCC / RoHS Certified)
✔ Wholesale B2B Direct Supply & Fast Engineering Samples

Start Your OEM/Wholesale Project

Looking for specialized PoE conversion solutions, custom pinouts, or bulk supply for telecom deployment? Connect directly with our engineering team for immediate quotes and evaluation samples.

📝
Submit Your Inquiry Below Scroll down to the RFQ form to submit your input/output specs, connector preferences, and target order quantity.
📨
Direct Engineering Contact Send project network diagrams or custom OEM/ODM requests directly to our technical sales engineering department: harry@benchu-group.com

⚡ Factory Direct Support: Guaranteed Response Within 24 Hours

Scroll Down to Request a Quote ↓
Get Custom Quote
Send requirements below. Our technical sales team will reply with tailored pricing within 24 hours.
