Key Product Features & Technical Advantages

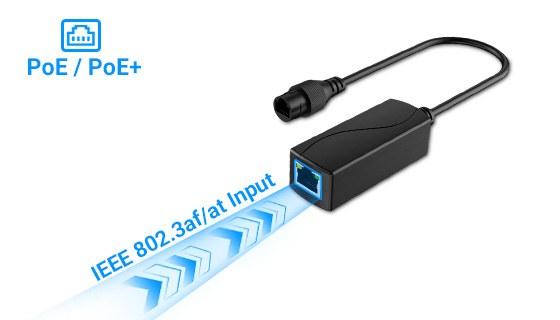

IEEE 802.3af/at Input
Fully compatible with standard IEEE 802.3af/at active PoE switches, performing precise hardware handshake recognition before receiving 48V–56V power safely.

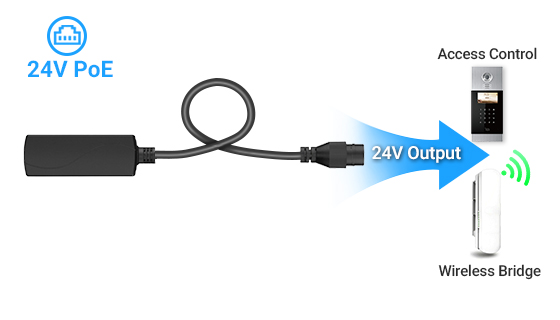

Regulated 24V Output
Steps down high voltage to a regulated 24V Passive PoE output (Mode B: Pins 4,5+ / 7,8-), providing safe and continuous power for outdoor wireless APs and CPEs.

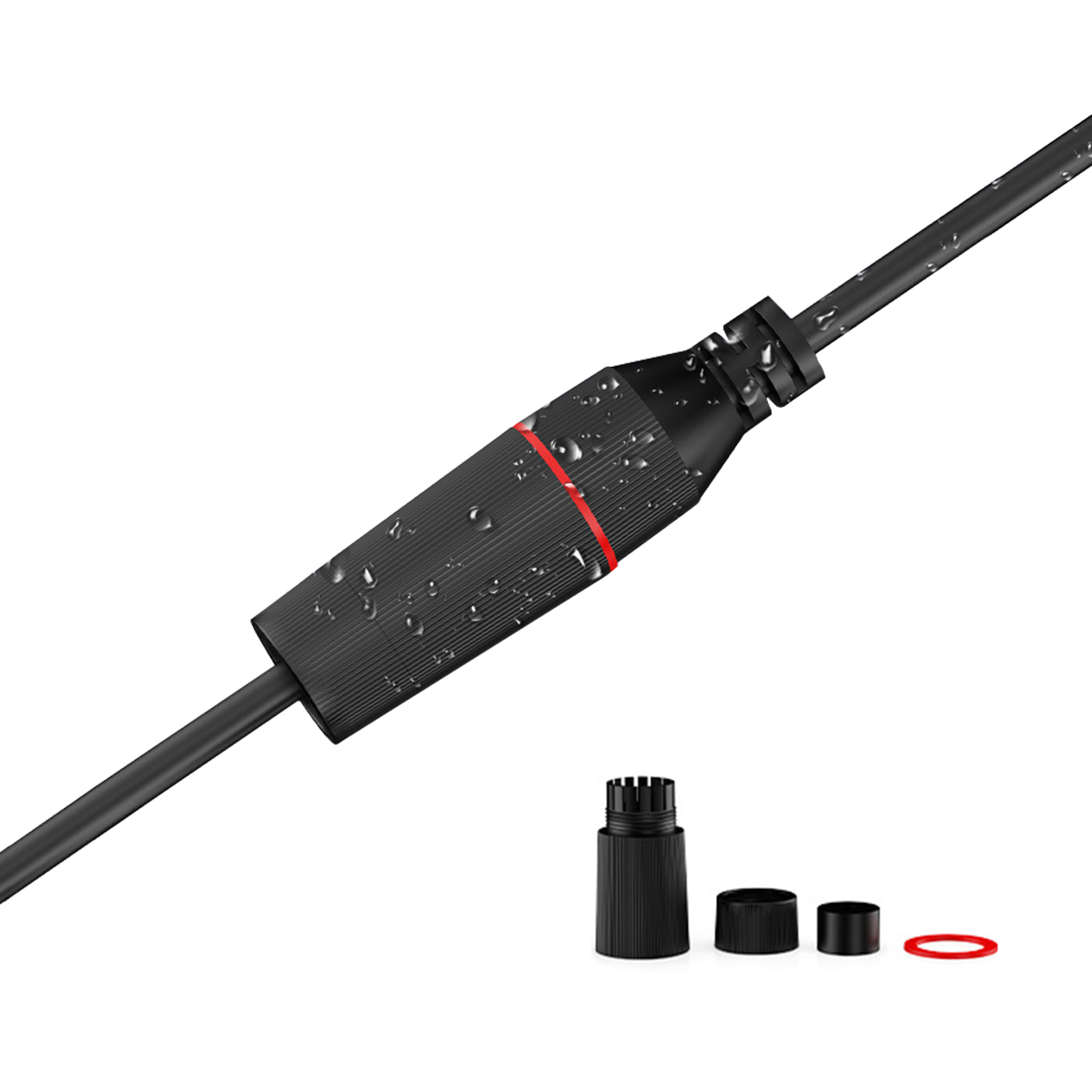

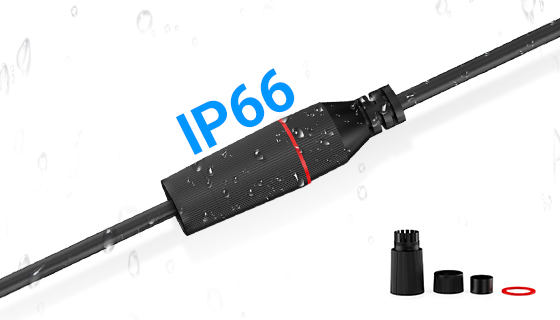

Waterproof Output Joint
Features a dedicated IP66 waterproof connector assembly on the 24V PoE output side to ensure secure and sealed connectivity leading to external outdoor network devices.
Zero External AC Wiring
Operates entirely on network bus power with zero configuration needed. Completely avoids installing remote AC outlets, wall adapters, or heavy power boxes.

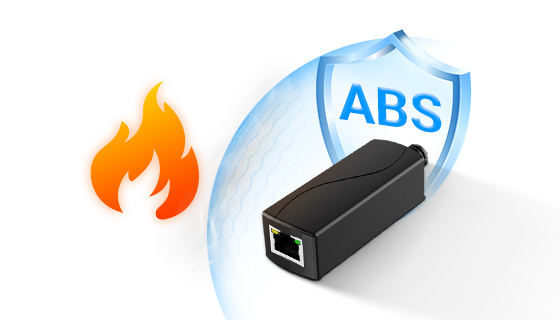

Durable ABS Enclosure
Constructed with a high-impact, flame-retardant ABS plastic casing that combines lightweight portability with long-lasting structural durability for field installations.
Full Gigabit Throughput
Delivers full-duplex 10/100/1000Mbps wire-speed data passthrough without bandwidth throttling, ensuring zero packet loss for high-speed wireless backhaul.
-30°C to 75°C Endurance
Engineered to sustain continuous, reliable operation across an extended ambient operating temperature range from -30°C to +75°C, ensuring stable performance in extreme cold or hot environments.
Surge & ESD Protection
Integrated with TVS surge suppressors and ESD clamping diodes on port interfaces to guard connected sensitive wireless equipment against transient electrical spikes.

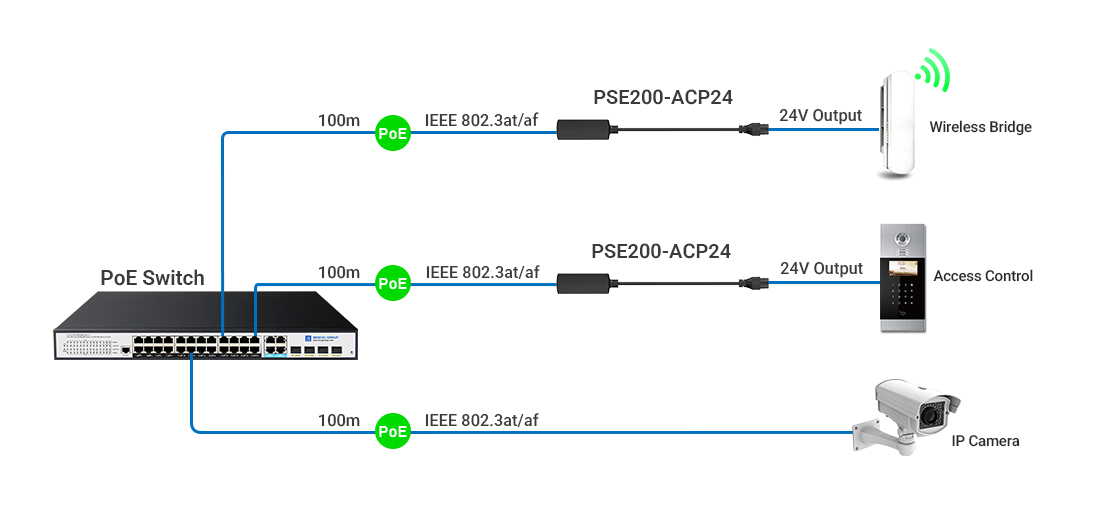

Active PoE to 24V Passive PoE Converter Connectivity Solutions
Bridge standard 48V–56V active PoE networks with 24V passive outdoor CPEs and wireless bridges seamlessly using the PSE200-ACP24 step-down converter.
Typical Application Scenarios
- 1. Standard Active Switch to 24V Wireless Bridge Conversion Safely connect 24V passive wireless CPEs or point-to-point (PTP) bridges to an enterprise IEEE 802.3af/at active PoE switch. The PSE200-ACP24 negotiates power safely via active 802.3af/at handshake and steps down the voltage to a regulated 24V output (Mode B: Pins 4,5+ / 7,8-), protecting legacy 24V wireless gear from high-voltage damage while maintaining full Gigabit backhaul.
- 2. Protected Outdoor Cabinet & Enclosure Deployment Because the non-waterproof PoE input port cannot be exposed directly to open rainfall, the unit is intended for placement inside outdoor waterproof junction boxes, equipment cabinets, or sheltered eaves. Its output side features a dedicated waterproof connector to ensure a sealed connection for the downstream cable extending out to remote wireless APs.
- 3. Extended Operating Temperature Resistance (-30°C to +75°C) Powered entirely via the incoming Ethernet bus line with zero external AC power required, the converter withstands harsh environmental temperatures ranging from -30°C up to +75°C inside outdoor enclosures, making it ideal for year-round operation across unheated industrial sites and extreme weather conditions.
Related Active to Passive PoE Converters & Selection Guide
| Models & Features |
 PSE200-ACP24
Dual Female RJ45 Ports
|
 PSE202-ACP24
RJ45 Male Output Dongle
|
 PSE204-ACP24
RJ45 Male Input Adapter
|
|---|---|---|---|
| Form Factor & Connector Type | Dual RJ45 Female Ports (In/Out) | RJ45 Female Input & Integrated RJ45 Male Output Plug | Integrated RJ45 Male Input Plug & RJ45 Female Output |
| Deployment Position | Midspan inline / On-site enclosure | Directly plugged into end device RJ45 port | Directly plugged into Standard PoE Switch port |
| Key Advantage | Standard dual female ports for flexible network patching | Eliminates extra patch cords at device end; ultra-compact | Converts standard PoE switch port to 24V passive instantly; simplifies rack wiring |
| Input Power Standard | IEEE 802.3af/at Active (48V–56V) | IEEE 802.3af/at Active (48V–56V) | IEEE 802.3af/at Active (48V–56V) |
| Output Power & Pinout | 24V DC Passive / Mode B (Pins 4,5+ / 7,8-) | 24V DC Passive / Mode B (Pins 4,5+ / 7,8-) | 24V DC Passive / Mode B (Pins 4,5+ / 7,8-) |
| Ethernet Speed | 10/100/1000 Mbps Gigabit | 10/100/1000 Mbps Gigabit | 10/100/1000 Mbps Gigabit |
| Housing / Enclosure | Compact ABS Molded Housing | Compact ABS Molded Housing | Compact ABS Molded Housing |
| Operating Temp | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C |
| Action | Current Product | View Details | View Details |
Active IEEE 802.3af/at to 24V Passive PoE Converter Manufacturer
As a direct B2B manufacturer in Shenzhen, China, we specialize in high-efficiency PoE power conversion hardware, industrial PoE extenders, and custom active-to-passive PoE adapters. Our products seamlessly integrate 48V–56V standard PoE networks with 24V passive wireless APs, MikroTik, Ubiquiti, and IP surveillance systems while complying with international standards (CE, FCC, RoHS).
Custom OEM / ODM Capabilities for PoE Converters & Extenders
Start Your OEM/Wholesale Project
Looking for specialized PoE conversion solutions, custom pinouts, or bulk supply for telecom deployment? Connect directly with our engineering team for immediate quotes and evaluation samples.
⚡ Factory Direct Support: Guaranteed Response Within 24 Hours
