Overview

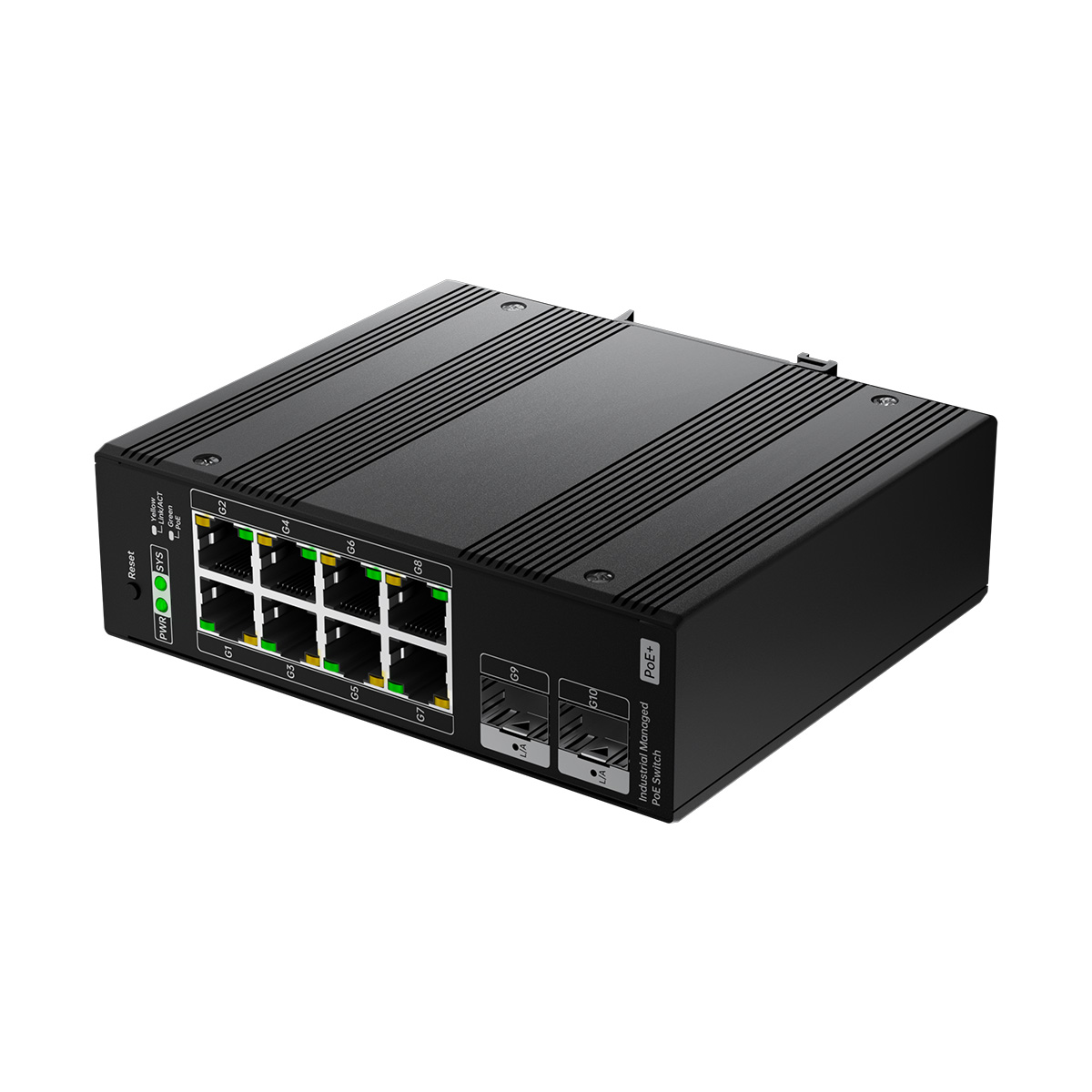

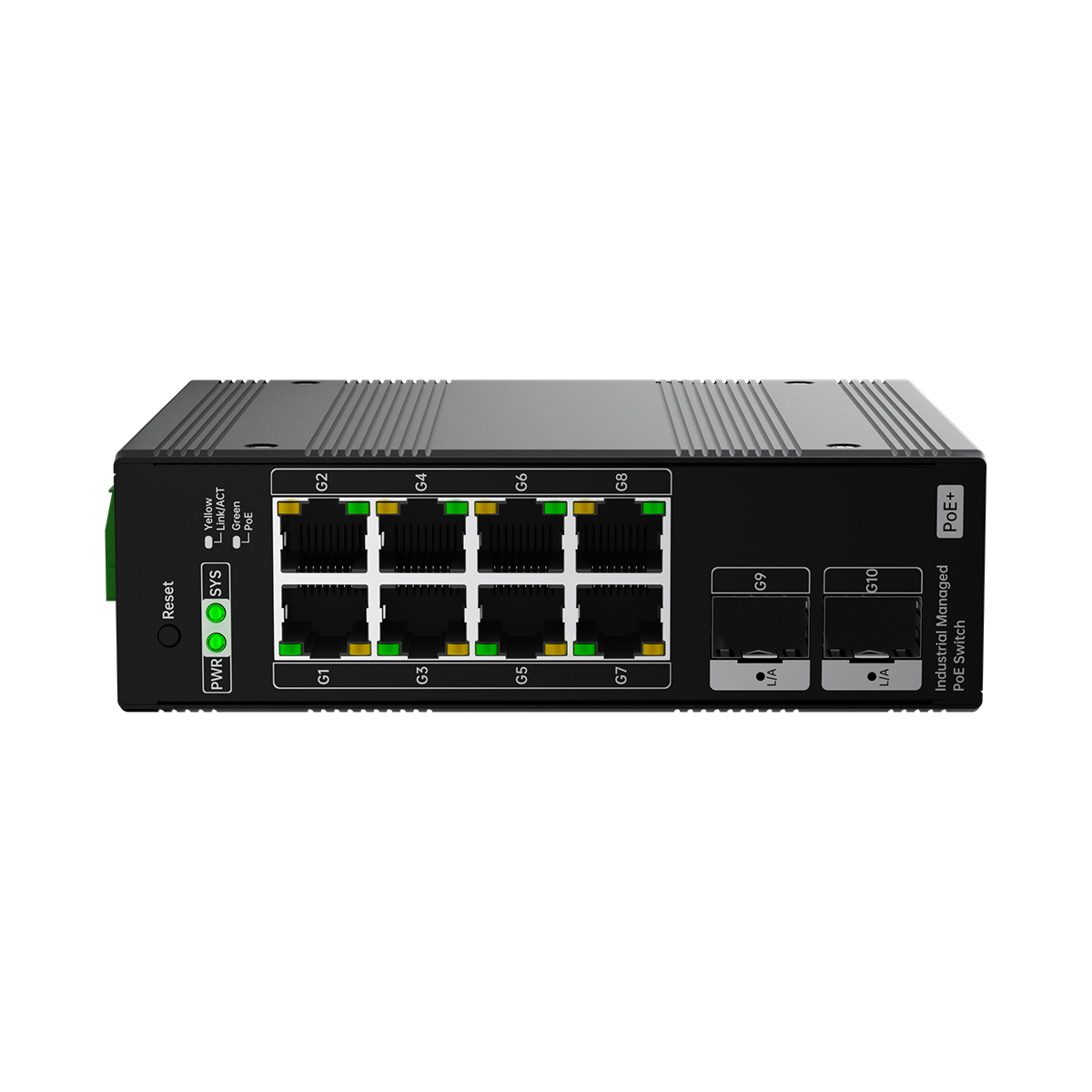

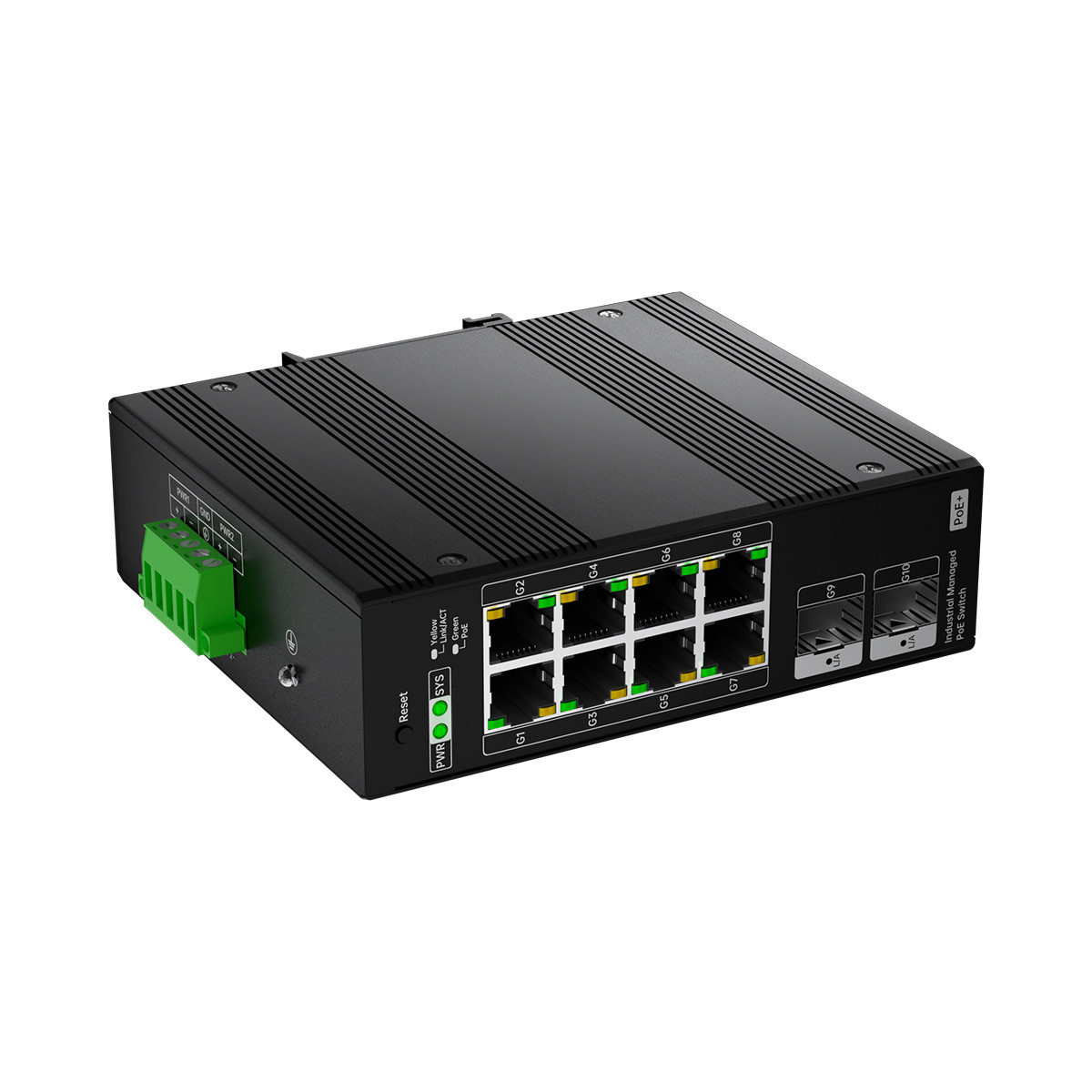

IES7311-8PGE2GF-DC, Web managed industrial PoE switch 8 port,with 2 gigabit SFP uplink,DIN-Rail mount
Features
Industrial Toughness & Wide Temp Range
This 8 port industrial poe switch operates flawlessly from -40°C to 75°C with IP40 protection, 8KV surge defense, and rugged DIN rail mounting.Deploy worry-free in freezing warehouses, blazing factory floors, or dusty sites. Withstand voltage spikes from machinery and lightning. The compact rail-mount design saves space in control cabinets or roadside enclosures. Benefit: Slash maintenance costs and downtime with hardware built for harsh environments.
Flexible Gigabit SFP Uplinks
The web managed industrial PoE switch with dual SFP slots support fiber (single/mode) modules.Break the 100m Ethernet limit – extend networks up to 120km with fiber. Connect distant cameras, sensors, or other switches seamlessly. Avoid EMI noise in electrically noisy plants using optical links. Build scalable, interference-proof backbone networks across large industrial sites.

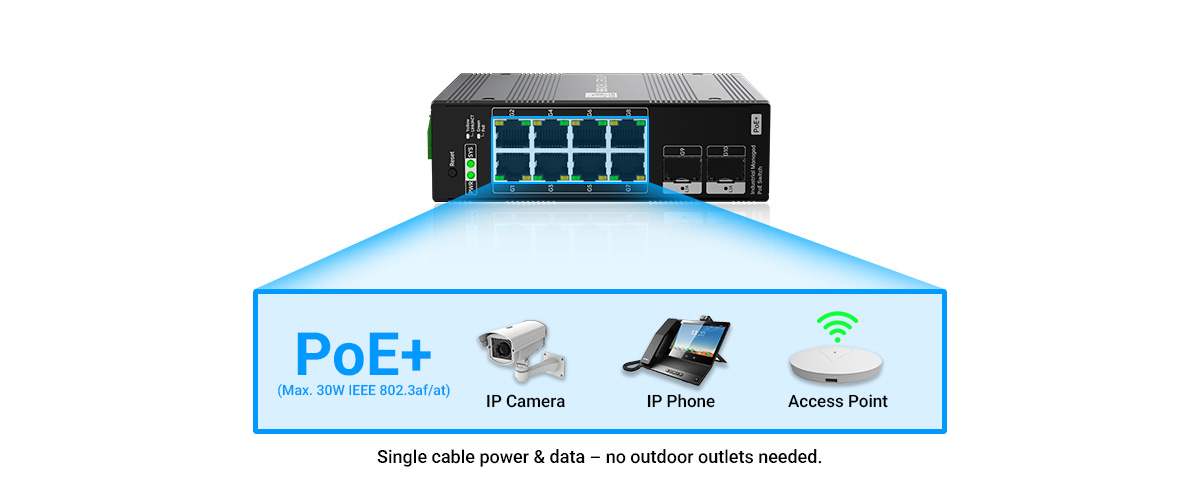

Smart PoE++ Power Management
8× IEEE 802.3at PoE+ ports (30W/port, 240W total) with scheduling, priority, and remote reboot via web GUI.Power IP cameras, wireless APs, or access control over a single cable – no outdoor outlets needed. Schedule PoE on/off to save energy, reboot frozen devices remotely, and prioritize critical gear during power shortages. Cut installation costs 40%+ and ensure 24/7 uptime for powered devices.
Advanced Security & Traffic Control
VLAN isolation, QoS prioritization, bandwidth control, and storm protection.Separate OT/IT networks (e.g., isolate PLCs from office traffic). Guarantee bandwidth for video surveillance or VoIP using QoS. Block broadcast storms that cripple networks. Secure critical operations and eliminate lag for latency-sensitive applications.
Intuitive Web Management Interface
Browser-based centralized control for setup, monitoring, and diagnostics.Configure VLANs, PoE, or rings in minutes – no CLI expertise needed. Monitor port status, traffic flows, and power usage in real-time. Receive alerts for faults or attacks. Deploy and manage distributed industrial networks with IT-level control and 70% less effort.
Connectivity Solutions

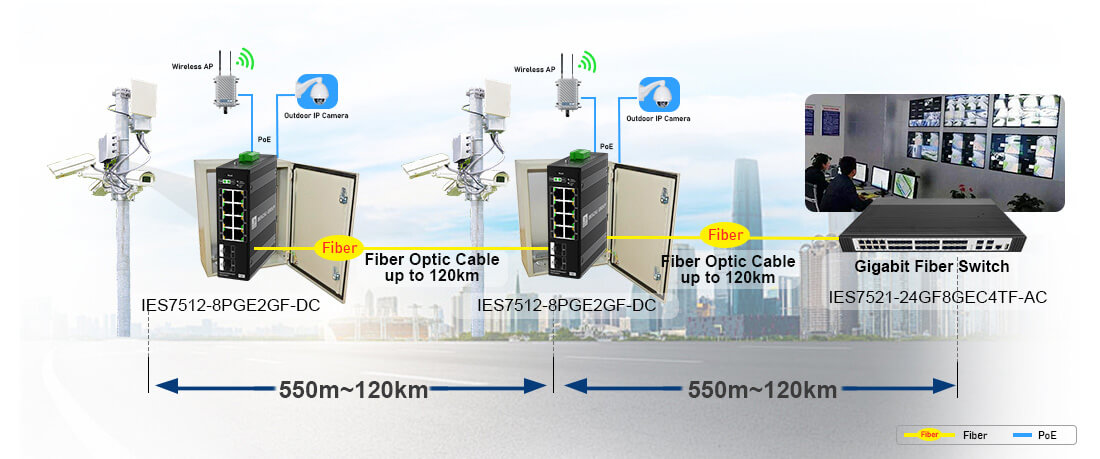

8 Port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution

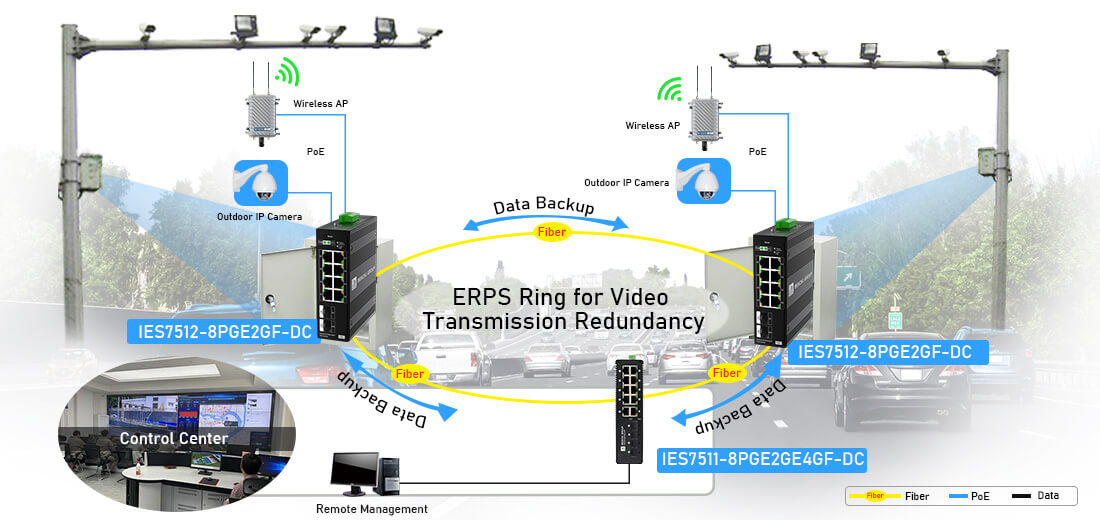

Web Managed Industrial PoE switch 8 port with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
Spécifications techniques :
IE7311-8PGE2GF-DCPorts cuivre RJ45 10M/100M/1G :
8Ports SFP (fibre) 1,25G :
2Ports PoE/PoE+ :
8Bouton de réinitialisation :
YesAlimentation via Ethernet :
*Norme PoE :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetType d'alimentation PoE :
End-span: 1/2 (+), 3/6 (-)Puissance de sortie PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Budget de puissance PoE :
120 WattsSpécification de performance :
*Mémoire tampon de paquets :
1.6 MbModes de transfert :
Store-and-forwardBande passante :
1GTaux de transfert de paquets :
14.88Mpps (64 byte packet size)Taille de la base de données d'adresses MAC :
4K (48-bit MAC ad-dresses)Prise en charge des trames géantes :
9KTemps moyen entre les pannes :
181,365 hours (MTBF) @ 25°CServices L2 - VLAN :
*Marquage VLAN IEEE 802.1Q :
YesVLAN basés sur IP :
YesVLAN basé sur un protocole :
YesServices L2 - Disponibilité :
*Contrôle des tempêtes :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAG (LACP) :
YesIEEE 802.3x :
YesProtocole IEEE 802.1w Rapid Spanning Tree :
YesAgrégation de liens :
*Services de surveillance et de découverte du réseau :
*SNMP :
v1, v2cSécurité Internet :
YesIEEE 802.1x :
YesSécurité basée sur les ports par adresses MAC verrouillées :
YesQualité de service (QoS) :
*Limitation de débit basée sur le port :
Yes ingress and egressQoS basée sur le port :
YesProtocoles réseau IEEE :
*Protocoles :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocoles 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1w (RSTP)Gestion, surveillance et dépannage :
*Gestion des mots de passe :
YesAccès Web TLS/HTTPS (version) :
Yes (v1.2)Téléchargement/téléchargement HTTP (micrologiciel) :
YesLED :
YesPar port :
Speed, Link, Activity; PoE in different modePar appareil :
PowerSpécifications physiques :
*Dimensions (Largeur * Profondeur * Hauteur) :
150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)Poids :
0.9 kg (1.98 lb)Protection de coque :
P40 high-strength aluminum caseExigences d'alimentation :
DC 48~56V, redundant power with reverse polarity protectionmaximum d'énergie :
240WEthernet économe en énergie (EEE) :
Yes (deactivated by default)Ventilateur :
FanlessSpécifications environnementales :
*Température de fonctionnement :
-40° to 85°C (-40° to 185°F)humidité d'exploitation :
95% maximum relative humidity (RH), non-condensingAltitude de fonctionnement :
10,000 ft (3,000 m) maximumTempérature de stockage :
-40° to 85°C (-40° to 185°F)Humidité de stockage (relative) :
95% maximum relative humidity, non-condensingAltitude de stockage :
10,000 ft (3,000 m) maximumNorme exécutive et protection :
*Protection contre la foudre :
*CEI61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Partie 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (champ magnétique pulsé) :
1000A/mIEC61000-4-10 (oscillation amortie) :
30A/m, 1MHzIEC61000-4-12/18 (onde de choc) :
CM 2.5kV, DM 1kVCEI61000-4-4 (EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmission en mode commun) :
30V, 300V, 1sCEI61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmission radiofréquence) :
10V(150kHz~80MHz)CEI61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (surtension) : câble d'alimentation :
CM±4kV/ DM±2kV, Data cable: ±4kVPropriétés mécaniques :
*CEI60068-2-6 :
Anti VibrationCEI60068-2-32 :
Free FallCEI60068-2-27 :
Anti ShockContenu du colis :
*Tous les modèles :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideType d'entreprise :
IndustrialPlus de filtres :
WEB Managed
Questions & Answers
Downloads
- 8 port Gigabit Web Managed Industrial PoE Swtich with 2 Gigabit SFP Datasheet (IES7311-8PGE2GF-DC)
