8-Port 10G Unmanaged PoE++ Switch | 802.3bt 90W per Port | 300W Power Budget | SP5210-8PTE-8BT

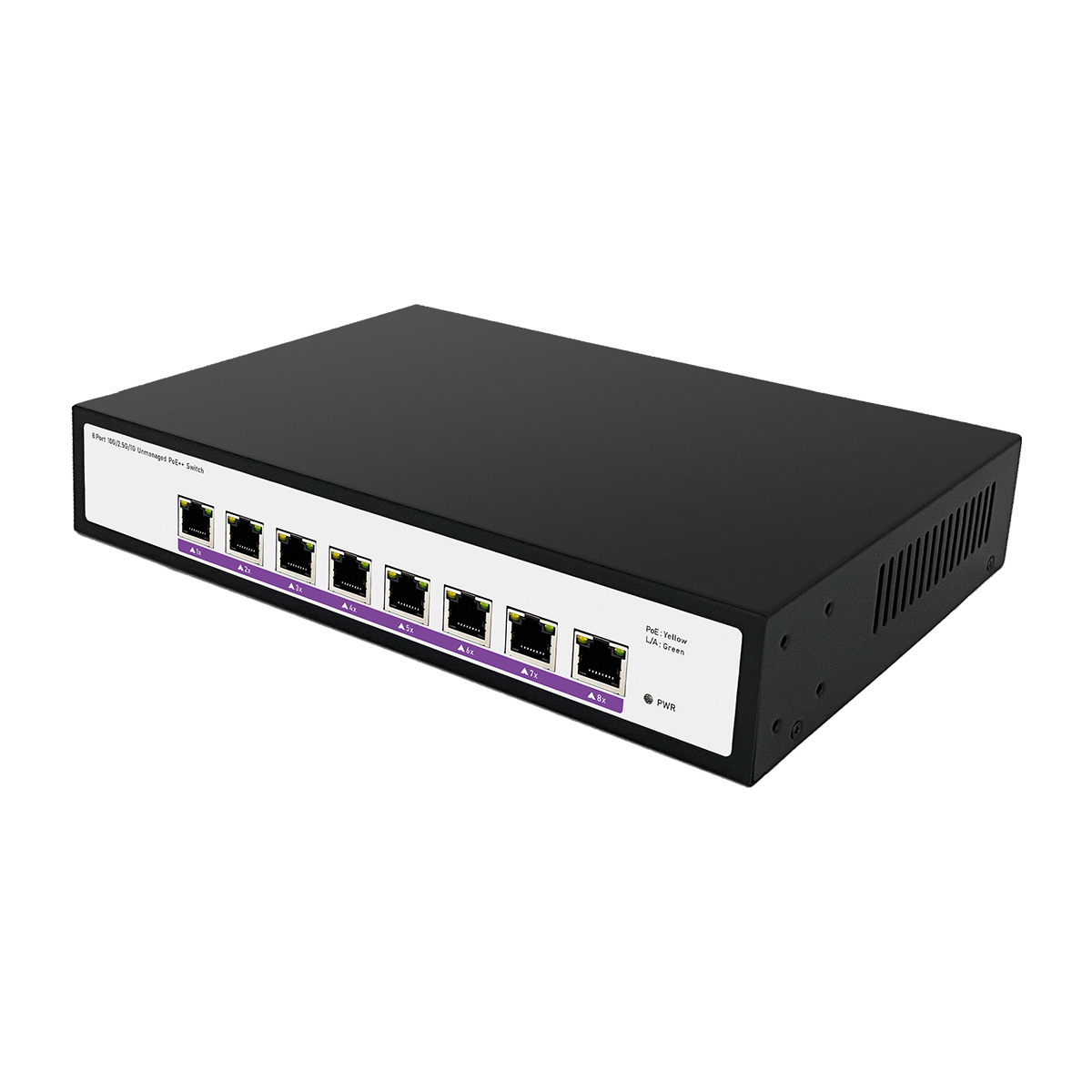

Front view of an 8-port 10G PoE++ switch showing port layout and LED indicators.

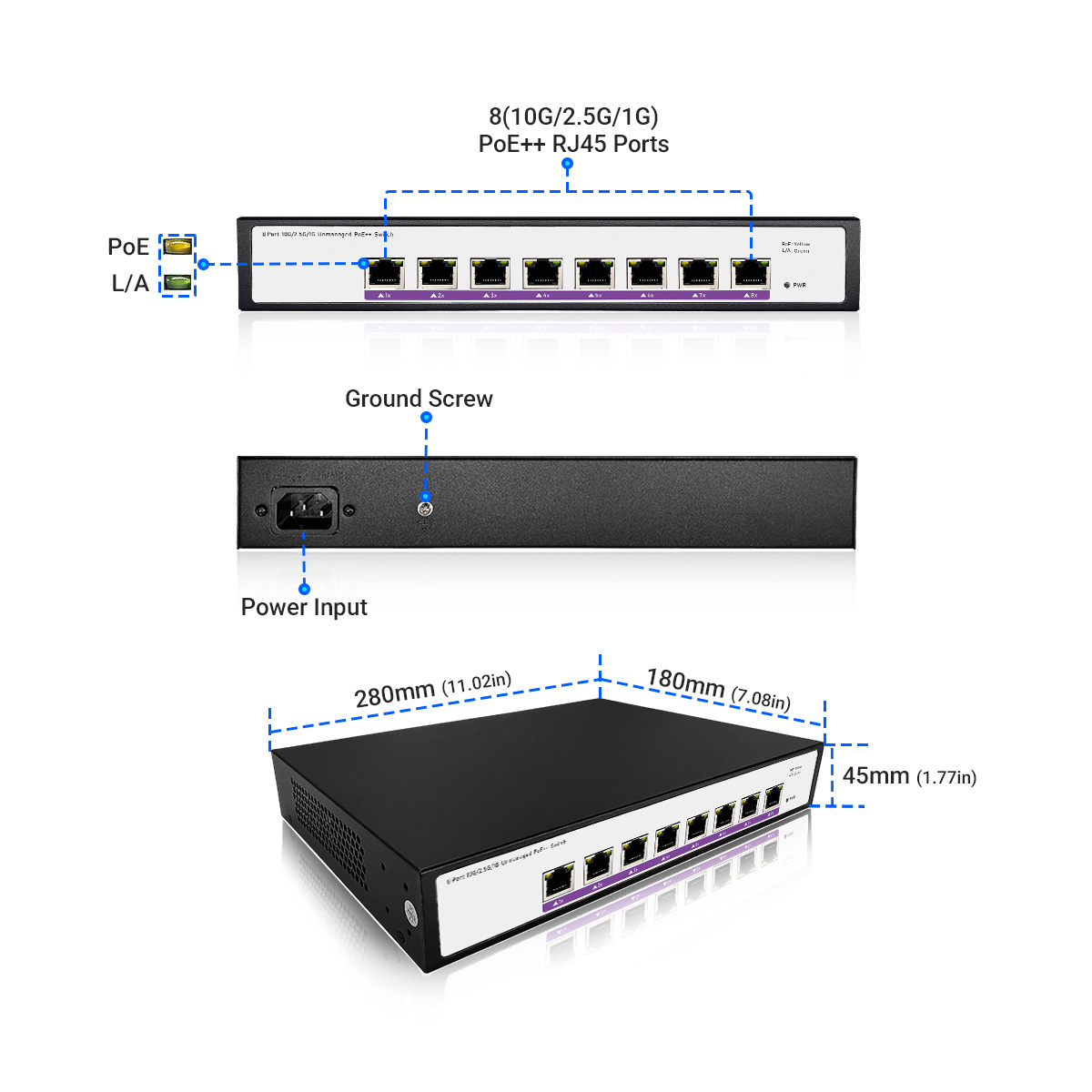

Interface and dimension diagram of an 8-port 10G PoE++ switch showing port types, LED indicators, rear grounding stud, power input, and product measurements.
Left side view of an 8-port 10G PoE++ switch showing ventilation openings and rack-mounting points.

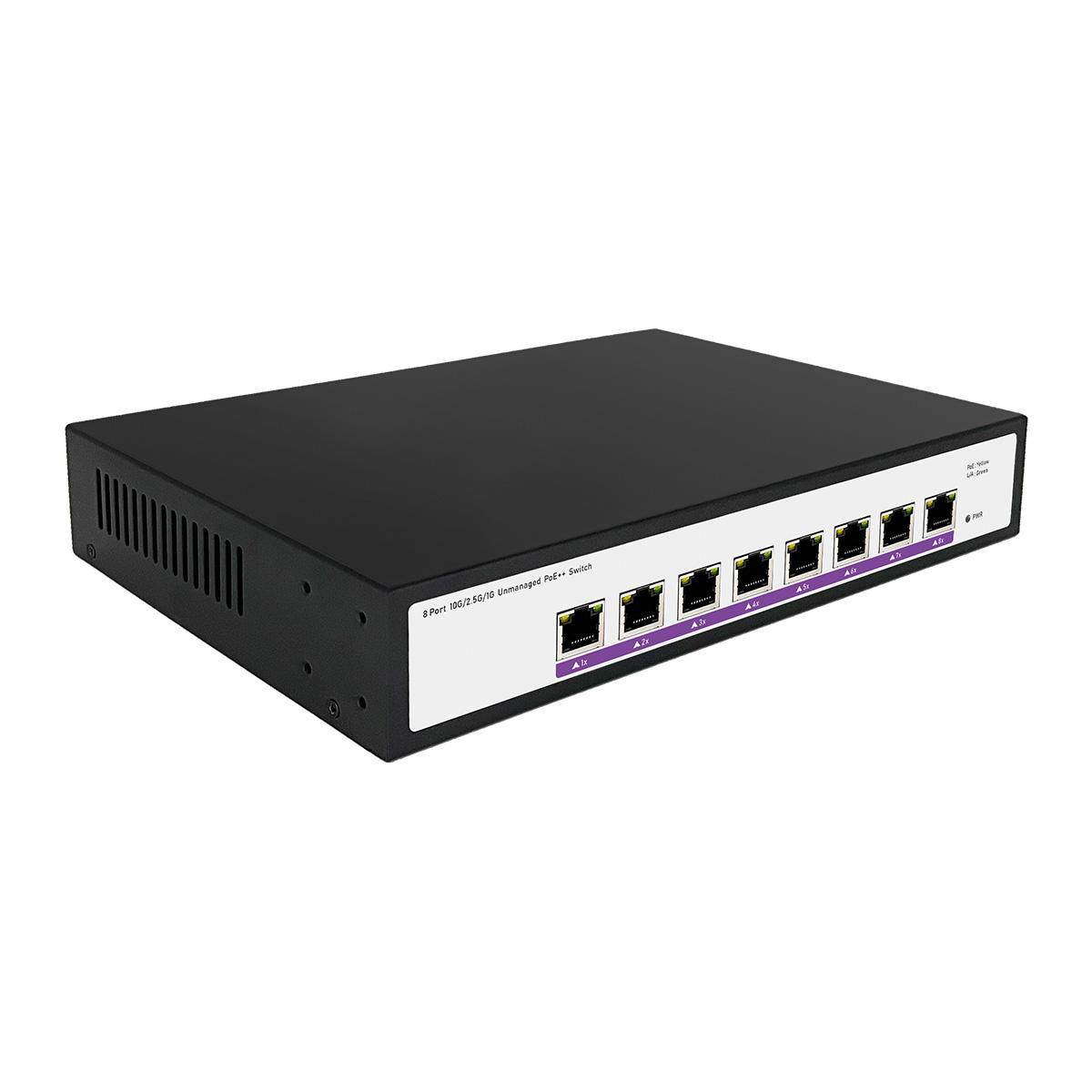

Right side 45-degree view of an 8-port 10G PoE++ switch showing ventilation grilles and rack-mounting points.

8-Port 10G Unmanaged PoE++ Switch | 802.3bt 90W per Port | 300W Power Budget | SP5210-8PTE-8BT

Renseignez-vous maintenant

Plug-and-play 8-Port 10G Base-T unmanaged switch with 300W total budget. Delivers up to 90W Ultra PoE++ (802.3bt) per port for Wi-Fi 7 APs and PTZ cameras.

Product Highlights

    Line-Rate 10G Base-T Copper Ports: Deploys eight full 10-Gigabit RJ45 copper ports to deliver continuous 10Gbps non-blocking throughput without expensive SFP+ transceivers.

    90W Ultra PoE++ Injection (802.3bt): Complies with the IEEE 802.3bt Type 4 standard, delivering up to 90W of high-power output per port to drive next-gen edge infrastructures.

    300W Aggregated Power Pool: Centralizes a 300W robust PoE budget, leveraging hardware-level power distribution to manage intense startup spikes and heavy-duty loads.

    Pure Plug-and-Play Architecture: Utilizes an unmanaged operational design requiring zero software configuration, IP mapping, or VLAN setup for instant network integration.

    Wi-Fi 7 Multi-Gigabit Backhaul Optimization: Engineered to unlock full Wi-Fi 7 wireless capacities, feeding high-speed data planes while injecting massive power to tri-band AP radios.



10G PoE++ Switch | 8-Port 10G Base-T Unmanaged Ultra PoE++ Switch  | SP5210-8PTE-8BT

300W High-Speed Plug-and-Play Powerhouse with 90W IEEE 802.3bt Per Port

Next-Gen Ultra-High Bandwidth Edge Powering: Full 10Gbps Speed with Zero Configuration

This 8-Port 10G Base-T Unmanaged Ultra PoE++ Switch is an elite, plug-and-play network edge solution engineered to eliminate bandwidth and power bottlenecks simultaneously. Featuring 8 full 10-Gigabit copper ports, this pure ethernet switch delivers line-rate 10Gbps throughput and up to 90W PoE++ (IEEE 802.3bt) high power on a single cable, backed by a robust 300W total power budget. With an internal wide-voltage power supply (100-240V AC), it eliminates bulky external adapters. Operating with zero software complexity, it ensures 100% uptime and seamless hardware integration for high-density Wi-Fi 7 deployments, multi-gigabit storage grids, and power-hungry commercial infrastructures.

Target Multi-Gigabit Application Scenarios

This high-density unmanaged 10G switch is the premier choice for localized engineering projects requiring extreme data speed and heavy-duty remote power delivery:

Next-Gen Wi-Fi 7 Wireless Networks

Acts as the dedicated power driver for enterprise Wi-Fi 7 Access Points. Feeds multi-gigabit wireless backhauls over 10G Base-T copper lines while pumping 60W-90W spikes required by high-load tri-band radios, bypassing complex software configurations.

ProAV & Media Production Studios

Accelerates ultra-HD 4K/8K editing workflows. Bridges high-speed centralized NAS storage, all-flash editing workstations, and heavy-duty PoE++ control panels across 8 pure copper 10G ports, achieving real-time zero-lag file transfers with zero setup time.

Heavy PTZ & Intelligent Perimeter Security

Simplifies advanced security grids deploying heavy-duty laser-assisted PTZ tracking cameras or edge AI nodes. Dynamically allocates the 300W power pool to manage intense startup power surges and massive heater loads in extreme outdoor weather.

Key Product Features & Technical Advantages

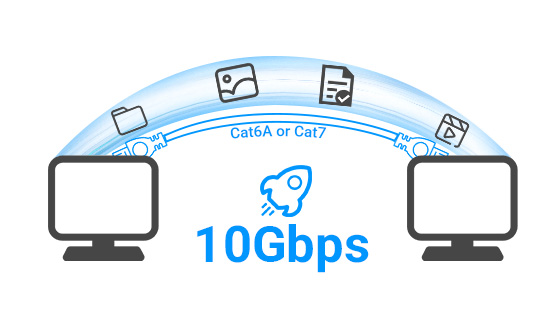

High-speed 10G Base-T multi-gigabit copper connectivity interfaces deployed on an unmanaged network switch to eliminate localized enterprise bandwidth bottlenecks.

Multi-Gigabit Line Capacity

Operates an 8-port massive 10Gbps pipeline over existing copper links, serving high-density pipelines with zero routing delays.

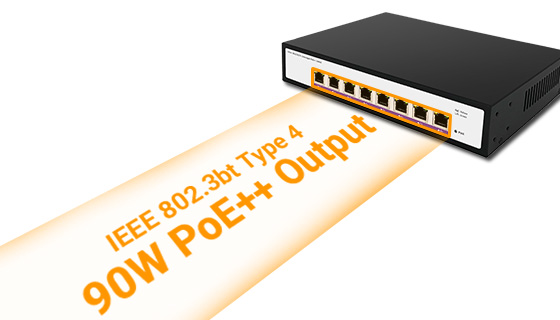

Advanced IEEE 802.3bt Type 4 PoE++ power supply architecture delivering up to 90W of continuous wattage for high-consumption industrial edge terminals.

90W High-Wattage Injection

Integrates IEEE 802.3bt Type 4 injection technology, driving power-hungry commercial hardware directly through standard RJ45 runs.

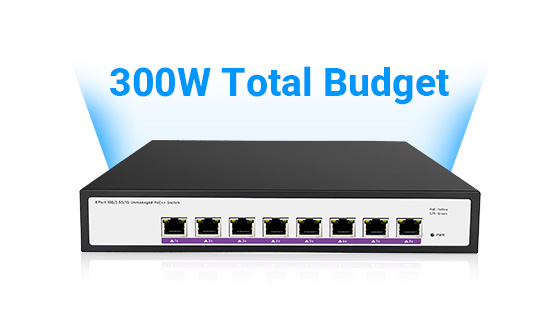

A centralized 300W high-capacity hardware power distribution system balancing intensive boot-up voltage spikes across edge network nodes.

Smart Load Balancing

Manages a centralized 300W power pool using smart hardware sensing to smooth out high voltage surges during concurrent device startups.

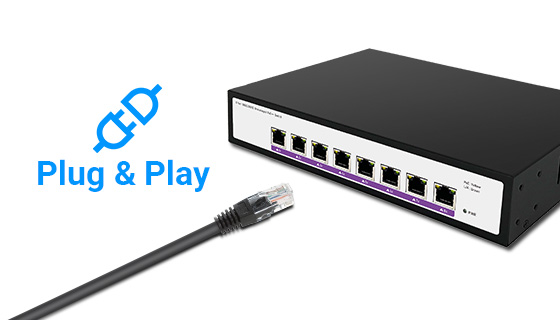

An unmanaged localized network installation diagram executing line-rate backplane data switching without software configuration overhead.

Zero-Configuration Plane

Employs a pure plug-and-play unmanaged layer to execute immediate line-rate switching, eliminating complex IP setups or CLI overhead.

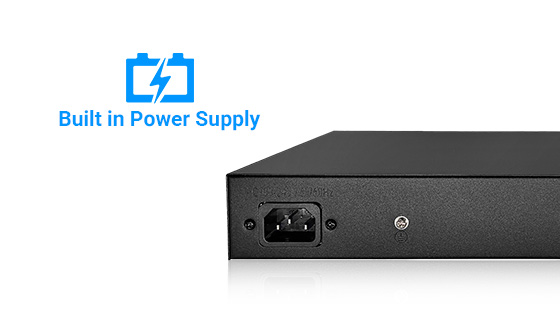

Interior hardware engineering showcasing a built-in wide-range universal 100V-240V AC power module integrated inside a heavy-duty chassis.

All-Built-In Power Supply

Houses an industrial 100V-240V AC wide-voltage regulator internally, removing heavy external brick adapters from server racks.

An enterprise-grade Wi-Fi 7 wireless access point running a multi-gigabit backhaul over copper media powered by a 90W edge switch.

Wi-Fi 7 Backhaul Mastery

Feeds the immense multi-gigabit requirements of enterprise Wi-Fi 7 APs, driving intense tri-band wireless radios without throughput lag.

A pure unmanaged silicon ASIC hardware design executing uninterrupted high-speed physical layer network packets switching.

Zero Firmware Risk

Eliminates software system vulnerabilities, kernel lockups, and firmware compromises by utilizing an unmanaged hardware design.

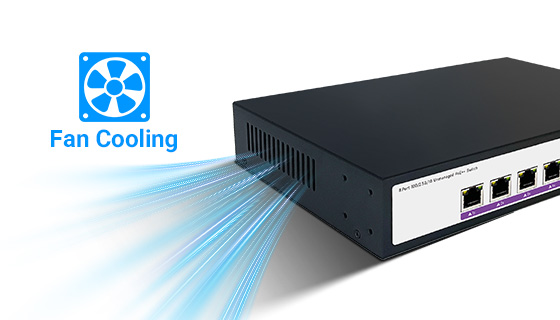

Side view of an enterprise-grade heavy-duty metal chassis network switch featuring premium active thermal ventilation ports for 24-7 continuous stability.

Rugged Active Cooling

Enclosed in a durable all-metal housing engineered with enhanced airflow pathways, protecting deep electronics under constant high loads.

10G Ultra PoE++ Connectivity Solutions



High-bandwidth edge distribution and high-power injection architecture for multi-gigabit next-gen networks.

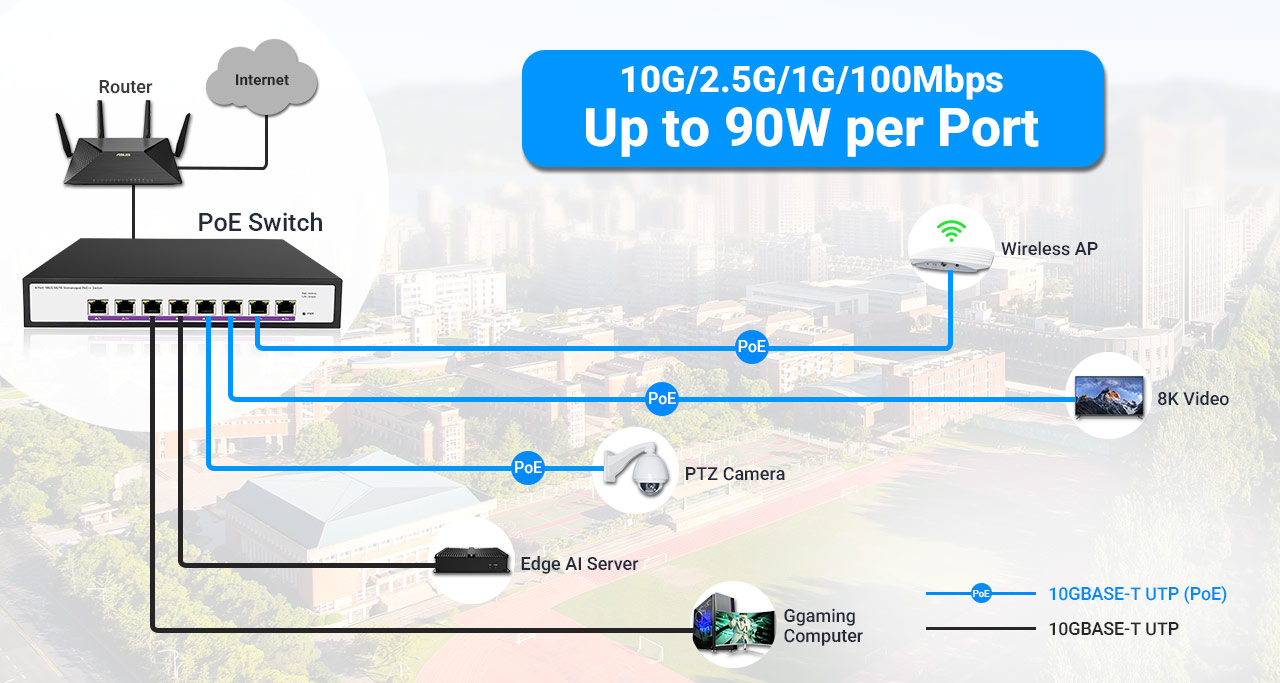

8-Port Full 10G Base-T Unmanaged Ultra PoE++ Switch 300W Network Topology Diagram

Multi-Gigabit Edge Deployment Topology

  • 1. Next-Gen Enterprise Wi-Fi 7 Infrastructure Deploy the 8-port 10G PoE++ switch at the network edge to eliminate wireless backhaul bottlenecks. Connect high-density tri-band Wi-Fi 7 Access Points directly via Cat6A/Cat7 copper runs, feeding up to 10Gbps line-rate data while safely delivering 60W to 90W power spikes with zero software configuration.
  • 2. High-Performance ProAV & NVMe Storage Matrix Accelerate ultra-HD 4K/8K media workflows within modern editing studios. Link multiple all-flash NVMe NAS enclosures, multi-gigabit editing workstations, and high-wattage PoE++ smart controllers over 8 full-wirespeed万兆 ports, achieving seamless zero-latency media streaming and ultra-fast backups.
  • 3. Heavy-Duty PTZ CCTV & Intelligent AI Edge Grids Centralize power delivery for heavy outdoor perimeter defense tracking grids. The unmanaged hardware plane seamlessly dynamically shares the 300W total budget pool, providing active load protection for heavy-duty laser PTZ dome cameras and rugged edge AI computing nodes running under hash climates.

Specification

Technical Specifications Details / Parameters
Product Model SP5210-8PTE-8BT
Product Type 8-Port 10G Base-T Unmanaged Ultra PoE++ Switch
Fixed Ports 8 x 10GBase-T RJ45 Auto-negotiation Ports (Pure Copper, No SFP+ Needed)
PoE Standards IEEE 802.3bt PoE++ (Type 4), Backward Compatible with 802.3at (PoE+) and 802.3af (PoE)
PoE Pin Assignment Supports both 4-Pair powering (1/2(-) 4/5(+), ,3/6(+), 7/8(-)) for 90W Ultra PoE++
Per-Port Power Output Up to 90W max on any single port (Hardware-level auto-sensing and protection)
Total PoE Budget 300W Max Dedicated PoE Power Pool
Switching Capacity 160 Gbps (Non-blocking full wirespeed forwarding matrix)
Packet Forwarding Rate 120 Mpps (MAC Address Table Size: 16K, Jumbo Frame: 9K)
Network Management Unmanaged (Pure Plug-and-Play, Zero-configuration plane, No firmware crash risk)
Transmission Media Cat6A, Cat7, or Cat8 Shielded/Unshielded Twisted Pair (Up to 100 meters)
Power Supply Input Internal Wide-Voltage AC 100V~240V, 50/60Hz (No external power brick)

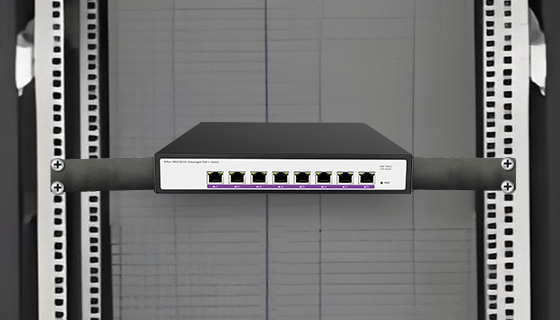

Enclosure & Mounting Rugged SECC Galvanized Metal Chassis; Integrated Cooling Fan; Desktop/Rackmount Setup
Status Indicators Power (PWR), Link/Act Per Port (10G/Multi-Gigabit Speed), PoE Status Per Port
Operating Temperature -10°C to 50°C (14°F to 122°F); Storage Environment: -40°C to 75°C

Frequently Asked Questions (FAQ)


Q1: How does this 10G switch intelligently allocate its 300W power budget when multiple 90W PoE++ ports are occupied?▼
The switch features a robust 300W total PoE power pool backed by hardware-level dynamic power management. While a single port can burst up to 90W under the IEEE 802.3bt standard, the internal ASIC logic intelligently prioritizes lower port numbers (Port 1 to Port 8). For instance, it can simultaneously power 3 full-load 90W devices (270W total) or 4 high-load 70W Wi-Fi 7 Access Points (280W total) safely with active overload shutdown protection.
Q2: What type of network cabling is required to guarantee full 10Gbps line-rate data transfers and 90W PoE++ output?▼
To maintain non-blocking 10Gbps line-rate data forwarding and mitigate thermal buildup from 90W high-current transmissions, we highly recommend utilizing Cat6A, Cat7, or Cat8 shielded twisted pair (STP) copper cables with 23AWG or thicker pure solid copper conductors. Standard Cat6 cabling can be used but limits 10G distances to less than 35-55 meters and increases power attenuation.
Q3: Why is an unmanaged architecture preferred for this high-performance 10G edge deployment?▼
At the high-speed network edge, complexity equals vulnerability. By operating on a pure unmanaged hardware switching plane, this switch removes software operating systems, configuration errors, and firmware exploits entirely. It provides 100% plug-and-play installation for engineering crews, lowering upfront hardware deployment costs while achieving absolute zero system-crash or freeze risks.
Q4: Is the internal power supply compatible with international commercial facility standards?▼
Yes. The switch integrates an enterprise-grade, wide-voltage internal AC power module supporting 100V to 240V AC at 50/60Hz. This universal layout ensures seamless operation across different global power grids without requiring external brick power adapters, allowing for clean, space-saving deployment within heavy-duty standard 19-inch IT server enclosures or compact cabinets.
Q5: What makes this 8-Port 10G Base-T PoE++ unmanaged switch a better edge solution than traditional gigabit or fiber switches for modern installations?▼
Traditional gigabit PoE+ switches fail to meet the multi-gigabit backhaul demands of Wi-Fi 7 access points or ultra-HD editing setups, causing severe network choking. Conversely, pure fiber switches fail to deliver electrical power, meaning your remote nodes require complex localized AC electrical outlets. Our 8-Port 10G Base-T Ultra PoE++ Switch solves this multi-faceted challenge by combining massive 10Gbps line-rate speed and up to 90W IEEE 802.3bt power over a single copper infrastructure line. By maintaining a clean unmanaged architecture, it gives system integrators an incredibly reliable, zero-config, and cost-effective edge powerhouse that drives next-gen high-draw devices with maximum uptime.

Resource Download Center



Get the complete technical documents and dimension drawings for your project planning.


PDF



Product Datasheet (PDF)

Includes 8-port 10G unmanaged switch hardware specifications, 90W Ultra PoE++ electrical standards, 300W total budget parameters, mechanical drawings, and compliance certifications.

📥 Download Datasheet

10G Base-T Ultra PoE++ Series Comparison



Select the perfect unmanaged multi-gigabit edge powerhouse tailored to your project port density and deployment scale.

High-Density Choice
SP5210-8PTE-8BT 8-Port Full 10G Unmanaged PoE++ Network Switch Product Thumbnail

SP5210-8PTE-8BT

8-Port Full 10G Unmanaged Ultra PoE++ Switch

The ideal choice for scaled edge deployment. Features 8 fixed 10G Base-T copper ports with a 160Gbps backplane fabric. Dynamically shares its 300W power budget across 8 ports, providing up to 90W PoE++ (802.3bt) injection. Perfect for distributing multi-gigabit pipelines across mid-sized offices, multi-node storage networks, and full perimeter tracking matrices.

8 × 10G Base-T | 300W Total PoE Budget
Maximum Power Density
SP5210-4PTE1TE-4BT 5-Port 10G Compact Unmanaged PoE++ Network Switch Product Thumbnail

SP5210-4PTE1TE-4BT

5-Port 10G Unmanaged Ultra PoE++ Switch

The ultimate micro-cluster powerhouse. Configured with 4 × 10G PoE++ downlink ports and 1 × 10G non-PoE uplink port. Packing a massive 300W total budget, it allows all 4 downlinks to simultaneously draw full 75W-90W loads. Specially engineered for small creative studios executing real-time 8K raw video editing, micro-cell Wi-Fi 7 wireless clusters, and high-draw Edge AI localized inference machines.


Verified Shenzhen Factory

Your Trusted B2B Industrial Network Switch Manufacturer

As a leading network communication hardware manufacturer based in Shenzhen, China, we specialize in high-power 10G Base-T multi-gigabit network switches, 90W Ultra PoE++ injection systems, and ruggedized edge nodes. For over a decade, we have been delivering premium wholesale hardware and tailored networking solutions to global engineering projects, system integrators, and brand distributors.

Premium OEM / ODM Manufacturing Services

✔ Private Label & Logo Silk-Screen
✔ Customized Housing & Port Density (5/8/16 Ports)
✔ Unmanaged Hardware Optimization & Custom MAC Tables
✔ Total PoE Budget Configuration (Up to 760W)
✔ Global Compliance Testing (CE/FCC/RoHS)
✔ Bespoke Enterprise Project Packaging

How to Start Your Project?

Whether you need a wholesale standard batch of 10G switches or custom-engineered PoE modification, our expert support team is ready to assist your layout.

📝
Submit Your RFQ Below Scroll down to the bottom form of this page to submit your detailed project specifications, desired port config, and estimated order quantity.
📨
Direct Engineering Contact Send your studio topological layout or customized OEM/ODM batch requirements straight to our corporate mailbox for immediate technical review. harry@benchu-group.com

⚡ Factory Guarantee: Response Within 24 Hours

Scroll Down to Contact Us ↓
