Overview

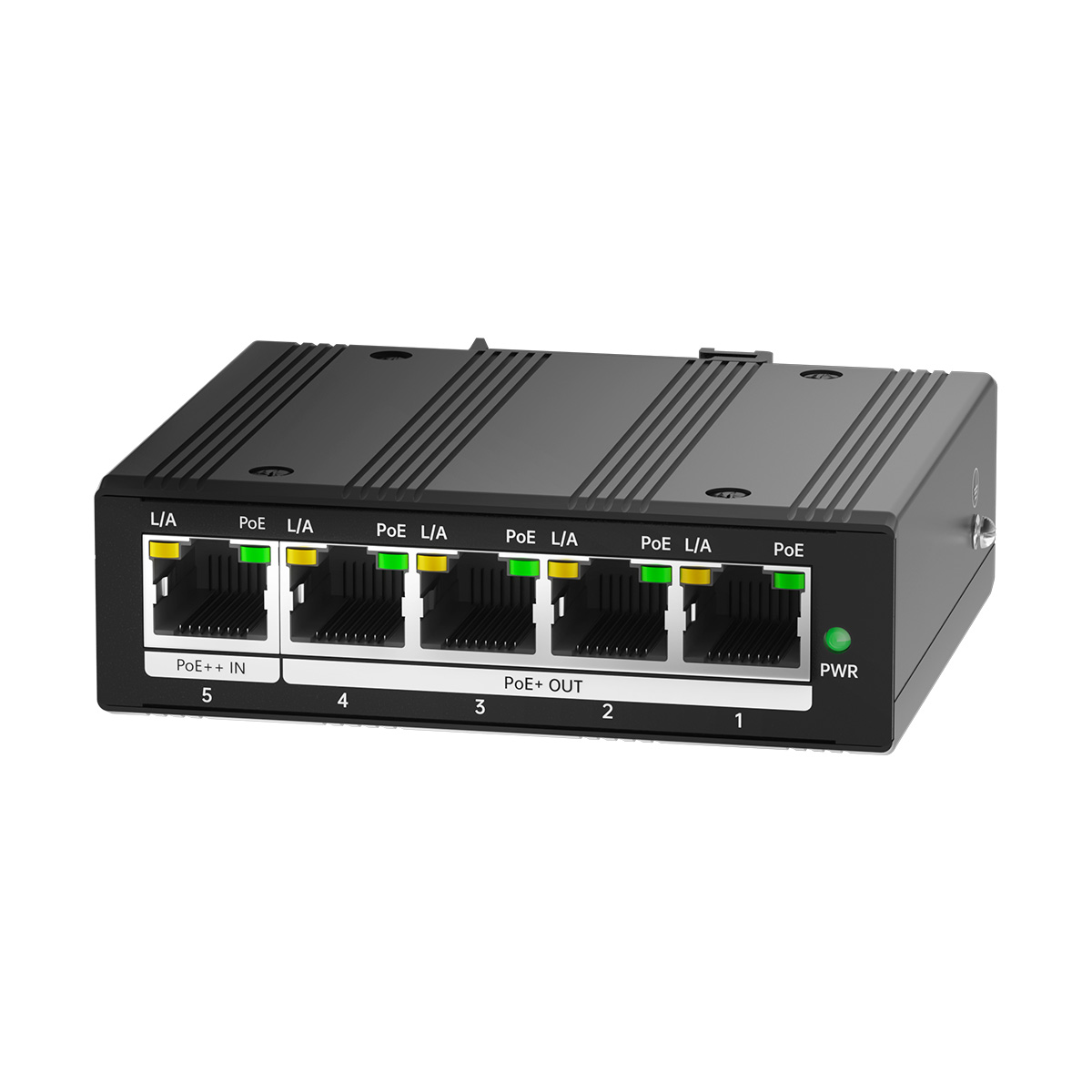

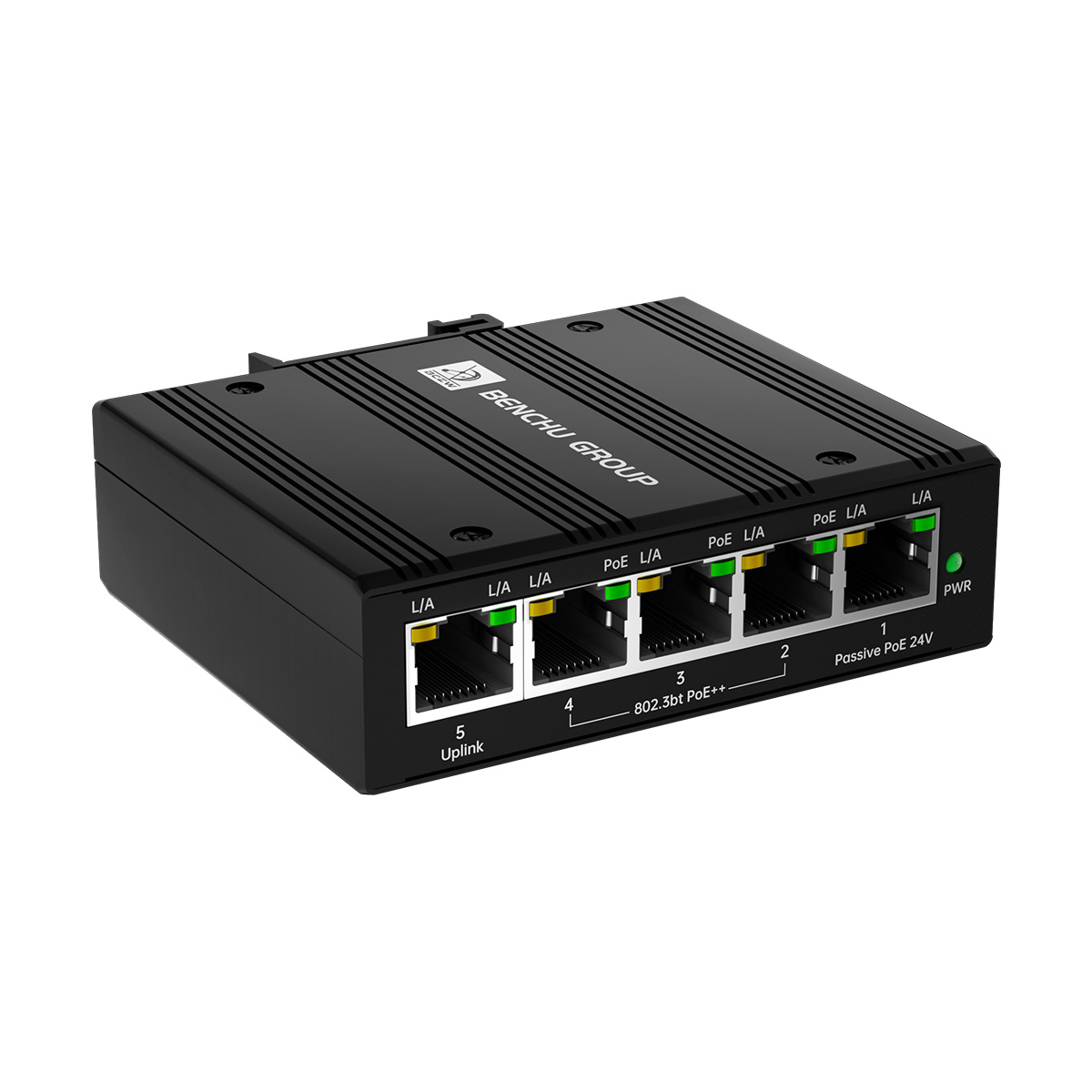

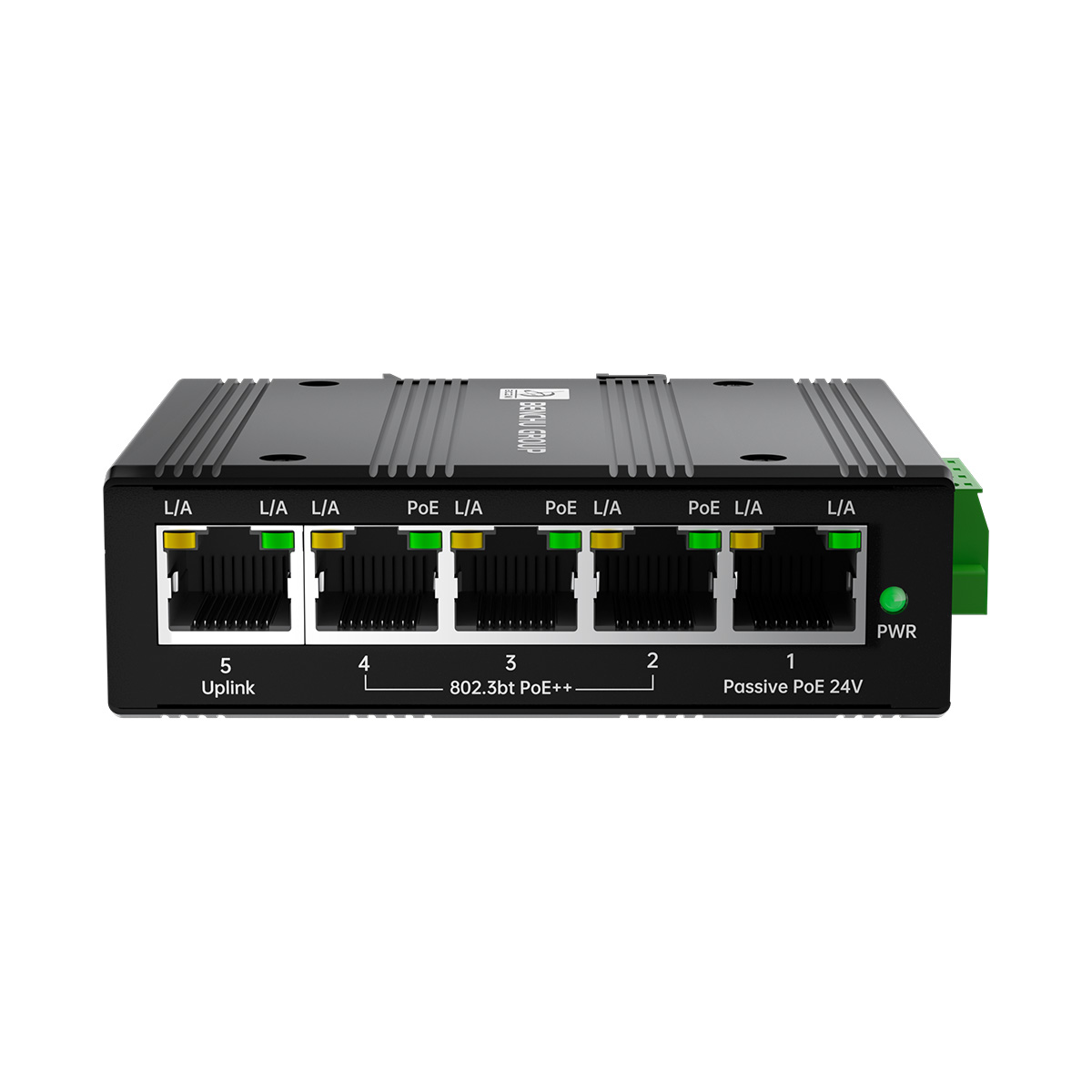

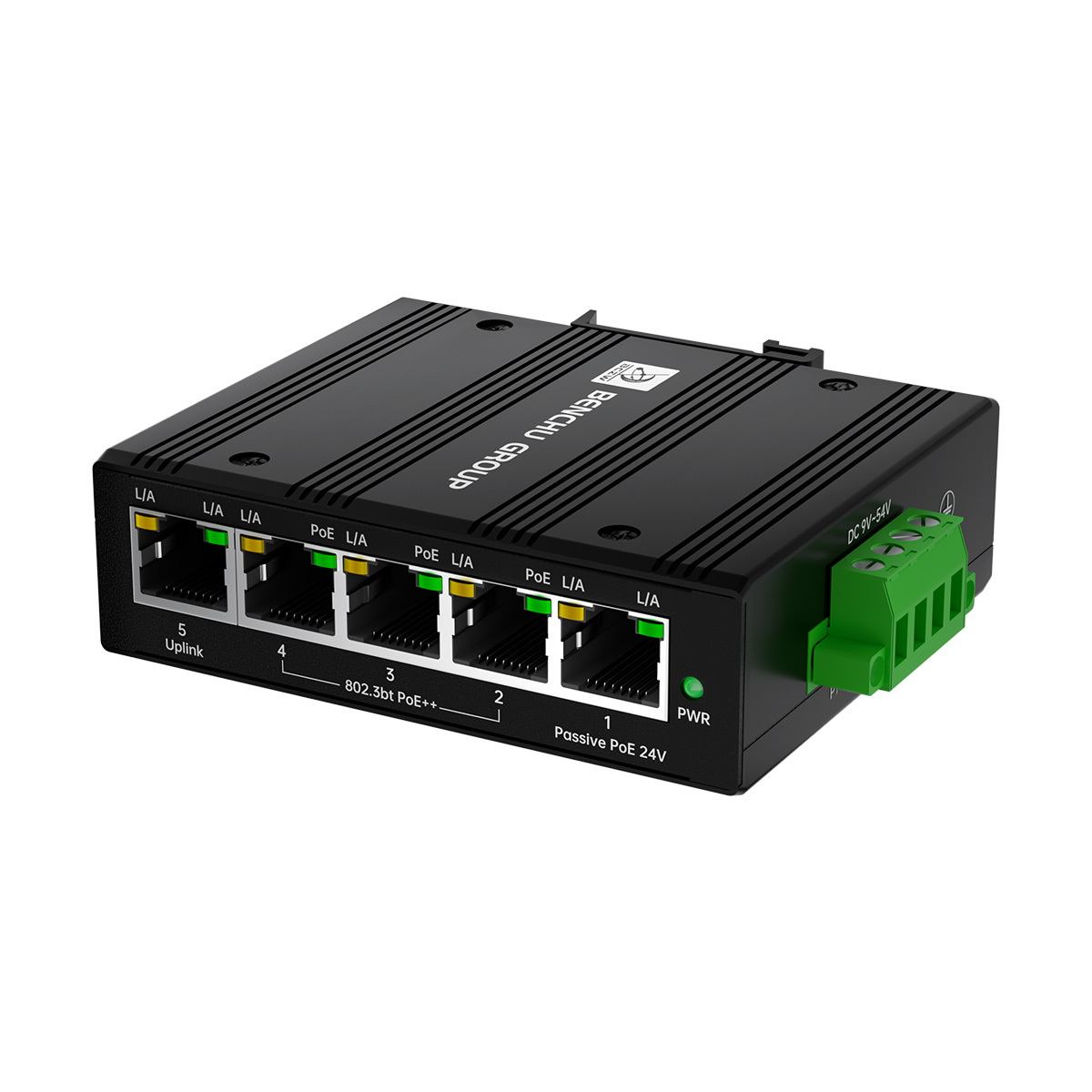

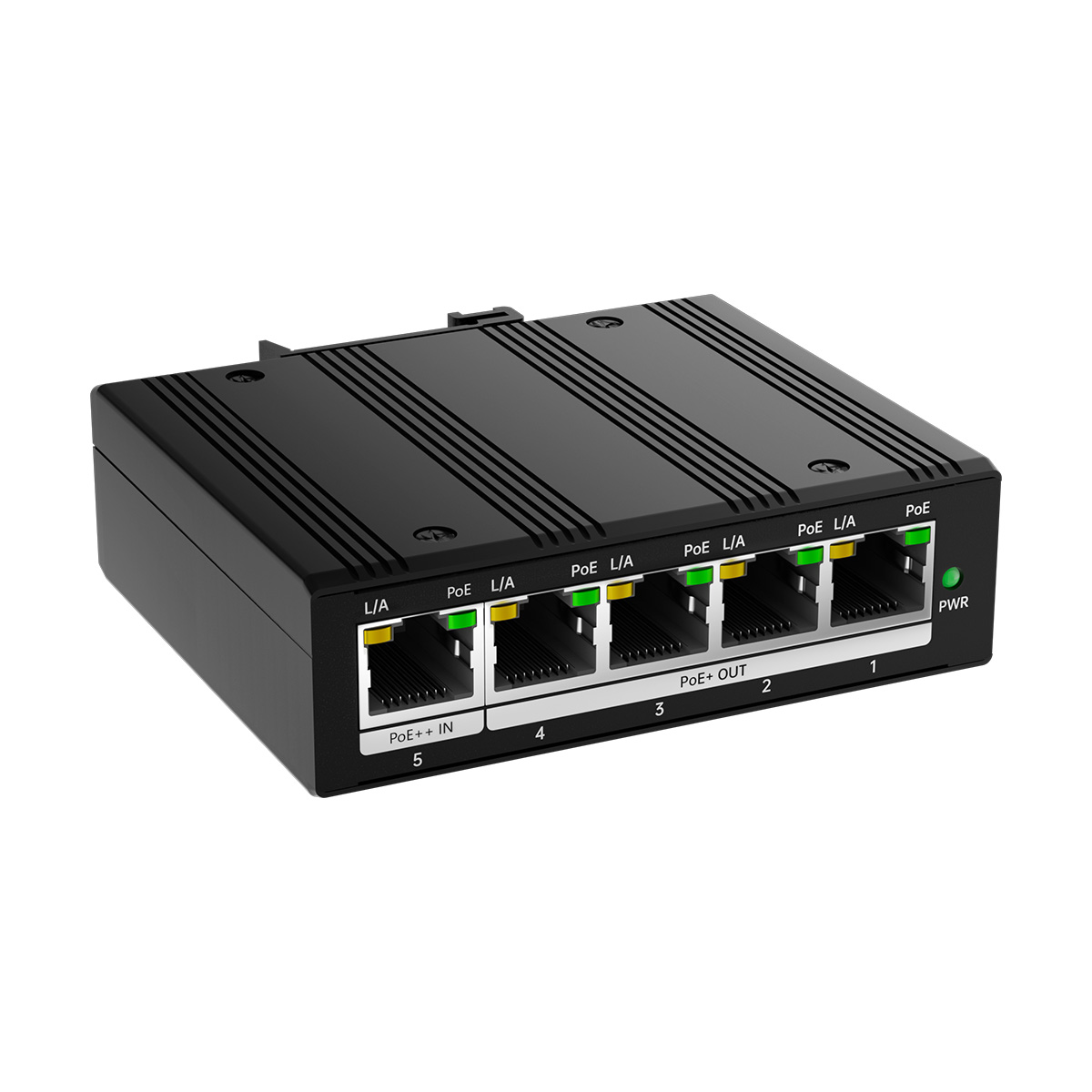

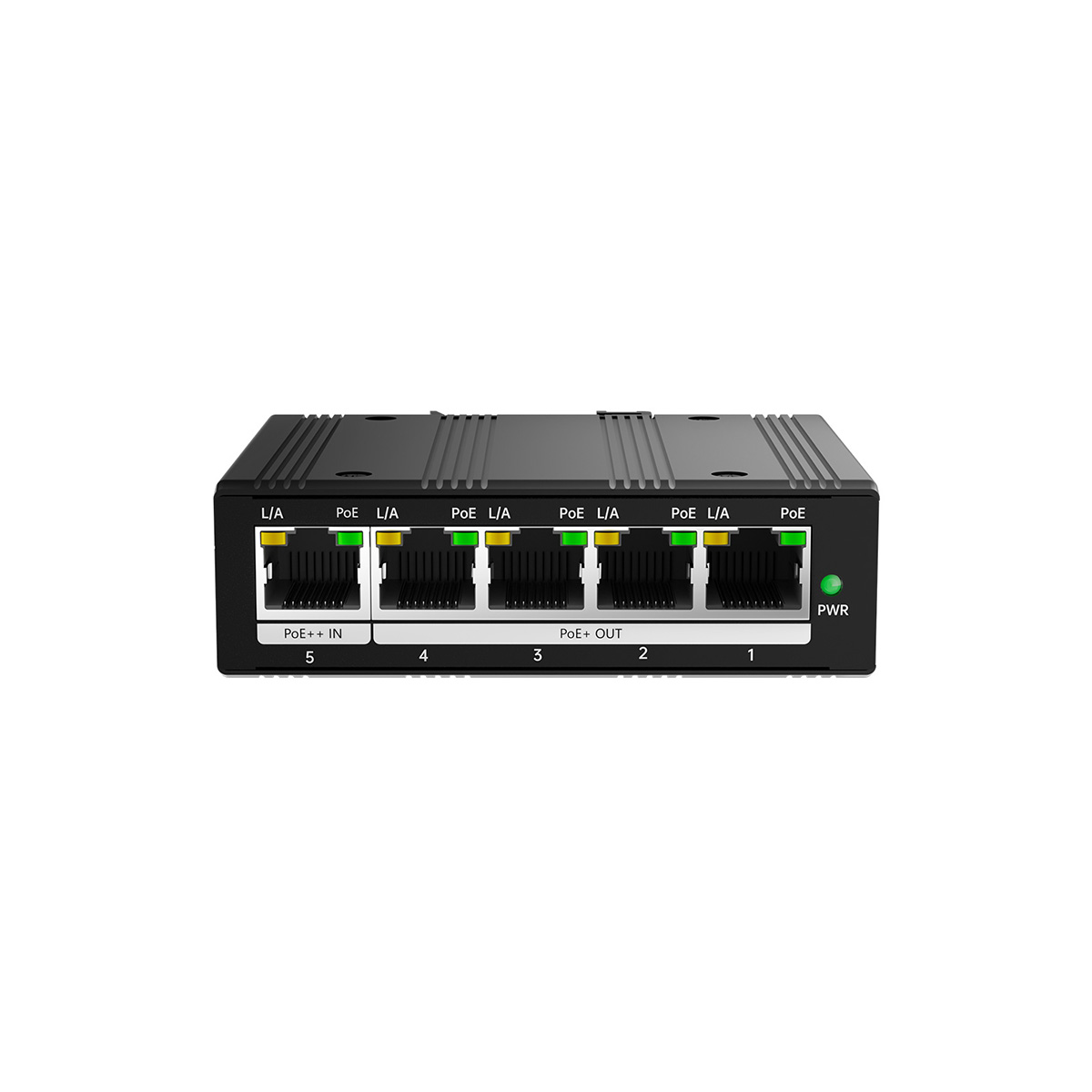

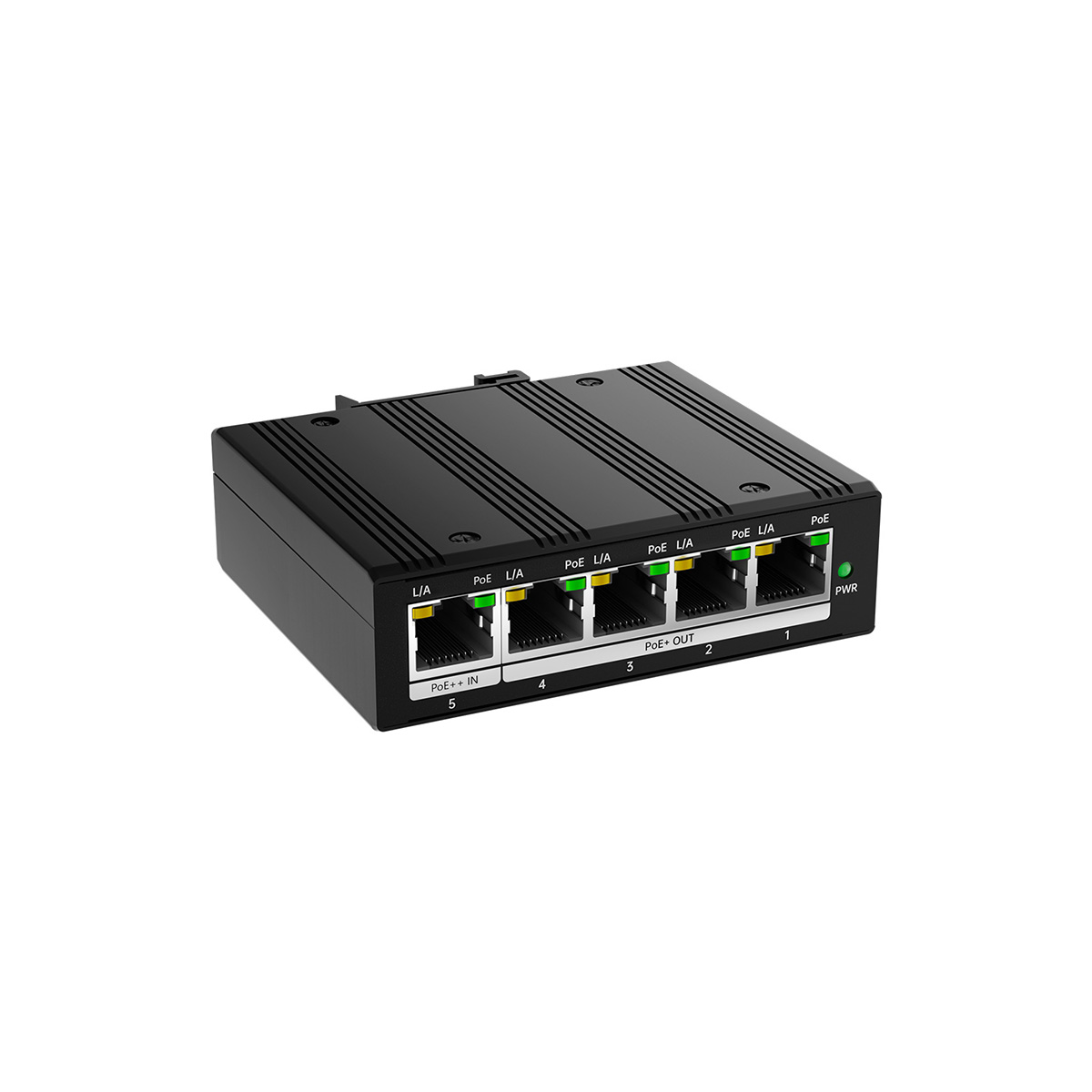

IES7211-EX04G-90W, 5 Channel Gigabit PoE Extender
The Benchu group's IES7211-EX04G-90W is an industrial-grade 5-Port PoE Passthrough Switch designed to deploy networks where power outlets and distance are constraints. It receives data and up to 90W of power via a single 802.3bt PoE++ input cable, then delivers both to four downstream devices, providing 30W of 802.3at PoE+ per port to IP cameras, APs, and IoT gear.
This compact unit breaks the 328ft distance barrier, acting as a powerful PoE extender to reliably transmit data and power up to 656ft (200m). Engineered for harsh environments, it operates in a wide-temperature range from -40°F to 167°F and is protected by a rugged metal housing with 6KV surge protection and IP40 dust resistance.
With its ultra-compact size, included DIN rail mount, and true plug-and-play setup, it enables fast, flexible, and outlet-free network expansion in outdoor, warehouse, and industrial installations.
Features
Wide-Temperature Industrial Design
Operates reliably from -40°F to 167°F (-40°C to 75°C), making it suitable for extreme environments like attics, rooftops, snow zones, and industrial sites without performance throttling.
6KV Surge Protection & IP40 Dust Resistance
Built with robust electrical shielding and dust-tight enclosure to withstand power surges, ESD events, and dusty conditions—ideal for outdoor and utility installations.
90W PoE++ Input & 4× 30W PoE+ Outputs
Receives up to 90W via 802.3bt PoE++ from an injector or upstream switch, delivering 30W per port (802.3at) to IP cameras, wireless APs, IP phones, and IoT controllers.

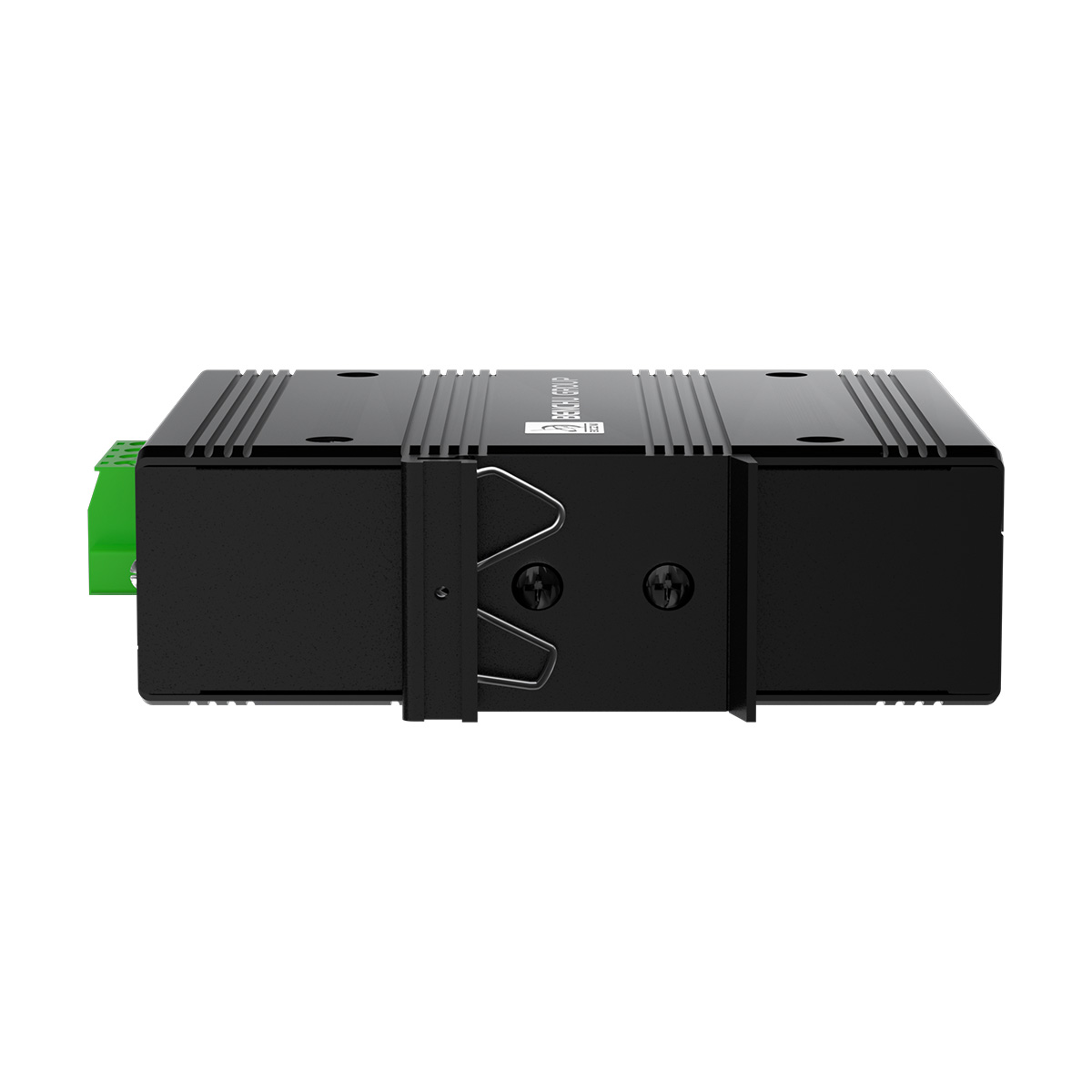

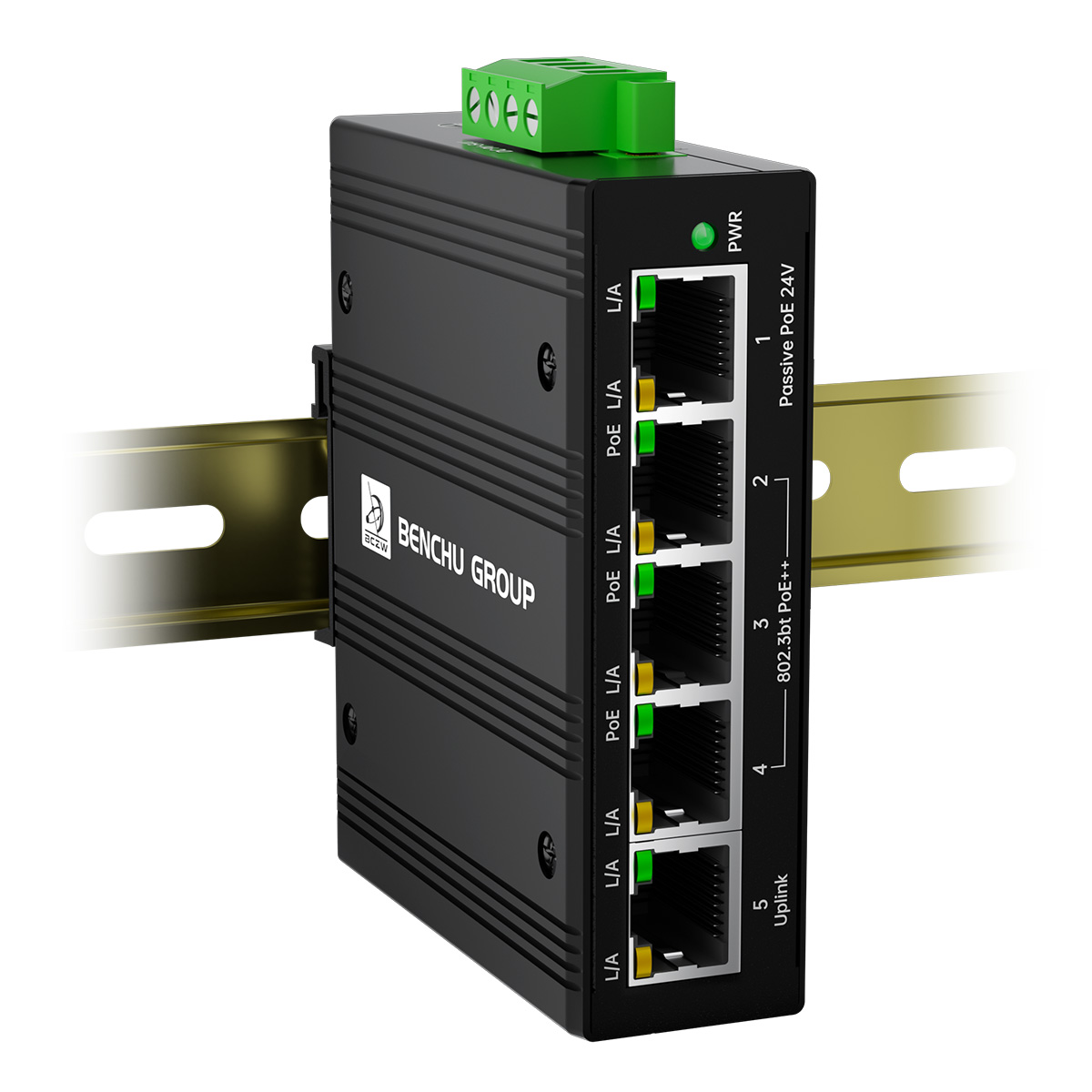

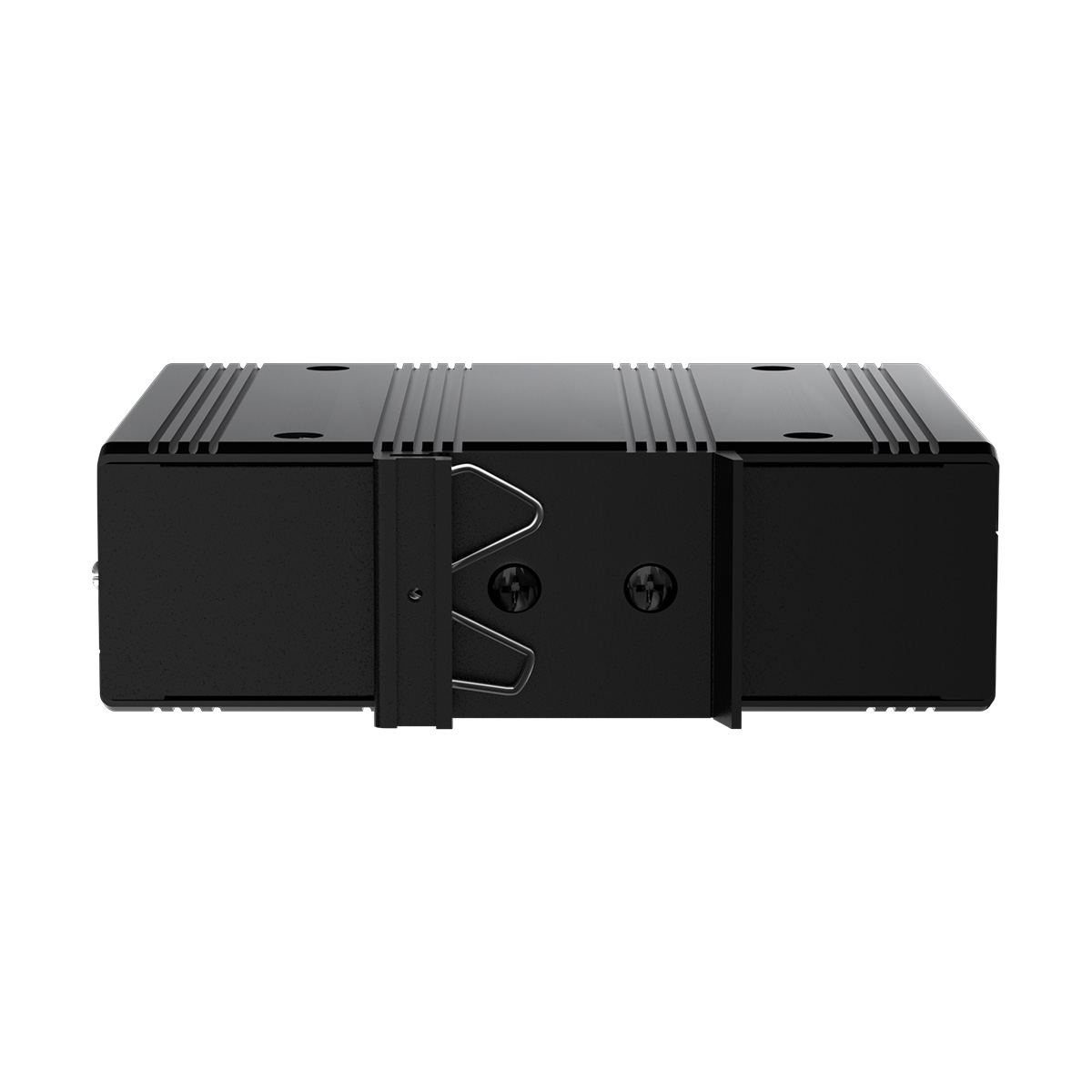

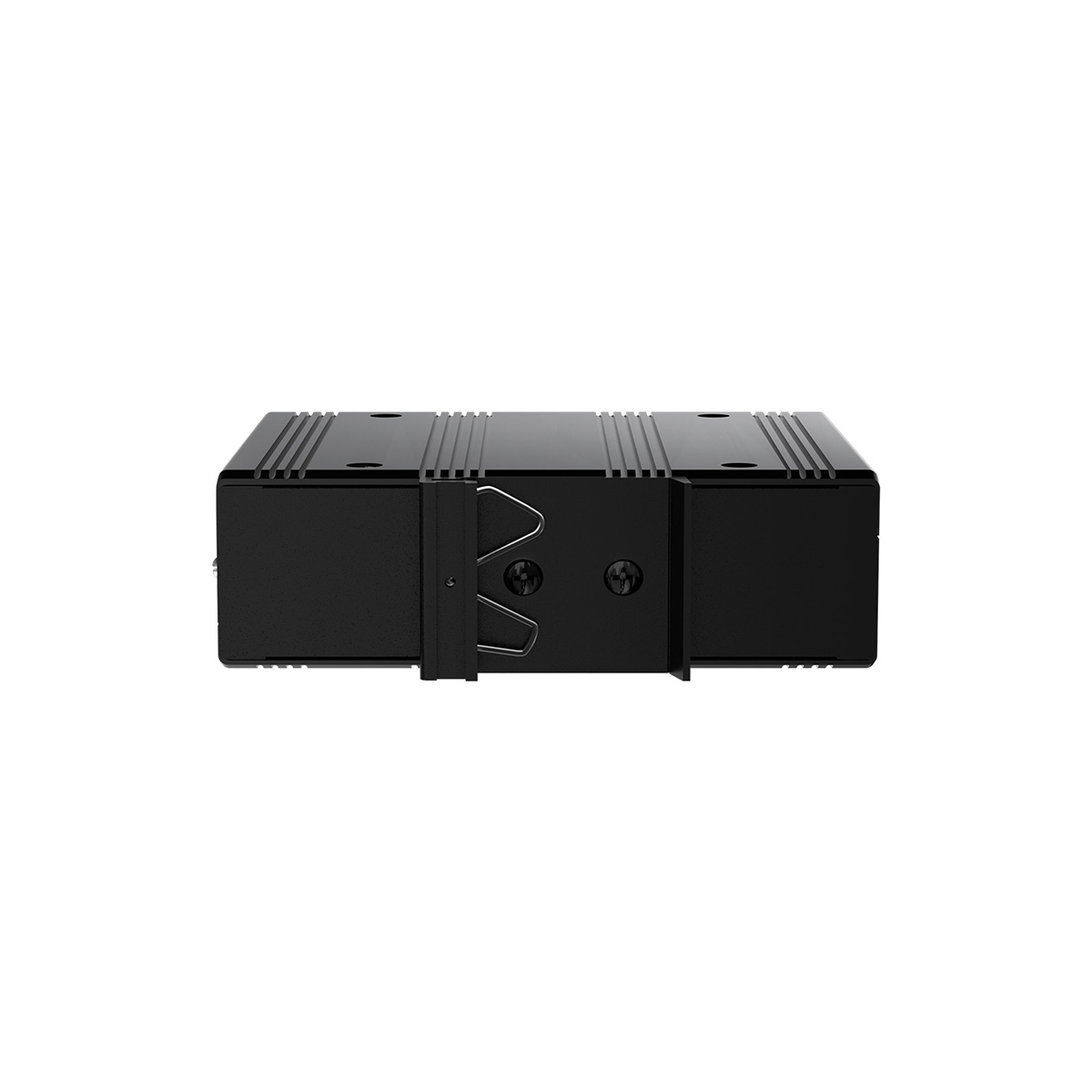

DIN Rail Mount & Ultra-Compact Size
Comes with a DIN rail clip for easy installation in electrical cabinets, junction boxes, or behind panels. Its mini footprint (about the size of a deck of cards) saves space in tight setups.
Long-Reach PoE Extension up to 656 ft
Break the 328 ft Ethernet limit. Place this PoE extender midway to double your reach—ideal for perimeter security, barns, large buildings, and remote sensor networks.
Connectivity Solutions

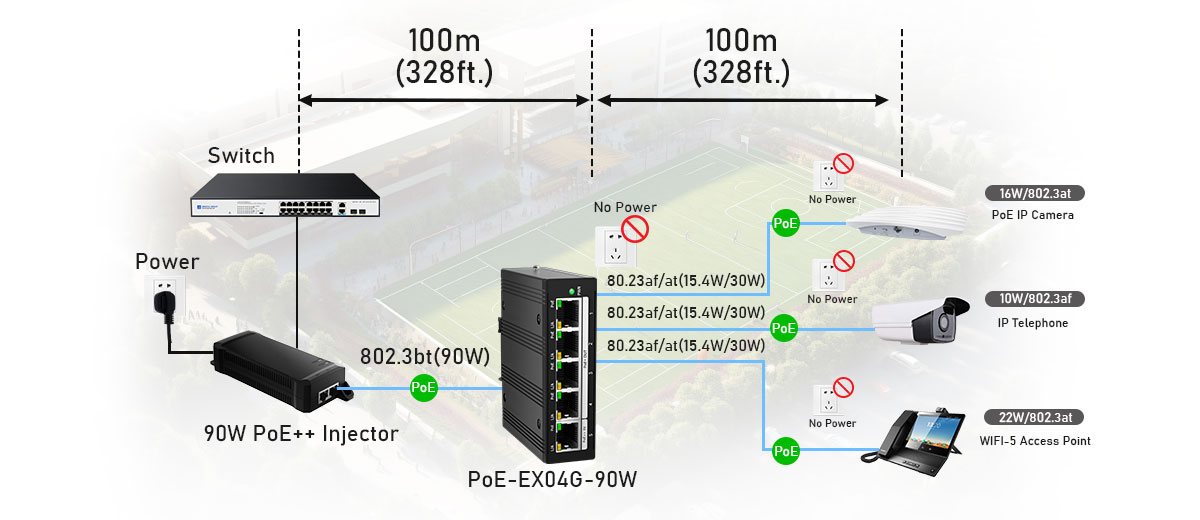

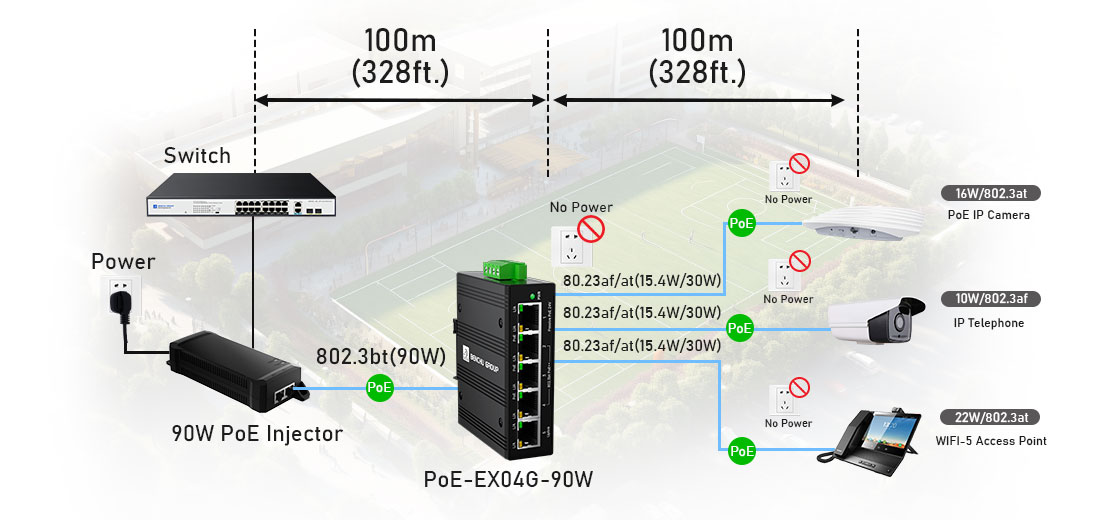

5 Channel Gigabit PoE Extender Connectivity Solution
Specification
| Model | PoE-EX04G-60W |
| Hardware Specifications | |
| Interface |
PoE in Port: 1 x 10/100/1000BASE-T Ethernet POE PD In PoE out Port: 4 x 10/100/1000BASE-T Ethernet POE PSE Out |
| LED Indicator | Link/ACT |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 4K MAC address table with auto learning function |
| Network Cable | UTP cat 5 or abover |
| Backplane bandwidth | 16Gbps |
| Packet forwarding rate | 11.46Mpps |
| Flow Control |
IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Dimensions (W x D x H) | 150 x89 x 28 mm (5.9in x 3.5in x 1.1in) |
| Weight | 0.46kg |
| Power over Ethernet (PoE) Specifications | |
| PoE Standard |
PoE in Port：IEEE 802.3af/at/bt PoE PD Per PoE out Port：EEE 802.3af/at PoE PSE |
| PoE Power |
PoE in Port：48~56V DC, max. 60 watts PoE out Port：48~56V DC, max. 28 watts |
| Power Pin Assignment |
PoE in Port：1/2(-), 3/6(+)；4/5(-), 7/8(+) PoE out Port：1/2(-), 3/6(+) |
| PoE Power Budget | 60W |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3at Power over Ethernet Plus Plus |
| Stability Testing |
IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Temperature |
Operating: -20~55 degrees C Storage: -40~75 degrees C |
| Humidity |
Operating: 5~90%, (non-condensing) Storage: 5~90% (non-condensing) |
| Regulatory Compliance | FCC Class A, CE Class A |
Downloads
- 5 Channel Gigabit PoE Extender Datasheet (IES7211-EX04G-90W)
