5-Port 10Gb PoE++ Switch Unmanaged | 802.3bt 90W per Port | 300W Power Budget | SP5210-4PTE1TE-4BT

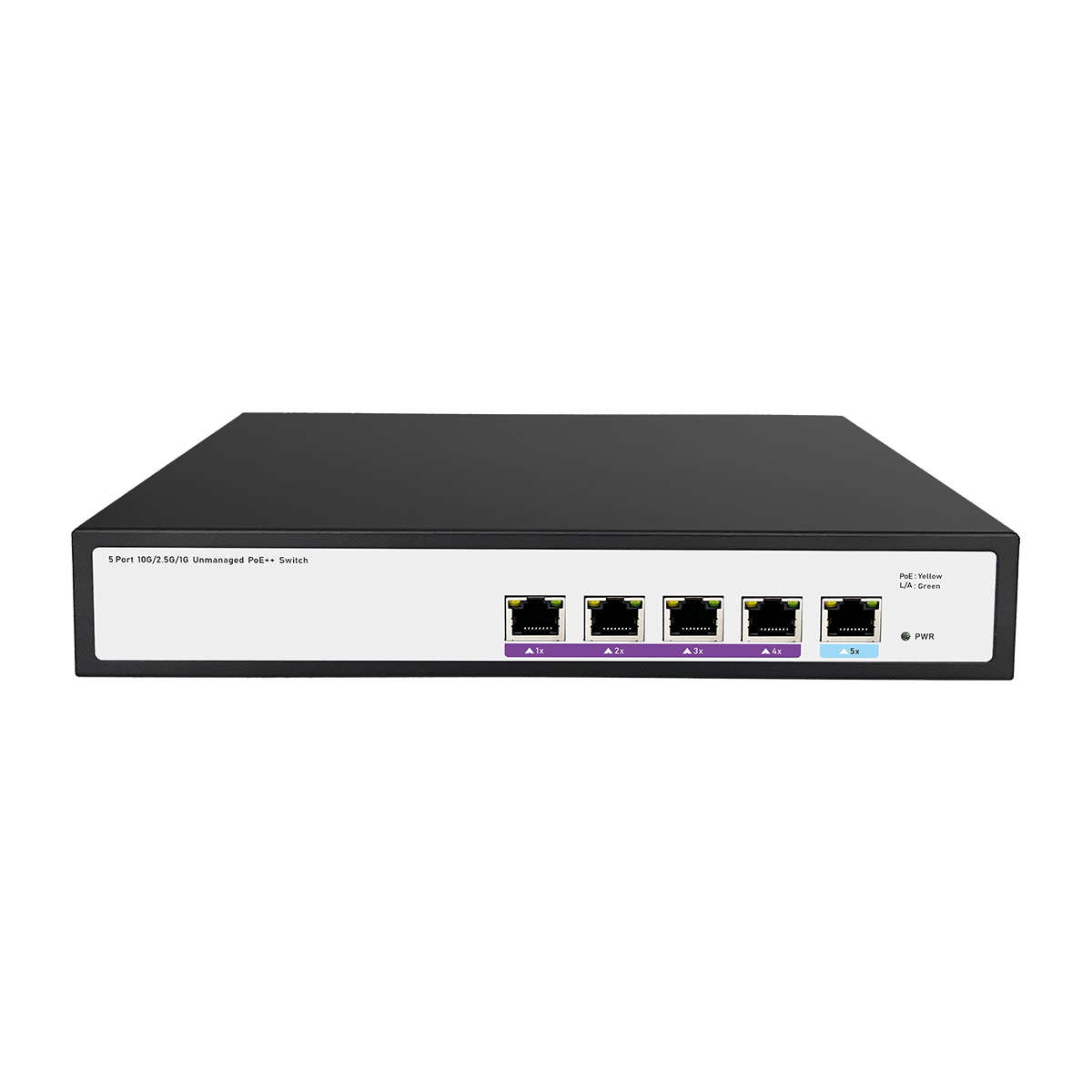

Front view of a 5-port 10G unmanaged PoE switch showing port layout and LED indicators.

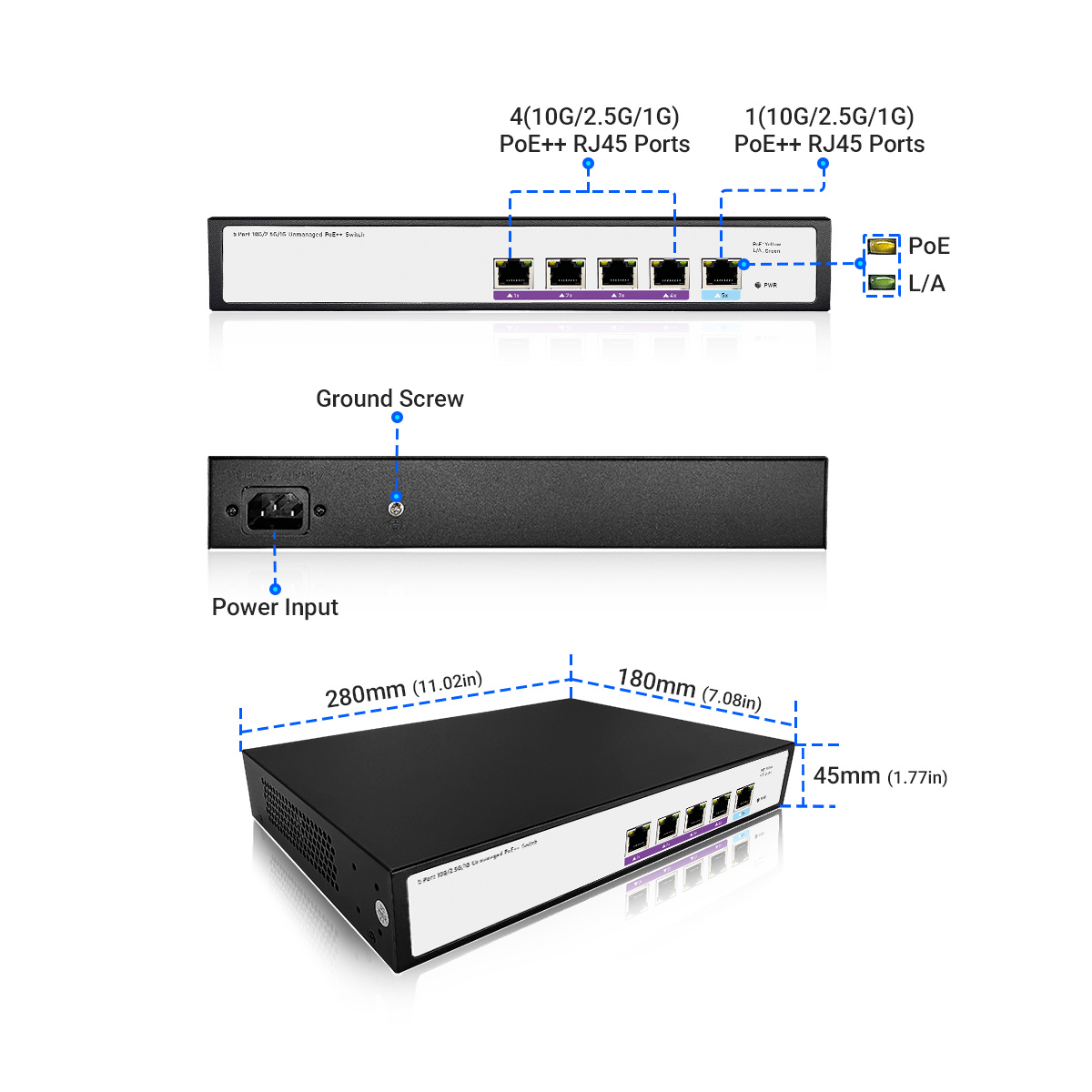

Interface and dimension diagram of a 5-port 10G unmanaged PoE switch showing port layout, LED indicators, rear AC power input, grounding stud, and product measurements.

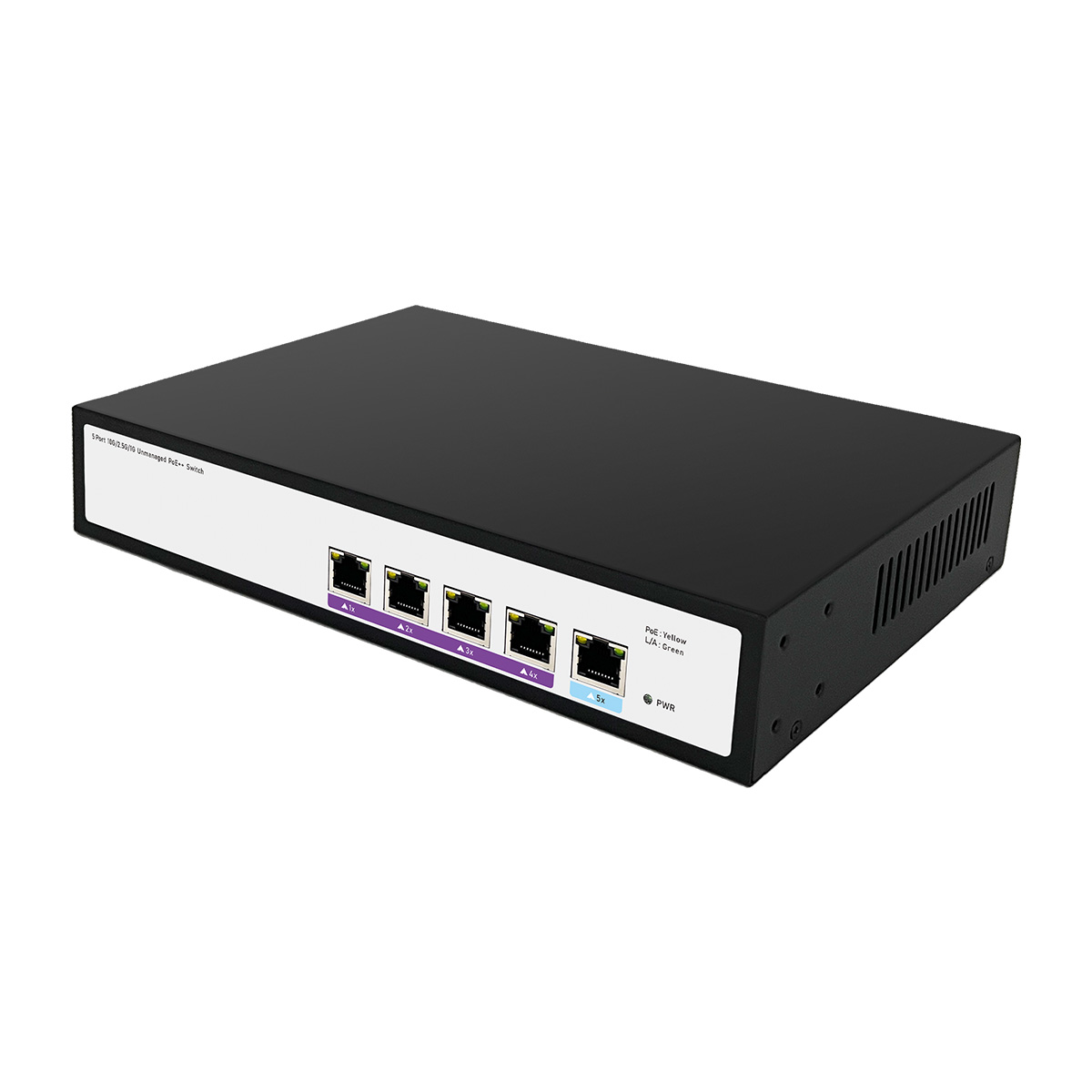

Left side view of a 5-port 10G unmanaged PoE switch showing ventilation openings and rack-mounting points.

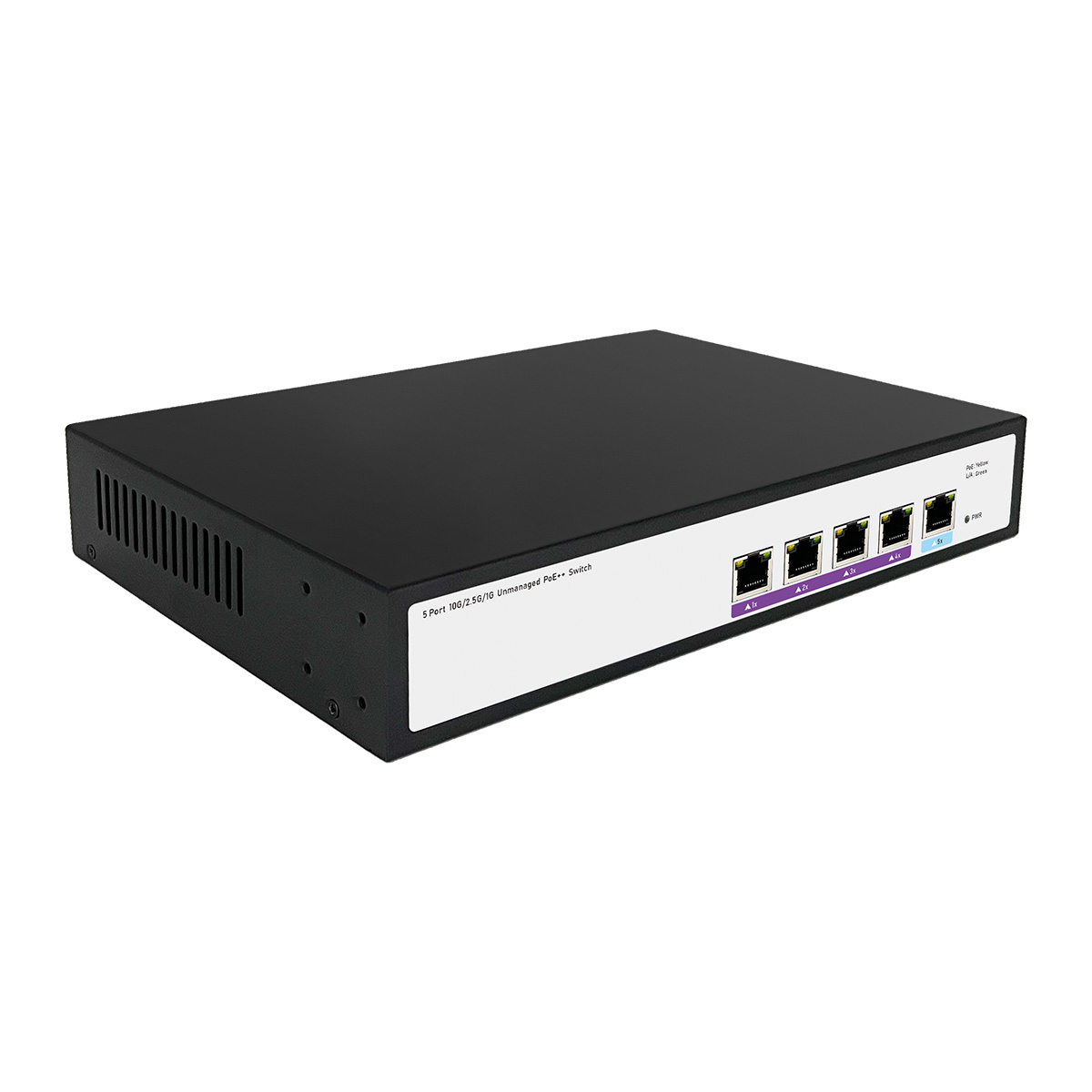

Right side view of a 5-port 10G unmanaged PoE switch showing ventilation openings and rack-mounting points.

5-Port 10Gb PoE++ Switch Unmanaged | 802.3bt 90W per Port | 300W Power Budget | SP5210-4PTE1TE-4BT

Renseignez-vous maintenant

5-port 10G unmanaged desktop switch packing a 300W budget. Provides 4x 90W PoE++ ports for Wi-Fi 7 APs, 8K video editing bays, and Edge AI nodes.



Product Highlights

    Next-Gen Wi-Fi 7 Backhaul Optimization: Purpose-built to unlock the maximum wireless capacity of enterprise Wi-Fi 7 APs, driving intense tri-band radio spikes over a 10Gbps line-rate copper pipeline.

    Ultra-HD 8K RAW Video Workflow Acceleration: Deploys a dedicated multi-gigabit network matrix for creative micro-studios, bridging all-flash NVMe NAS and 8K editing bays with zero packet buffering lag.

    Dedicated 10G Non-PoE Uplink Trunk: Engineered with 4 × 10G PoE++ downlinks and 1 × standalone 10G Base-T uplink to guarantee non-blocking, full-wirespeed aggregation back to the main routing core.

    Extreme 300W Power Density Deployment: Concentrates a massive 300W total PoE budget across just 4 power drops, allowing every downlink port to simultaneously draw full 75W-90W loads without throttling.

    Plug-and-Play Hardware-Level Simplicity: An unmanaged desktop framework requiring absolutely zero software setups or IP assignments, dropping installation times to seconds while removing firmware crash risks.



5-Port 10G PoE++ Switch | Compact Multi-Gigabit Unmanaged Network Hub | SP5210-4PTE1TE-4BT

300W High-Density Desktop Powerhouse Engineered for 8K Media, Wi-Fi 7 Clusters, and Edge AI Inference

Maximum Power Density Edge Hub: Dedicated 10Gbps Wirespeed Pipeline for Micro-Studios

The 5-Port 10G Base-T Unmanaged Ultra PoE++ Switch is an elite, compact network edge solution purpose-built to accelerate next-generation local high-bandwidth nodes. Configured with 4 dedicated 10-Gigabit PoE++ downlink ports and 1 independent 10-Gigabit non-PoE uplink channel, this plug-and-play desktop hardware matrix bypasses complex software configuration overhead entirely. Packing a massive 300W centralized power budget across just 4 power drops, it guarantees uncompromised, simultaneous 75W-90W peak delivery per port under full load. Operating on a non-blocking 100Gbps physical switching backplane, it offers the ultimate lag-free localized connectivity framework for micro creative studios running ultra-high-definition 4K/8K media streams, decentralized Wi-Fi 7 wireless clusters, and standalone hardware-level Edge AI computing infrastructures.

Target Localized Multi-Gigabit Applications

This ultra-compact 10G hardware powerhouse is engineered specifically for localized micro-clusters demanding absolute data speed and persistent extreme power injection:

Micro-Studio 8K Video Workflows

Bridges local all-flash NVMe NAS storage boxes, high-end 8K video editing bays, and high-wattage control consoles directly. Enables real-time, frame-accurate RAW media file playback and lightning-fast rendering exports with zero buffering delays.

Localized Wi-Fi 7 AP Micro-Cells

Acts as the localized infrastructure core for small offices or VIP conference halls. Delivers maximum 10Gbps copper backhauls to enterprise-grade Wi-Fi 7 access points, supplying the massive multi-band radio power spikes needed to prevent wireless drops.

Standalone Edge AI Inference Nodes

Powers compact machine-vision automation boxes and high-draw edge computing units. The 300W pool feeds severe, erratic processing power spikes, while the 10Gbps line throughput transfers massive raw video feeds instantly to localized neural nets.

Key Product Features & Technical Advantages

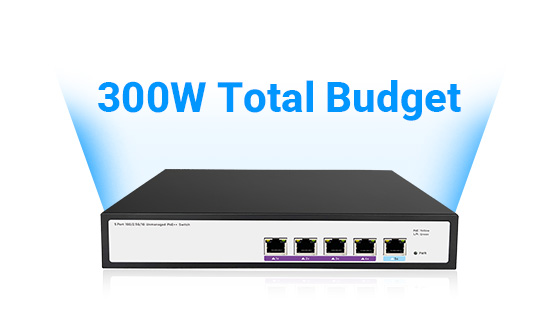

Compact 5-port 10GbE network switch concentrating a massive 300W total budget across just 4 power drops for unthrottled PoE++ delivery.

300W Extreme Density

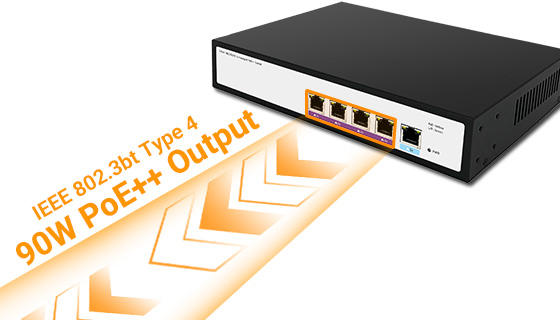

Concentrates a massive 300W power pool across just 4 downlink channels, allowing every single port to concurrently draw full 75W-90W loads.

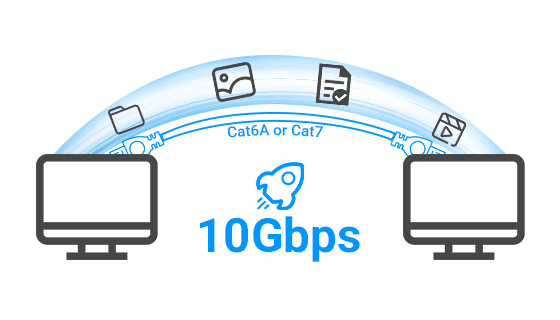

Independent non-PoE 10Gbps RJ45 uplink port engineered for bottleneck-free backbone aggregation to core server networks.

Dedicated 10G Uplink Trunk

Engineered with an independent, non-PoE 10G RJ45 trunk port, ensuring bottleneck-free data aggregation back to your core routing server.

A high-performance localized 10GbE copper network accelerating real-time 8K video editing workflows and all-flash NVMe NAS transfers.

8K Editing Acceleration

Bridges all-flash NAS arrays and high-end edit bays over 10G wirespeed paths, unlocking real-time, frame-accurate 8K multimedia rendering.

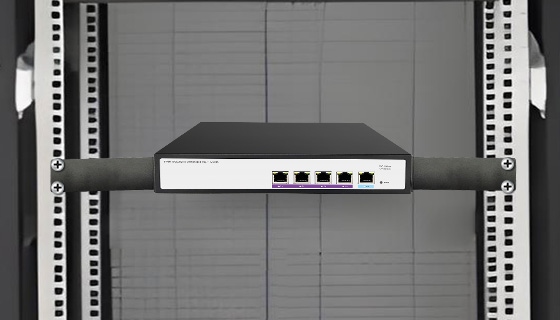

Premium sleek desktop-sized metal switch housing optimized for localized workspace and production desk integration.

Desktop Micro-Cluster

Features a sleek, space-saving desktop footprint optimized for production desks, field kits, or localized enclosure integration.

Enterprise Wi-Fi 7 Access Point cluster drawing stable 60-90W high-power spikes over an ultra-fast 10G copper backhaul link.

Wi-Fi 7 Backhaul Perfected

Feeds the massive 10Gbps pipelines required by next-gen Wi-Fi 7 APs, managing aggressive tri-band wireless radio voltage drops smoothly.

Standalone machine-vision automation unit receiving steady high-wattage power and massive real-time data feeds via a 10G PoE switch.

Edge AI Deployment Hub

Powers machine-vision hardware arrays and AI processing boxes, absorbing erratic current spikes during peak machine-learning inference loads.

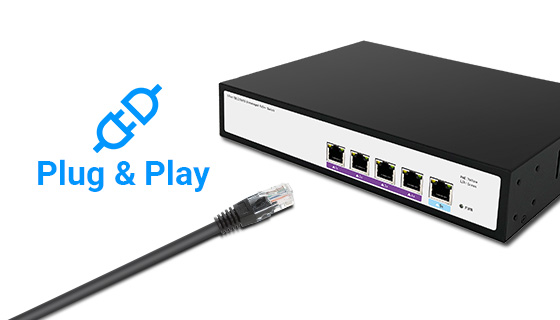

Pure hardware switching logic eliminating software vulnerabilities, OS kernel panics, and firmware-driven downtime.

Zero Firmware Risk

Utilizes a pure unmanaged ASIC plane to switch physical layers natively, fundamentally removing software system crashes and security exploits.

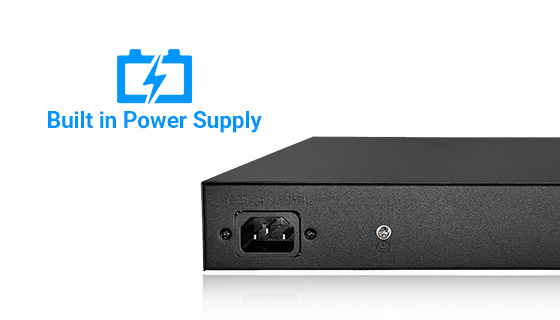

Interior look showing an industrial integrated wide-range AC power module housed directly inside a 5-port compact metal casing.

All-Built-In Power Supply

Houses an industrial wide-voltage power block inside the casing, keeping your localized work areas free of clumsy, bulky brick adapters.

5-Port 10G Ultra PoE++ Connectivity Solutions



High-density desktop power injection and non-blocking 10Gbps pipeline architectures for localized micro-clusters.

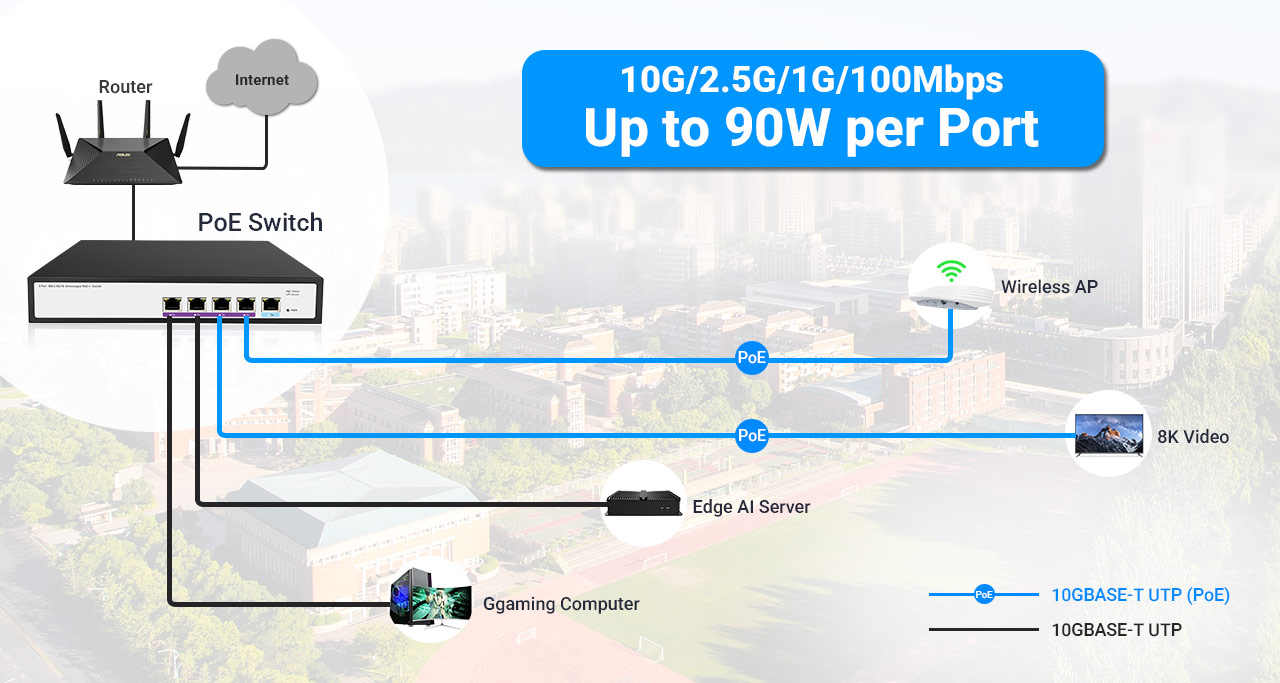

5-Port Compact Unmanaged 10GbE Switch 300W Desktop Localized Micro-Cluster Network Topology Diagram

Localized Multi-Gigabit Edge Topology

  • 1. Micro-Studio 4K/8K RAW Video Production Network Accelerate content creation workflows within independent production bays. Utilize the independent 10G non-PoE uplink channel to lock onto a high-speed centralized NVMe NAS storage system, while using the 4 remaining 10G Base-T ports to bridge multiple all-flash editing workstations and heavy-duty PoE++ audio-video consoles, achieving real-time zero-lag multi-stream rendering.
  • 2. High-Density Localized Wi-Fi 7 Micro-Cells Form an ultra-performance wireless cluster inside high-traffic executive lounges or open offices. With a massive 300W total power pool dedicated across just 4 channels, this desktop hub allows all 4 connected flagship Wi-Fi 7 Access Points to simultaneously draw peak 75W-90W loads, providing smooth airtime management without radio power drops.
  • 3. Standalone Edge AI Vision Inference Clusters Bypass heavy multi-rack infrastructure overhead on automated factory fields. Deploy this sleek unmanaged switch directly inside localized machine-vision boxes to feed power-hungry GPU edge AI inference boxes and multi-gigabit thermal cameras, distributing huge uncompressed data blocks with zero firmware latency.

Specification

Technical Specifications Details / Parameters
Product Model SP5210-4PTE1TE-4BT
Product Type 5-Port 10G Base-T Unmanaged Ultra PoE++ Switch
Downlink Ports 4 x 10GBase-T RJ45 PoE++ Ports (Ultra-High-Speed Power Delivery)
Uplink Ports 1 x 10GBase-T RJ45 Non-PoE Port (Dedicated Wirespeed Backbone Trunk)
PoE Compliance IEEE 802.3bt PoE++ (Type 4 standard), Backward Compatible with 802.3at / 802.3af
Per-Port Power Output Up to 90W max per single downlink port (Hardware auto-sensing and surge mitigation)
Total Power Budget 300W Max High-Density PoE Power Pool (Enables full 75W load across all 4 channels simultaneously)
Switching Capacity 160 Gbps (Non-blocking wirespeed full-duplex switching fabric)
Packet Forwarding Rate 74.4 Mpps (MAC Address Table: 16K, Jumbo Frame: 9K)
Network Management Unmanaged (Pure Plug-and-Play hardware logic, zero firmware vulnerability or OS crash risk)
Product Dimensions 280mm × 180mm × 44.5mm – Desktop or Rack-mount
Transmission Media Cat6A, Cat7, or Cat8 Shielded Twisted Pair (STP) Copper Lines (Up to 100 meters)
Power Input Internal Universal Module AC 100V~240V, 50/60Hz (Removes space-consuming external power bricks)

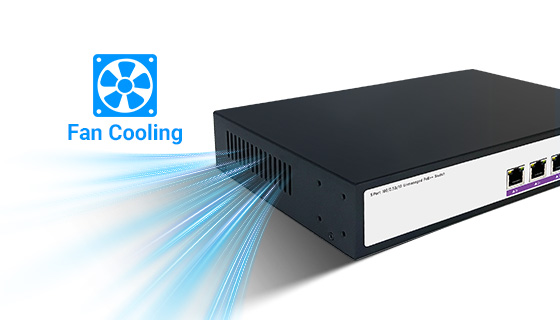

Enclosure & Ventilation Ruggedized SECC Galvanized All-Metal Chassis; Integrated High-Efficiency Cooling Fan Assembly
Environmental Limits Operating: -10°C to 50°C (14°F to 122°F); Storage Threshold: -30°C to 75°C

Frequently Asked Questions (FAQ)


Q1: Why does a compact 5-port 10G switch need such a massive 300W total PoE power budget?▼
This extreme 300W power density layout is intentionally engineered to avoid the "power throttling" common in compact hubs. With only 4 dedicated PoE++ downlink ports, a 300W pool guarantees that all 4 ports can concurrently draw full 75W-90W loads under the IEEE 802.3bt standard. This enables localized micro-clusters to drive 4 heavy-duty Wi-Fi 7 access points, active heater-equipped dome PTZ cameras, or edge AI computing nodes at maximum capacity simultaneously without any power drops.
Q2: What is the architectural advantage of the 4 PoE++ ports and 1 independent non-PoE uplink port layout?▼
For creative video editing studios and micro-clusters, this port topography ensures absolute data plane segregation. The independent 10G non-PoE RJ45 port acts as a high-speed backbone trunk link tied straight to a central server or an all-flash NVMe NAS storage system. This leaves the 4 remaining 10G Base-T PoE++ ports entirely dedicated to feeding edge-powered devices or editing stations, guaranteeing non-blocking, full-wirespeed throughput with zero local channel interference.
Q3: How does this switch handle heavy network congestion during real-time 8K RAW video rendering or massive AI inference tasks?▼
The switch operates on an enterprise-grade 160Gbps non-blocking physical switching backplane combined with a high-capacity packet forwarding engine (74.4 Mpps). This raw hardware matrix easily processes concurrent, massive uncompressed data blocks generated by 8K media rendering, flash network transfers, and real-time machine-vision neural networks, keeping packet-loss at absolute zero with no software routing bottlenecks.
Q4: Since this is an unmanaged plug-and-play switch, how is high-wattage power safety and overload protection maintained?▼
Safety is executed entirely at the silicon level. The built-in ASIC hardware power management matrix features auto-sensing protocols that actively negotiate the exact voltage class required by the terminal device before injecting any power. It features instant short-circuit isolation, thermal overload shutdown, and lightning surge protection per port, providing ironclad electrical defense for premium Wi-Fi 7 APs and AI nodes without needing manual firmware configuration.
Q5: What makes this compact 5-port 10G PoE++ unmanaged desktop switch a superior localized edge choice for modern installations?▼
Traditional compact desktop switches only support standard 1G speeds or low-wattage 30W PoE+, which chokes under next-gen 8K video streaming and fails to boot power-dense tri-band Wi-Fi 7 units. On the other hand, traditional 8-port or larger rackmount enterprise switches are bulky and noisy, making them a poor fit for specialized local workstations. Our 5-Port 10G Base-T Compact Unmanaged Ultra PoE++ Switch solves this by integrating uncompromised 10Gbps line-rate data and an intense 300W power pool inside a sleek desktop metal chassis with an internal AC supply. It gives creators and integrators a compact, silent, zero-configuration micro-hub that delivers massive throughput and elite power redundancy precisely where it is needed most.

Resource Download Center



Get the complete technical documents and dimension drawings for your localized project planning.


PDF



Product Datasheet (PDF)

Includes compact 5-port 10G unmanaged switch hardware specifications, independent 10G uplink port distributions, 300W extreme power density metrics for desktop 8K video bays and Edge AI clusters, product dimensions, and compliance certifications.

📥 Download Datasheet

10G Base-T Ultra PoE++ Series Options



Compare our unmanaged 10-Gigabit hardware matrix to select the optimal port density and deployment architecture for your network infrastructure.

Current Device
SP5210-4PTE1TE-4BT 5-Port 10G Compact Unmanaged PoE++ Network Switch Product Thumbnail

SP5210-4PTE1TE-4BT

5-Port 10G Unmanaged Ultra PoE++ Switch

The ultimate micro-cluster powerhouse for compact workspaces. Configured with 4 × 10G PoE++ downlinks and 1 × dedicated 10G uplink trunk**. Packing a massive 300W total budget across fewer drops, it yields extreme per-port wattage redundancy, perfectly tailored for localized 8K RAW video editing, standalone Edge AI inference nodes, and localized Wi-Fi 7 micro-cells.

4 × 10G PoE++ + 1 × 10G Uplink | 300W Budget
Alternative Choice
SP5210-8PTE-8BT 8-Port Full 10G Unmanaged PoE++ Network Switch Product Thumbnail

SP5210-8PTE-8BT

8-Port Full 10G Unmanaged Ultra PoE++ Switch

The ideal choice for scaled edge deployment. Features 8 fixed 10G Base-T copper ports with a 160Gbps backplane fabric. Dynamically shares its 300W power budget across 8 endpoints to inject up to 90W PoE++ (802.3bt). Perfect for distributing multi-gigabit pipelines across mid-sized offices, multi-node storage networks, and full perimeter tracking matrices.
