24W Gigabit PoE Splitter, 10/100/1000Mbps PoE+, 12V DC 2A Output, PoE-SP02G-AT

High power POE splitter
POE+ splitter

24W Gigabit PoE Splitter, 10/100/1000Mbps PoE+, 12V DC 2A Output, PoE-SP02G-AT

Get Editable Specs & Price List →

This 24W gigabit PoE+ splitter separates PoE power from gigabit ethernet data, providing 12V 2A DC output for IP cameras, wireless APs, and other non-PoE devices requiring fast network connectivity.

Product Highlights
    • 24W PoE+ Power — Provides up to 24W to power compatible 12V Ethernet devices.
    • Gigabit Data Connectivity — Supports Gigabit Ethernet for IP cameras, wireless APs, and other bandwidth-demanding network devices.
    • 12V DC 2A Output — Delivers stable 12V power for compatible non-PoE equipment.
    • Power & Data Separation — Splits PoE power and Ethernet data for devices with separate power and network inputs.
    • Easy PoE Integration — Adds PoE capability to compatible non-PoE devices through an existing PoE network.
    • Compact Plug-and-Play Design — Simplifies installation without software configuration.
    • OEM/ODM & Private Label — Flexible customization and private-label manufacturing for networking, security, and communications brands.

CE FCC ROHS

24W Gigabit PoE Splitter | 802.3af/at PoE+ to 12V DC 2A | 10/100/1000Mbps | OEM / ODM

Powering Non-PoE Network Devices over Standard Ethernet with 12V DC Output

The 24W Gigabit PoE Splitter separates power and data from an IEEE 802.3af/at PoE+ network connection, delivering up to 12V DC at 2A to non-PoE network devices while maintaining 10/100/1000Mbps Gigabit Ethernet data transmission. It provides a practical way to deploy 12V equipment over a single Cat5e/Cat6 Ethernet cable, eliminating the need for a separate AC power connection at the device location. For system integrators and network equipment brands, this PoE splitter simplifies installation, reduces cabling requirements, and enables existing non-PoE devices to operate from centralized PoE infrastructure.

Target Applications & Flexible Deployment

Designed for network upgrades, security deployments, and OEM applications where non-PoE devices require 12V DC power over Ethernet:

Powering Non-PoE Network Devices

Adds PoE power capability to existing 12V non-PoE devices such as IP cameras, wireless access points, network terminals, and other Ethernet equipment without replacing the original device hardware.

Single-Cable Network Deployment

Combines Gigabit Ethernet data and DC power over a single Cat5e/Cat6 cable, reducing separate power wiring and simplifying installation where local AC outlets are unavailable or inconvenient.

Centralized PoE Infrastructure

Works with standard IEEE 802.3af/at PoE+ switches to centralize power delivery, making it easier for system integrators to manage distributed 12V devices through existing PoE network infrastructure.

```

Key Product Features & Technical Advantages

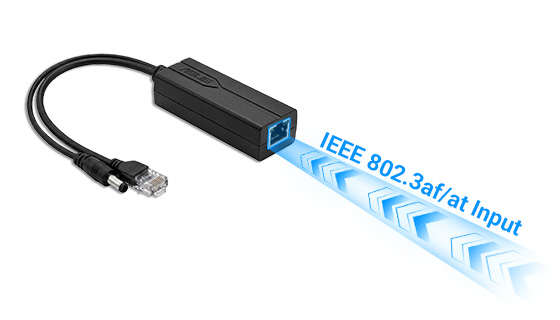

24W Gigabit PoE splitter PoE-SP01-AT with IEEE 802.3af/at PoE+ input from standard PoE switch.

IEEE 802.3af/at PoE+ Input

Fully compliant with IEEE 802.3af/at standards, accepting up to 30W PoE input from any standard PoE/PoE+ switch via a single Cat5e/Cat6 cable.

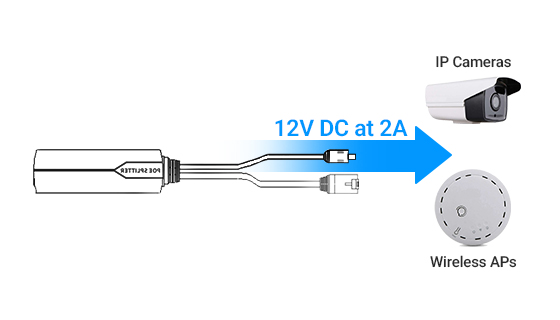

12V DC 2A regulated output from 24W Gigabit PoE splitter for IP cameras, access points, and non-PoE devices.

12V DC 2A Regulated Output

Converts PoE input to stable 12V DC at 2A (24W max), powering IP cameras, wireless APs, VoIP phones, and other 12V network devices.

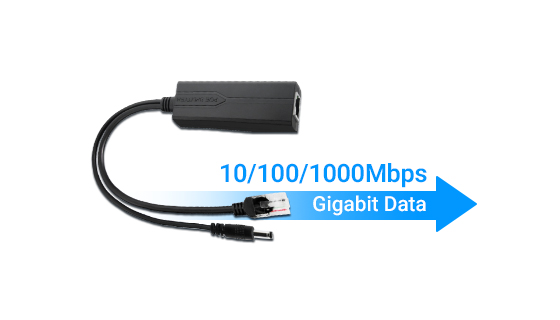

10/100/1000Mbps Gigabit Ethernet data passthrough with zero bandwidth loss on 24W PoE splitter.

10/100/1000Mbps Gigabit Data

Full Gigabit Ethernet passthrough with zero bandwidth loss. Supports 4K IP cameras, Wi-Fi 6 APs, and high-throughput devices without speed reduction.

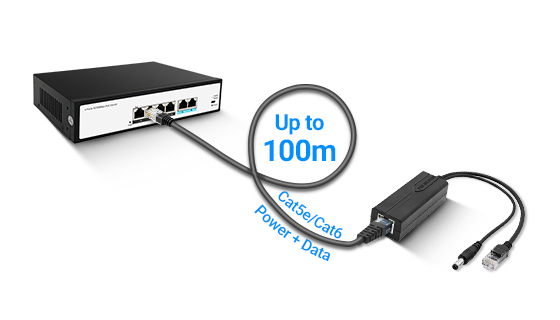

Single Cat5e/Cat6 cable delivering PoE power and Gigabit data to non-PoE 12V device via Benchu PoE splitter.

Single-Cable Power + Data

Delivers power and data over one Cat5e/Cat6 cable up to 100m, eliminating local AC outlets and reducing cabling cost by up to 50%.

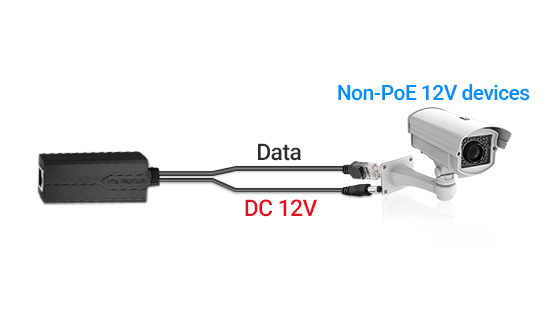

Benchu PoE splitter enabling legacy non-PoE 12V IP cameras and network devices to use modern PoE switch infrastructure.

PoE Upgrade for Legacy Devices

Enables existing non-PoE 12V devices to operate on PoE infrastructure without hardware replacement — ideal for phased surveillance and network upgrades.

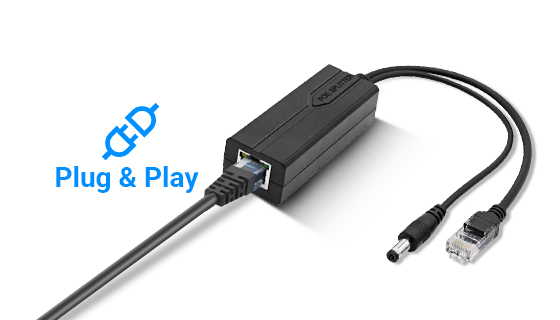

Plug and play 24W Gigabit PoE splitter installation requiring zero software configuration or network setup.

Plug-and-Play, Zero Config

No drivers, no software, no configuration. Connect PoE input, plug DC output, done. Deploy hundreds of endpoints in minutes.

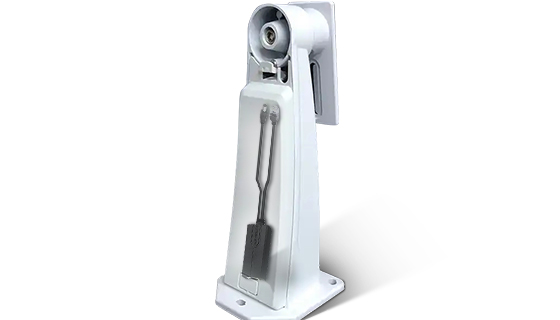

Compact Benchu PoE splitter fitting inside camera housings, junction boxes, and network enclosures.

Compact & Space-Saving

Ultra-compact body fits inside camera housings, junction boxes, and wall enclosures — designed for space-constrained installations.

Benchu 24W PoE splitter compatible with 12V IP cameras, wireless bridges, VoIP phones, and IoT gateways.

Broad 12V Device Compatibility

Works with any 12V DC device up to 2A: IP cameras, wireless bridges, VoIP phones, access control, and IoT gateways.

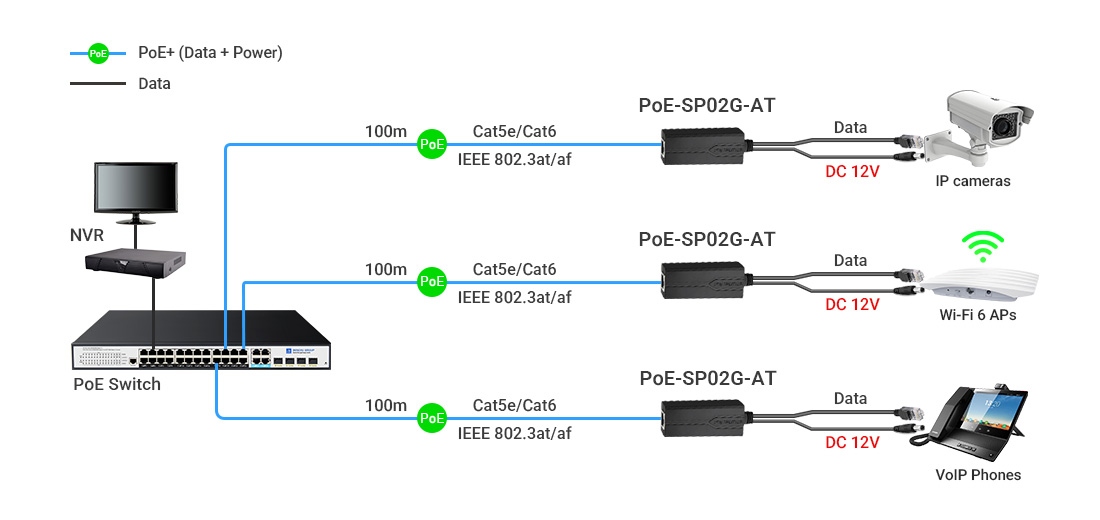

Network Connection & Deployment Topology



Connect any standard PoE/PoE+ switch to non-PoE 12V devices via a single Ethernet cable. The PoE-SP02G-AT splits PoE input into separate 12V DC power and Gigabit Ethernet data outputs at the endpoint.

Network topology showing PoE switch connected via single Cat5e/Cat6 cable to Benchu PoE-SP01-AT splitter, outputting 12V DC power and Gigabit Ethernet data separately to non-PoE IP camera, wireless AP, or VoIP phone.

Typical Connection Scenarios

  • 1. PoE-Powered IP Camera Surveillance Connect a PoE switch to non-PoE 12V IP cameras via a single Cat5e/Cat6 cable up to 100m. The splitter delivers stable 12V DC power and full Gigabit data to each camera endpoint, eliminating the need for local AC outlets or separate power adapters at every camera location.
  • 2. Wireless AP & Bridge Power Delivery Power 12V wireless access points, CPEs, and point-to-point bridges from centralized PoE infrastructure. The splitter provides clean regulated 12V DC at 2A with full Gigabit throughput, supporting Wi-Fi 6 APs and high-bandwidth wireless links without speed degradation.
  • 3. Enterprise Endpoint & IoT Device Integration Deploy VoIP phones, access control terminals, IoT gateways, and network encoders on existing PoE infrastructure. Simply plug the splitter between the PoE switch port and any 12V DC Ethernet device — zero configuration, no external power supply, instant plug-and-play connectivity.

Technical Specifications

Parameter Specification
Product Model PoE-SP02G-AT
Equipment Type Gigabit PoE Splitter (PoE to 12V DC Power + Ethernet Data Separator)

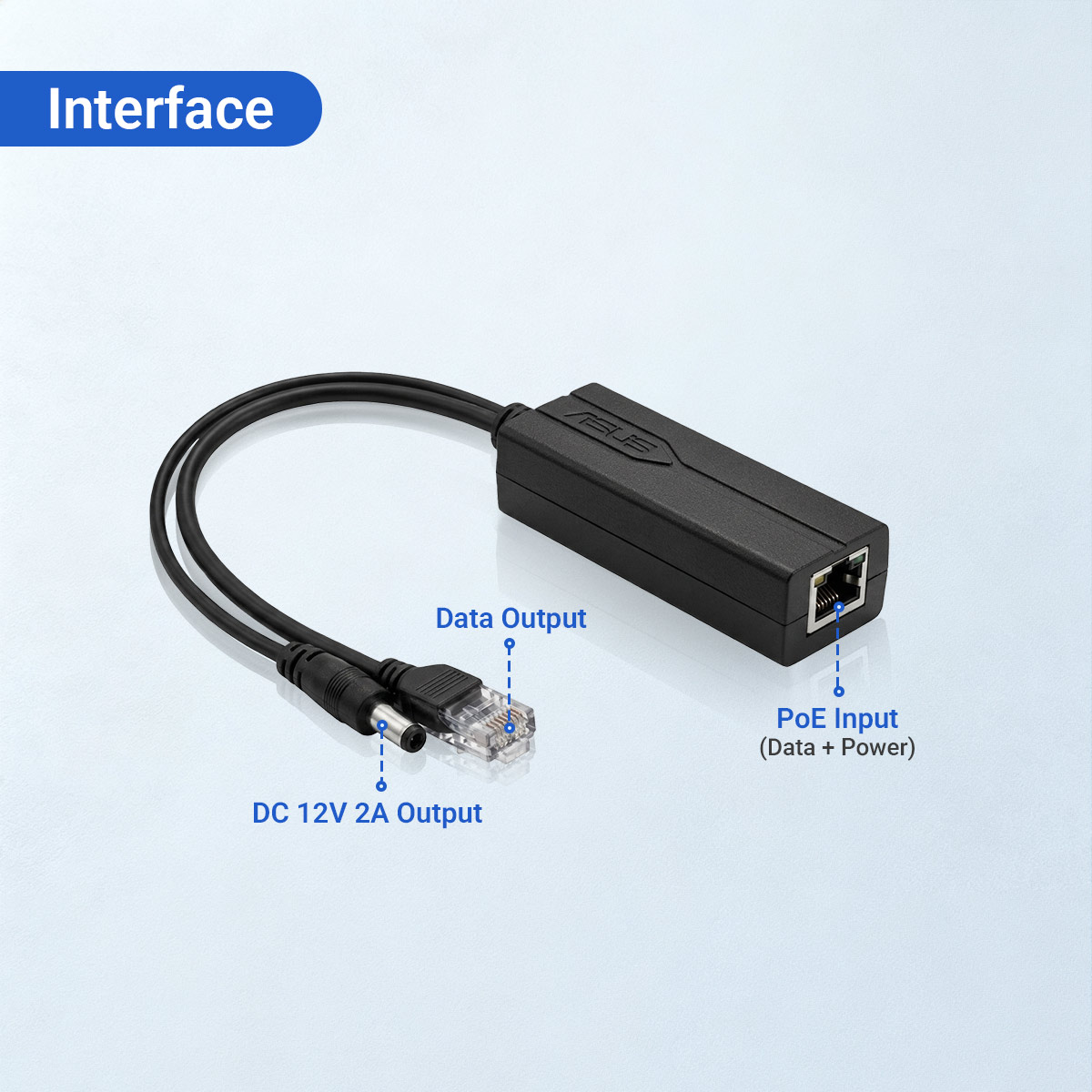

PoE Input Port 1 × 10/100/1000Mbps RJ45, Supports IEEE 802.3af/at PoE Input (44V–57V DC)
DC Power Output 12V DC / 2A Max (24W), Regulated Output via DC Barrel Jack (5.5×2.1mm)
Ethernet Data Output 1 × 10/100/1000Mbps RJ45 Port (Power Removed, Data Only)
Data Rate 10/100/1000Mbps Full Gigabit Passthrough, Zero Bandwidth Loss
PoE Standard Compliance IEEE 802.3af (15.4W) / IEEE 802.3at (30W), Auto-Detection & Classification
Cable Support Cat5e / Cat6 / Cat6a UTP/STP Ethernet Cable, Max Distance 100m (328ft) from PoE Source
Local Power Requirement None — 100% Powered via PoE Input, No External AC Adapter Needed
Protection Features Over-Current Protection, Over-Voltage Protection
Management Type Unmanaged, Plug-and-Play — Zero Configuration, No Software or Drivers Required
Enclosure Material Flame-Retardant ABS Plastic Housing, Compact Desktop/Inline Form Factor
Operating Temperature -20°C to +55°C (-4°F to 131°F); Storage: -30°C to +75°C; Humidity: 10%~90% Non-Condensing
Certifications CE, FCC, RoHS Compliant
Warranty 3 Years Standard Warranty (OEM Terms Negotiable)

.

Frequently Asked Questions (FAQ)



Common Questions About 24W Gigabit PoE Splitters & 12V DC Power Delivery

Q1: Why do I need a PoE splitter if my switch already supports PoE?

Standard PoE switches deliver 48V power integrated into the Ethernet cable. However, many devices — such as legacy IP cameras, wireless bridges, and IoT gateways — only accept 12V DC input and lack built-in PoE circuitry. A 24W Gigabit PoE splitter bridges this gap by separating the PoE signal into 12V DC power and Gigabit Ethernet data, allowing non-PoE devices to operate on existing PoE infrastructure without hardware replacement.

Q2: What devices are compatible with a 12V PoE splitter?

A 24W PoE splitter works with any 12V DC Ethernet device drawing up to 2A, including non-PoE IP cameras, wireless access points, VoIP phones, network video encoders, access control terminals, and IoT gateways. It is compatible with all standard IEEE 802.3af/at PoE switches and injectors as the upstream power source.

Q3: Does a PoE splitter reduce network speed or add latency?

No. A Gigabit PoE splitter provides full 10/100/1000Mbps passthrough with zero bandwidth loss and no added latency. It uses hardware-level signal separation, so data packets pass through at wire speed. This makes it suitable for 4K/8MP IP cameras, Wi-Fi 6 access points, and other high-throughput applications.

Q4: What is the maximum cable distance between the PoE switch and the splitter?

A PoE splitter supports standard Ethernet distances of up to 100 meters (328ft) from the PoE switch or injector using Cat5e or above cabling. The splitter itself requires no local power — it draws all power from the PoE input, eliminating the need for an AC outlet at the device endpoint.

Q5: How do I install a PoE splitter? Is any configuration required?

Installation is fully plug-and-play with zero configuration. Connect an Ethernet cable from your PoE switch to the splitter’s RJ45 input, plug the 12V DC output into your device, and connect the Ethernet data port to the device’s network port. No drivers, software, or settings required. Deployment takes under 30 seconds per unit.

Q6: What is the difference between a PoE splitter and a PoE injector?

A PoE injector adds power to an Ethernet cable (used when the switch has no PoE). A PoE splitter removes and separates power from a PoE cable into DC output + data output (used when the endpoint device cannot accept PoE directly). Choose a splitter when your device needs 12V DC but your network already has PoE switches.

Q7: Do you offer OEM/ODM customization for PoE splitters?

Yes. As a Shenzhen-based PoE device manufacturer, we provide full OEM/ODM services including custom branding, housing color, DC connector type, cable length, packaging design, and output voltage adjustments. MOQ is flexible for qualified projects. All products are CE, FCC, and RoHS certified. Contact us for a free sample and quotation.

Resource Download Center



Download the official datasheet with full electrical specifications, mechanical dimensions, and wiring diagrams for the 24W Gigabit PoE Splitter.


PDF



24W Gigabit PoE Splitter - Technical Datasheet (PDF)

Complete electrical specifications, IEEE 802.3af/at PoE input parameters, 12V DC 2A output characteristics, 10/100/1000Mbps Gigabit passthrough performance, mechanical dimensions, wiring connection diagram, and compliance certifications (CE/FCC/RoHS).
