10Gb PoE injector, IEEE 802.3bt up to 90W, PSE102-10G-90W

10G poe injector

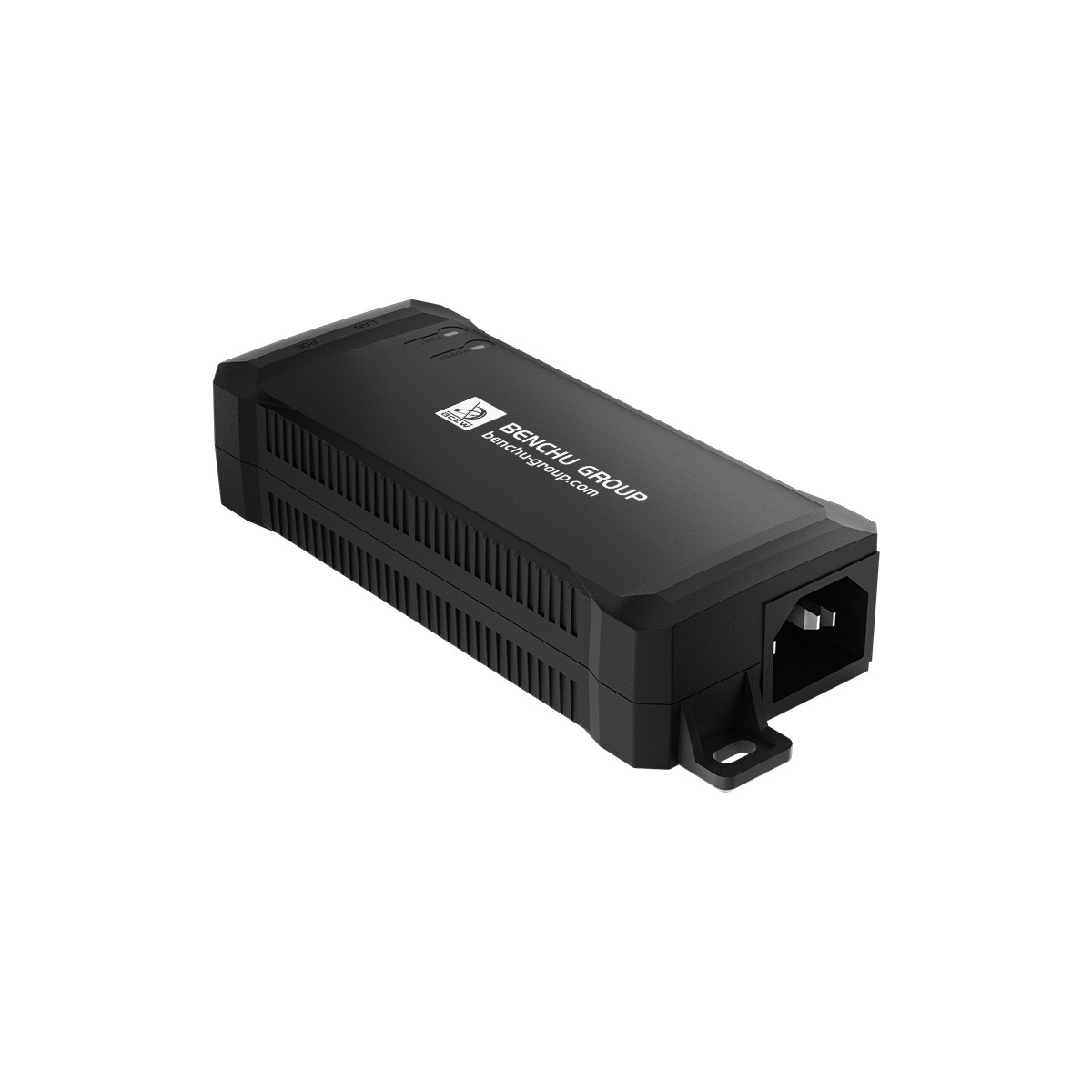

10g poe injector ac power input

10Gb PoE injector, IEEE 802.3bt up to 90W, PSE102-10G-90W

Get Editable Specs & Price List →

Designed for Wi-Fi 7 access points and other high-performance network devices, this 10GbE PoE injector delivers up to 90W of IEEE 802.3bt PoE power while maintaining 10Gbps data connectivity for high-speed network applications.

Product Highlights

    10GbE High-Speed Connectivity: Provides 10Gbps Ethernet connectivity for Wi-Fi 7 access points and other high-performance network devices.

    Up to 90W PoE++ Power: Supports IEEE 802.3bt to deliver up to 90W of PoE power for high-power network terminals.

    Ideal for Wi-Fi 7 APs: Designed for high-bandwidth wireless access points and other devices that require both 10GbE networking and high-power PoE.

    Easy PoE Deployment: Adds PoE power to a 10GbE network connection without requiring a PoE switch, making it suitable for upgrading existing network infrastructure.

    Built for Network Integration: Provides a practical solution for system integrators, network installers, and communication product brands deploying high-speed PoE devices.

    OEM/ODM Ready: Available for private-label projects with customizable product appearance, packaging, labeling, and specifications to support different brand requirements.

ce fcc rosh authentication

10G Multi-Gigabit 90W Ultra PoE++ Injector | IEEE 802.3bt Class 8 | OEM / ODM

Unlocking 10Gbps Ultra-Broadband Wire-Speed Performance and 90W High-Power Delivery for Next-Gen Edge Infrastructure

The PSE102-10G-90W Ultra PoE++ Injector bridges the extreme bandwidth and power gaps between non-PoE 10G network switches and high-demand multi-gigabit terminal devices. Engineered for global system integrators, ISP providers, and telecom brand owners, this single-port midspan injector delivers up to 90W IEEE 802.3bt Class 8 power and 10Gbps (10/100/1000M/2.5G/5G/10G auto-negotiation) Multi-Gigabit passthrough over standard Ethernet cables up to 100 meters. By eliminating bandwidth bottlenecks for high-throughput Wi-Fi 7 enterprise APs, edge AI computing boxes, and heavy-duty 8K PTZ cameras, it avoids expensive 10G PoE core switch replacements. Housed in a precision injection-molded flame-retardant ABS enclosure (IP40 rated) with integrated wall-mounting ears and 6kV surge protection, it guarantees industrial-grade stability. As a direct Shenzhen OEM/ODM manufacturer, we offer complete turnkey customization—including private labeling, custom enclosures, regional AC plugs, and customized packaging—to empower overseas brand partners in expanding their product lines efficiently.

Target Application Scenarios & Flexible Deployment

Engineered to solve ultra-high bandwidth and extreme power-draw challenges for global network contractors and B2B brand owners:

Wi-Fi 7 & Enterprise AP Upgrade

Provides unthrottled 10Gbps data throughput and up to 90W power budget to tri-band Wi-Fi 7 and Wi-Fi 6E enterprise access points, eliminating network bottlenecks without costly switch upgrades.

High-Power 8K PTZ Surveillance

Delivers 802.3bt Class 8 power to outdoor 8K PTZ speed domes featuring long-range IR illuminators, built-in heaters, and wipers, protecting video links via integrated 6kV surge immunity.

Edge AI & 10G NAS Infrastructure

Powers high-load 10G edge computing nodes, 5G Small Cells, PoE digital signage, and multi-gigabit NVMe NAS devices over a single Cat6A cable with low latency and wire-speed line-rate throughput.

Key Product Features & Technical Advantages


10G Multi-Gigabit RJ45 port delivering wire-speed Ethernet passthrough up to 100 meters.

10G Multi-Gig Passthrough

Delivers wire-speed 10Gbps data passthrough (10M/100M/1G/2.5G/5G/10G auto-negotiation) up to 100m over Cat6A, preventing bottlenecks for Wi-Fi 7 APs.

IEEE 802.3bt Class 8 90W Ultra PoE injector active power handshake protocol.

IEEE 802.3bt 90W PoE++

Supplies up to 90W Class 8 power via all 4 Ethernet pairs for high-draw PTZ cameras and edge hardware. Backward compatible with 802.3af/at.

Active PoE auto sensing technology performing hardware handshake before delivering power.

Active Smart Auto-Sensing

Executes an active hardware handshake to detect PD power needs before energizing, protecting non-PoE network equipment from electrical damage.

Flame retardant high impact ABS plastic injection molded enclosure for 10G 90W PoE injector.

Flame-Retardant ABS Casing

Molded from fire-resistant V-0 ABS polymer. Features a fanless passive cooling design for quiet, reliable, maintenance-free indoor operation.

IP40 dust protected enclosure with integrated wall mount ears for flexible installation.

IP40 & Wall-Mountable

IP40 dustproof housing protects internal circuitry. Built-in side mounting ears allow easy wall, cabinet, or under-desk installation.

Integrated 6kV surge lightning protection and TVS ESD immunity circuits.

6kV Surge Immunity

Integrated 6kV surge protection and TVS ESD immunity guard connected switches and IP cameras against power spikes and lightning transients.

Integrated 100-240V AC internal power module with standard AC C14 power socket.

Internal AC Power Supply

Houses an internal 100-240V AC power module with a standard C14 socket, eliminating external power bricks for a clean setup.

Commercial 10G injector designed for reliable 24/7 continuous operation from -20C to +50C.

-20°C to +50°C Wide Temp

Engineered for 24/7 continuous full-load performance across operating temperatures from -20°C freezing cold to +50°C high heat.

10G Multi-Gigabit & 90W High-Power Connectivity Solutions



Upgrade non-PoE network infrastructure seamlessly: Deliver IEEE 802.3bt Class 8 (90W) power and full 10Gbps wire-speed throughput over a single Cat6A cable up to 100 meters.

Network topology diagram showing non-PoE 10G switch connected via RJ45 data input, powered by internal AC PSU, and delivering 90W PoE++ power plus 10G data over 100m Cat6A cable to Wi-Fi 7 AP, 8K IP Camera, and Edge Computing Nodes.

Optimized Deployment Scenarios

  • 1. Next-Gen Wi-Fi 7 APs & 8K Ultra-HD Surveillance Unlocks maximum throughput for enterprise Wi-Fi 7 access points and 8K IP cameras. Injecting 90W Class 8 power with full 10Gbps wire-speed passthrough ensures zero bandwidth throttling over standard Cat6A cabling.
  • 2. High-Power Edge Computing & 5G Small Cells Powers power-hungry edge AI devices, outdoor microwave links, and 5G small cells. Integrated 6kV surge immunity safeguards upstream high-value core switches from outdoor power spikes and ESD transients.
  • 3. Zero-Config Midspan Migration for Non-PoE Switches Eliminates the high cost of replacing non-PoE 10G core switches. Simply connect the Data-In port to your switch, plug into 100-240V AC power, and run PoE-Out to terminal devices with active auto-sensing protection.

Technical Specifications

Hardware Parameter Details / Specification Limits
Product Model PSE102-10G-90W
Equipment Type 10G Multi-Gigabit Single-Port 90W Ultra PoE++ Midspan Injector
Interface Configuration 1 × 100M/1G/2.5G/5G/10Gbps RJ45 Data Input Port
1 × 100M/1G/2.5G/5G/10Gbps RJ45 Data & Power Output Port (PoE Out)
Ethernet Data Rate 10M / 100M / 1G / 2.5G / 5G / 10Gbps Multi-Gigabit Passthrough (Full Duplex wire-speed forwarding)
PoE Standard & Output Power IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt Class 8 (Max 90W); Downward compatible with IEEE 802.3af/at PDs
PoE Power Pin Assignment 4-Pair Power Delivery: 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
Transmission Distance Up to 100 Meters (328 ft) via standard Cat6A / Cat7 / Cat8 Ethernet cables
Input Power Requirement AC 100V–240V, 50/60Hz Universal Internal Power Supply (Built-in Power Module; standard C14 AC Inlet)
Surge & ESD Protection Integrated 6KV Common Mode Surge Protection; Air 8KV / Contact 6KV Electrostatic Discharge (ESD) Immunity
Safety & Circuit Protection Active PD Detection, Over-Current Protection (OCP), Over-Voltage Protection (OVP), Short-Circuit Protection (SCP)
Enclosure & Installation Compact IP40 Flame-Retardant ABS Enclosure; Supports Desktop Placement and Wall-Mounting
LED Indicators PWR (System Power), PoE (Power Output Status)
Operating Environment Operating Temperature: -20°C to +50°C (-4°F to 122°F); Storage Temp: -40°C to +85°C; Humidity: 5% ~ 95% RH non-condensing

Compare Ultra PoE++ 90W Midspan Injector Series



Compare data speeds, enclosure designs, surge protection, and applications across our single-port 90W IEEE 802.3bt Class 8 PoE++ injectors.

Model
& Specifications		 10G 90W PoE++ Injector PSE102-10G-90W
PSE102-10G-90W
10G Multi-Gigabit
 2.5G 90W PoE++ Injector PSE102-2.5G-90W
PSE102-2.5G-90W
2.5G Multi-Gigabit
 Gigabit 90W PoE++ Injector PSE102-GE-90W
PSE102-GE-90W
10/100/1000M Gigabit
Data Rate Passthrough 10 Gbps (10GBASE-T) 2.5 Gbps (2.5GBASE-T) 1 Gbps (1000BASE-T)
Network Cabling Cat6A / Cat7 / Cat8 Cat5e / Cat6 Cat5e / Cat6
PoE Standard & Power IEEE 802.3bt Class 8 (90W) IEEE 802.3bt Class 8 (90W) IEEE 802.3bt Class 8 (90W)
Enclosure Housing ABS Flame-Retardant Plastic
Compact Fanless Design		 ABS Flame-Retardant Plastic
Compact Fanless Design		 ABS Flame-Retardant Plastic
Compact Fanless Design
Surge Protection 6kV Differential / Common Mode 6kV Differential / Common Mode 4kV Differential / Common Mode
Target Applications Wi-Fi 7 Enterprise APs, 8K PTZ Cameras, AI Edge Computing Wi-Fi 6E/6 APs, 4K IP Cameras, High-Speed NAS Standard 802.3bt Ultra PoE Devices, Digital Signage
Action ← Current Model View Detail → View Detail →

Requiring customized power topologies (120W Max), specific housing colors, or private-label branding? As a direct Shenzhen OEM/ODM factory, we support tailored hardware engineering. Request OEM Customization Quote →

Frequently Asked Questions



Technical Considerations, Cabling Guidance, and OEM Services for 10G 90W Injectors

Q1: How does this 10g poe injector prevent power overload when connected to non-PoE or lower-wattage devices?

The device features an active resistive detection protocol that evaluates connected end-points before releasing voltage. Operating strictly within IEEE 802.3bt Type 4 parameters, it automatically negotiates power delivery. Non-PoE switches or legacy 15.4W/30W terminal equipment will receive only their required voltage—or data only—preventing circuit overload.

Q2: What cable category is recommended to maintain full 10Gbps speed without signal attenuation?

To achieve full 10GBASE-T wire-speed performance up to the 100-meter limit, S/FTP Cat6A or Cat7 shielded cabling is recommended. This minimizes alien crosstalk (AXT) and electromagnetic interference (EMI) when transferring ultra-high bandwidth alongside 90W continuous current.

Q3: Can this midspan power high-draw edge devices operating in harsh physical environments?

Yes. Delivering full 90W output across all 4 conductor pairs, it comfortably powers high-capacity hardware such as multi-sensor panoramic cameras, heated outdoor enclosures, and 5G micro-cells. Internal thermal management ensures steady operation even during full-load power draw.

Q4: What protective features shield upstream switches from lightning and power spikes?

Integrated 6kV differential/common mode surge arresters and high-level ESD protection safeguard your network infrastructure. Any voltage transient coming from outdoor ethernet drops is suppressed at the injector level, safeguarding high-value indoor switches.

Q5: Can overseas distributors request customized branding, packaging, or regional plug options?

Yes, as a direct OEM/ODM manufacturer, we offer end-to-end customization services. We support custom housing branding, private label packaging, tailored AC power cords (US/EU/UK/AU/JP), and global safety compliance certifications for brand owners and network distributors.

10G Multi-Gigabit Injector Technical Resources



Download full hardware specifications, 10GBASE-T signal integrity pinouts, and IEEE 802.3bt 90W power budget parameters for enterprise network integration.


PDF



10G 90W Ultra PoE++ Injector Datasheet

Official technical specification manual covering 10GBASE-T full-duplex wire-speed forwarding, IEEE 802.3bt Class 8 (90W) 4-pair power management, Cat6A cabling distance guidelines, 6kV surge isolation circuits, and mechanical dimensions for Model: PSE102-10G-90W.
