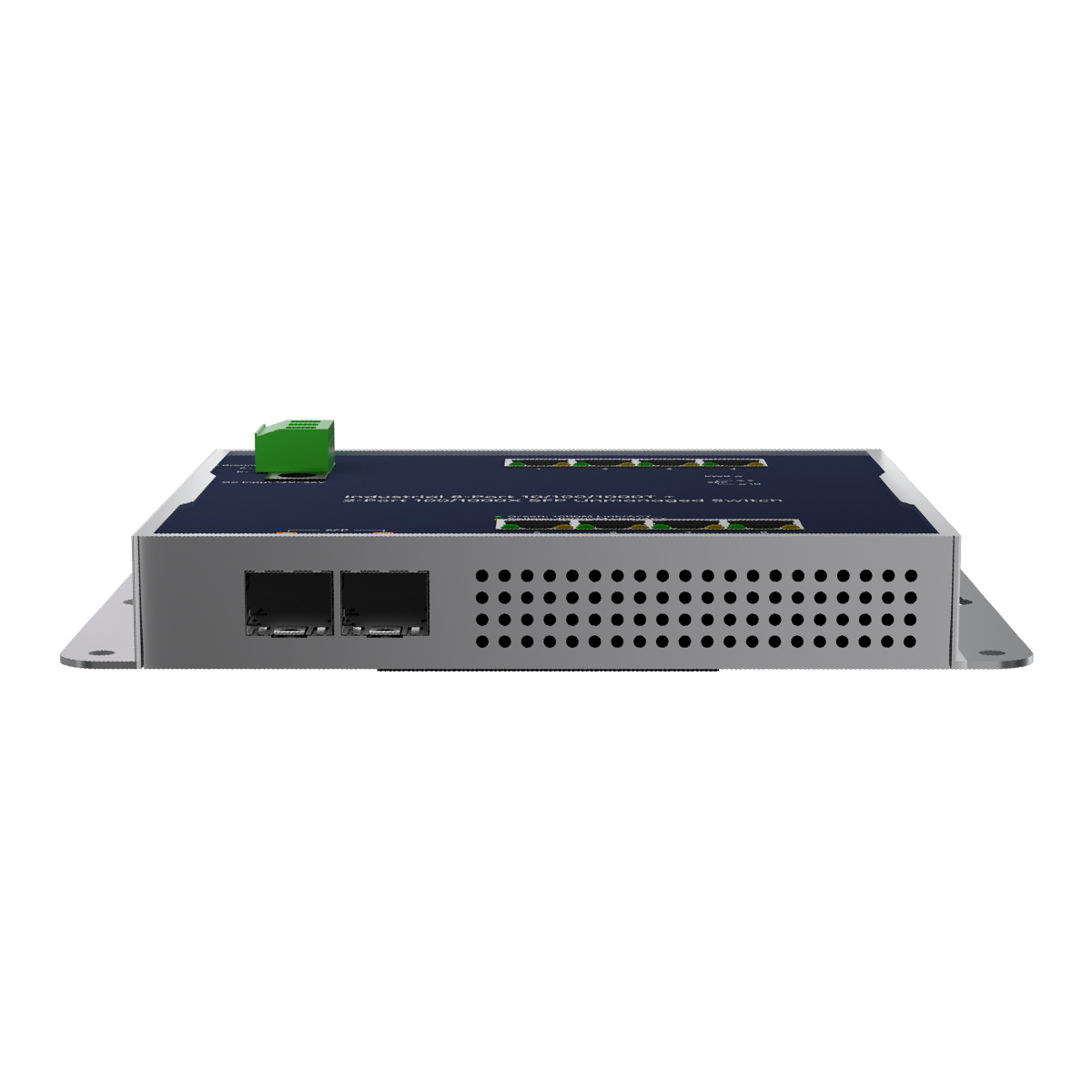

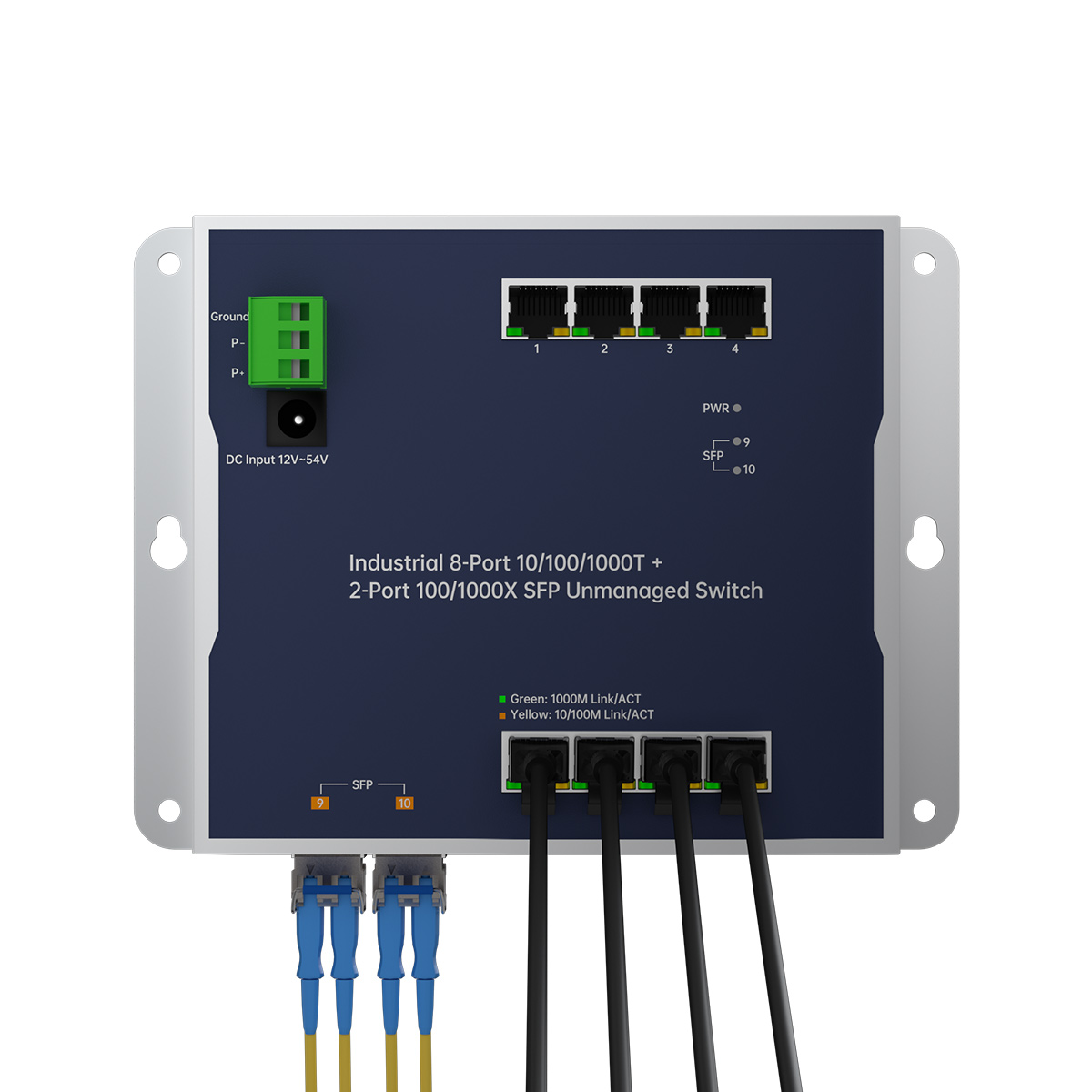

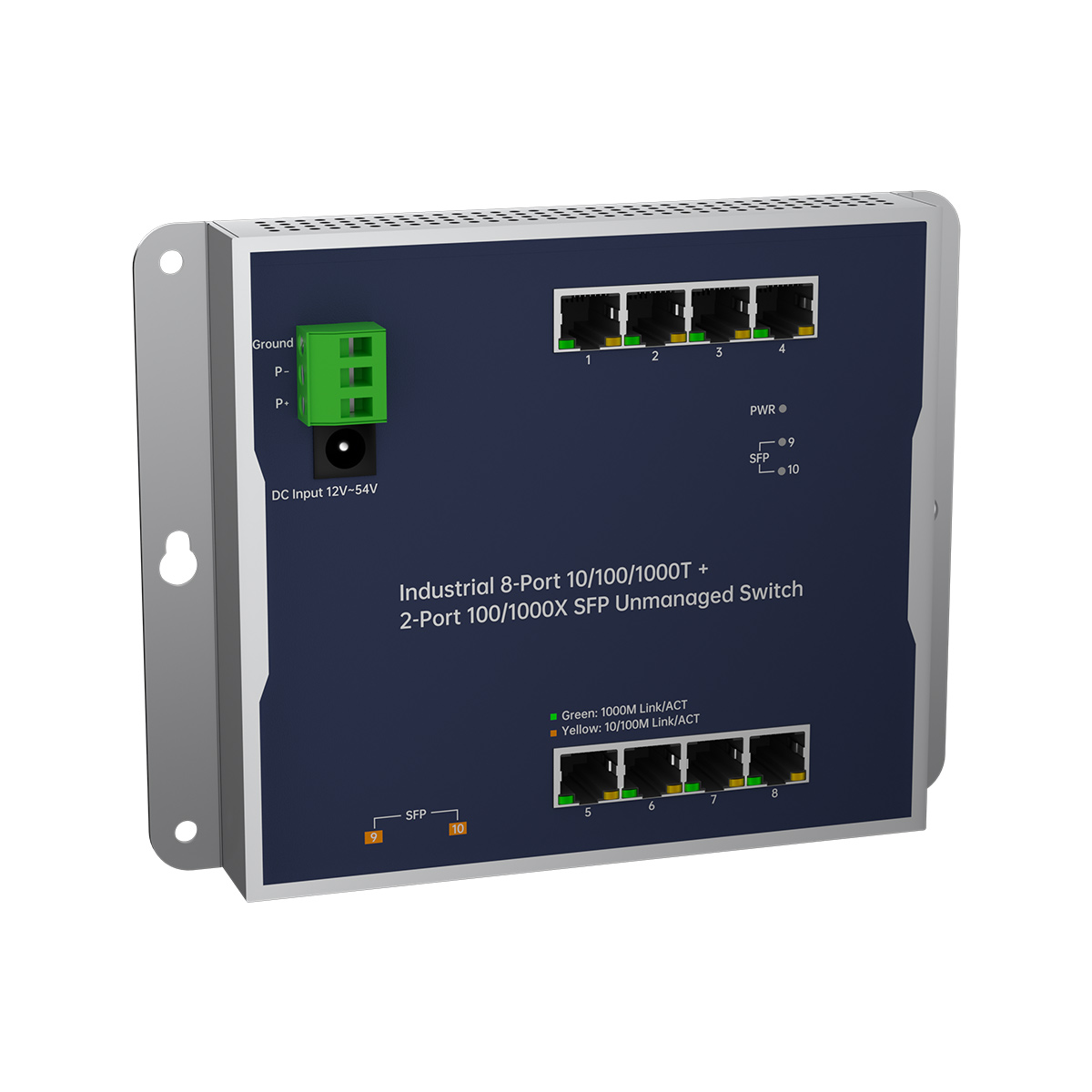

Flat-type Industrial PoE Switch 8 Port with 2 Gigabit SFP Uplink (IES7211W-8PGE2GF-DC)

Flat-type industrial switch
Flat-type poe ethernet switch
Flat-type industrial poe switch with sfp
Flat-type industrial poe switch
Flat-type industrial switch din-rail mount

Flat-type Industrial PoE Switch 8 Port with 2 Gigabit SFP Uplink (IES7211W-8PGE2GF-DC)

Renseignez-vous maintenant

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 8-10/100/1000Mbps RJ45 ports with PoE+
    • 2-100/1000Mbps SFP ports
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Supports PoE power up to 30 watts
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • -40 to 75 degrees operating temperature
    • IP40 Industrial design with redundant power input
    • Din Rail mounting or wall mounting installation
    • Flat-type design, Maximizing space savings
    • Backplane bandwidth 24Gbps，Packet forwarding rate 8.93Mpps，MAC address 4k

8 Port gigabit Industrial PoE Switch

Overview



IES211W-8PGE2GF-DC, Flat-type 8 Port Gigabit Industrial PoE Switch,with 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount

The IES211W-8PGE2GF-DC is a compact, flat-design 8-port Gigabit Industrial PoE switch engineered to maximize space efficiency in confined installations. Its ultra-slim profile supports flexible wall or DIN-rail mounting, making it ideal for space-constrained industrial environments.

Equipped with 8 Gigabit Ethernet ports delivering full Power over Ethernet (PoE+), plus 2 SFP slots for high-speed fiber uplinks, this switch ensures reliable connectivity and seamless integration into extended network topologies. Built for extreme conditions, it operates stably across a wide temperature range of -40°C to +75°C, perfect for demanding applications in transportation, energy, and automation.

With IP40-rated protection, redundant power inputs (12–48V DC), and robust ESD protection—±8KV contact and ±15KV air discharge—the IES211W delivers uninterrupted performance in harsh industrial settings. Its durable design reduces downtime and enhances network resilience.

Ideal for system integrators, this industrial poe switch offers a space-saving, future-proof solution that combines high-density connectivity, carrier-grade reliability, and flexible deployment—all in one sleek, industrial-grade package..







Features



Ultra-Slim Flat Design for Space-Constrained Installations

The PoE switch’s flat, compact form factor minimizes footprint, making it ideal for tight spaces like control cabinets, utility poles, or narrow enclosures. Unlike bulky traditional switches, this design enables wall or DIN-rail mounting without obstructing airflow or adjacent equipment. Perfect for smart city, transportation, and industrial automation applications where space is limited. The sleek profile supports high-density deployment while maintaining serviceability and thermal efficiency—delivering enterprise-grade performance in a minimal footprint.



8-Port Gigabit PoE+ with Full Power Budget Support

Equipped with 8 IEEE 802.3af/at-compliant PoE+ ports, the switch delivers up to 30W per port, supporting high-power devices like PTZ cameras, wireless access points, and VoIP phones. With full gigabit speeds on all ports, it ensures zero latency and maximum throughput for bandwidth-intensive applications. The total power budget is optimized for simultaneous PoE operation, enabling reliable plug-and-play deployment across surveillance, building automation, and edge networks—reducing cabling complexity and power sourcing costs.



Dual Gigabit SFP Uplinks for Fiber Connectivity

Two 1.25G SFP slots support fiber optic uplinks for long-distance, EMI-immune backbone connections up to 80km (depending on fiber module). This enables seamless integration into ring or star topologies, ideal for industrial networks spanning multiple zones. Fiber uplinks enhance network reliability in high-noise environments such as substations, railways, or factories. Auto-negotiation and link-fault pass-through ensure fast failover and stable core connectivity—critical for mission-critical infrastructure requiring low latency and high availability.



Rugged Industrial Design with IP40 Rating & Redundant Power

Built for harsh environments, this flat-type industrial switch features an IP40-rated metal housing that protects against dust and solid contaminants. It supports dual DC power inputs (48–54V), enabling redundant power supply for uninterrupted operation during outages. Wide operating temperature range (-40°C to +75°C) ensures stability in extreme conditions—from freezing outdoor cabinets to overheated industrial sites. Conformal coating options are available for corrosion resistance, making it ideal for oil & gas, traffic systems, and renewable energy applications.



High-Level ESD and Surge Protection

Engineered for electromagnetic resilience, the flat-type industrial poe switch supports ±8kV contact and ±15kV air discharge ESD protection on all ports. This guards against static damage during installation and operation in dry, high-static environments. Integrated surge protection on power and data lines ensures durability in lightning-prone or high-interference areas. These protections extend device lifespan, reduce field failures, and lower maintenance costs—making it a trusted choice for outdoor and industrial deployments where reliability is non-negotiable.

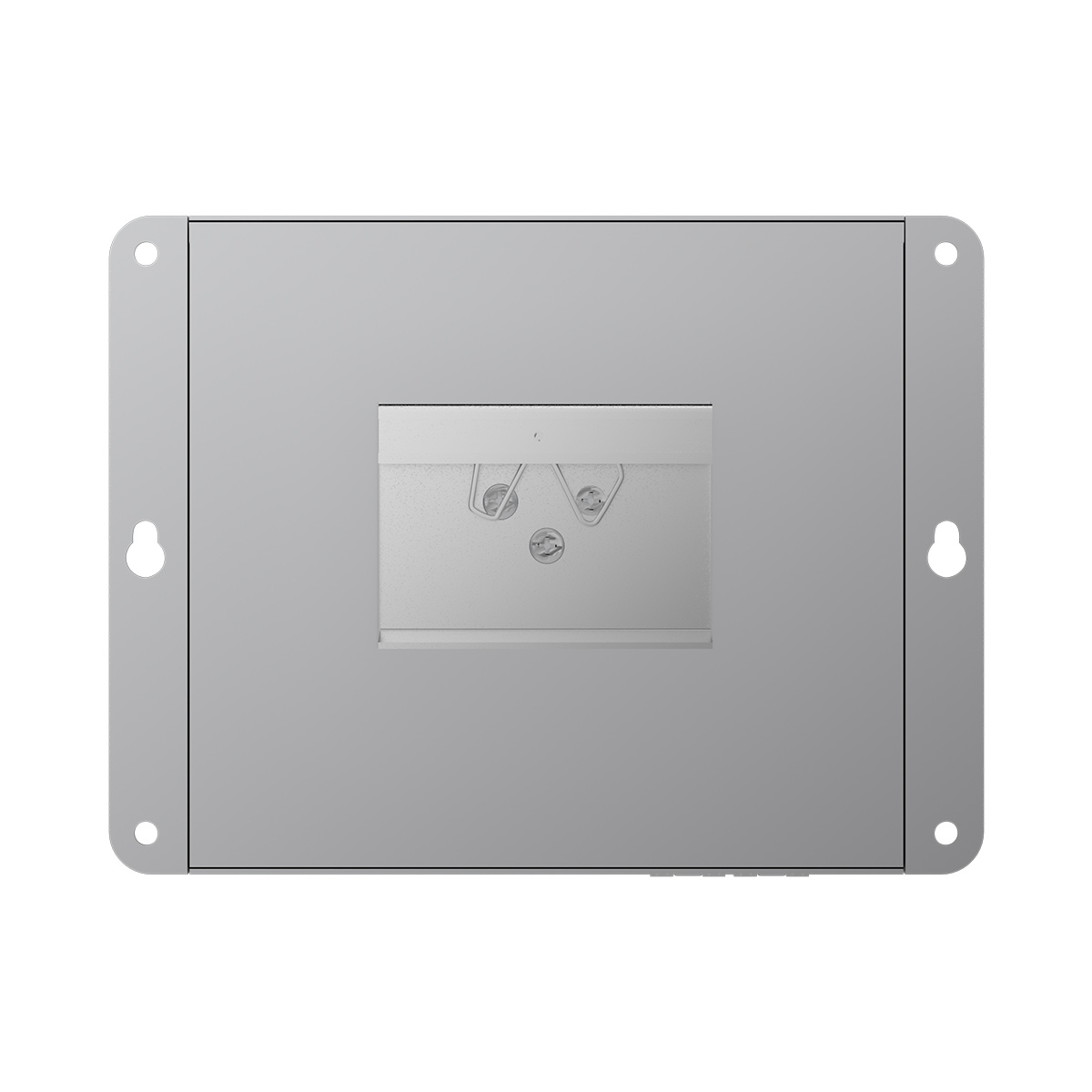

Flexible Mounting: Wall & DIN-Rail Options

Designed for versatile installation, this poe switch supports both wall mounting and standard 35mm DIN-rail attachment—ideal for control panels, junction boxes, or vertical surfaces. Tool-less rail clips enable quick deployment and easy maintenance. The mounting flexibility reduces integration time and supports rapid scalability across distributed networks. Whether deployed in a factory floor cabinet or roadside enclosure, its adaptability streamlines installation and improves service efficiency—perfect for system integrators and OEMs seeking plug-and-play readiness.



Connectivity Solutions



Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution

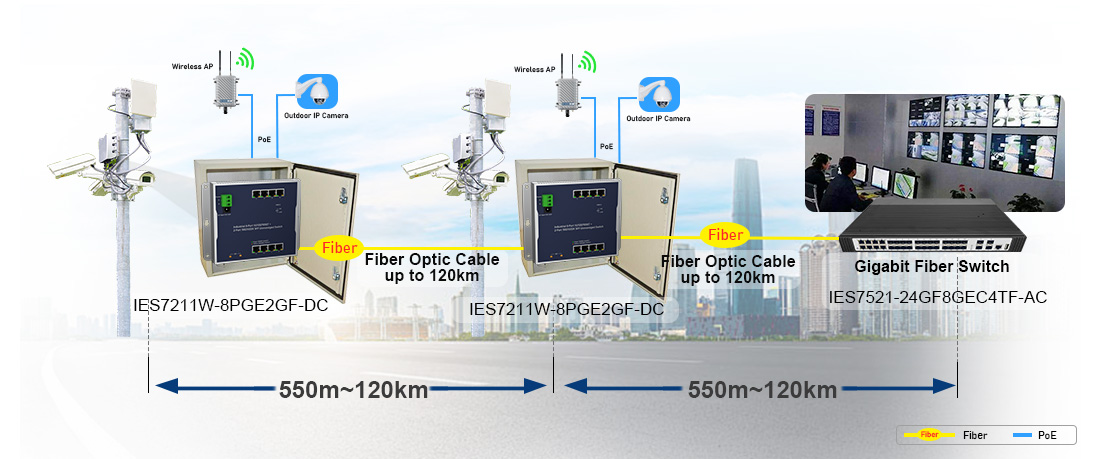

Flat-type 8 port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution









Specification



  • Spécifications techniques :

    IE7211W-8PGE2GF-DC

  • Ports cuivre RJ45 10M/100M/1G :

    8

  • Ports SFP (fibre) 1,25G :

    2

  • Ports PoE/PoE+ :

    8

  • Alimentation via Ethernet :

    *

  • Norme PoE :

    Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Type d'alimentation PoE :

    End-span: 1/2(+), 3/6(-)

  • Puissance de sortie PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Spécification de performance :

    *

  • Mémoire tampon de paquets :

    2.1 Mb

  • Modes de transfert :

    Store-and-forward

  • Bande passante :

    1G

  • Taux de transfert de paquets :

    14.88Mpps (64 byte packet size)

  • Taille de la base de données d'adresses MAC :

    4K (48-bit MAC ad-dresses)

  • Prise en charge des trames géantes :

    9K

  • Temps moyen entre les pannes :

    162,125 hours (MTBF) @ 25°C

  • Latence en cuivre de 100 M :

    8.532µs; 8.613µs; 8.712µs

  • Latence du cuivre 1G :

    3.435µs; 3.541µs; 3.643µs

  • Latence de la fibre 1G :

    2.993µs; 3.112µs; 3.183µs

  • Protocoles réseau IEEE :

    *

  • Protocoles :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)

  • LED :

    Yes

  • Par port :

    Speed, Link, Activity; PoE in different mode

  • Par appareil :

    Power

  • Spécifications physiques :

    *

  • Dimensions (Largeur * Profondeur * Hauteur) :

    178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)

  • Poids :

    0.69 kg (1.52 lb)

  • Protection de coque :

    P40 high-strength case

  • Exigences d'alimentation :

    DC 48~54V, redundant power with reverse polarity protection

  • Ventilateur :

    Fanless

  • Spécifications environnementales :

    *

  • Température de fonctionnement :

    -40° to 75°C (-40° to 176°F)

  • humidité d'exploitation :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de fonctionnement :

    10,000 ft (3,000 m) maximum

  • Température de stockage :

    -40° to 85°C (-40° to 185°F)

  • Humidité de stockage (relative) :

    95% maximum relative humidity, non-condensing

  • Altitude de stockage :

    10,000 ft (3,000 m) maximum

  • Norme exécutive et protection :

    *

  • Protection contre la foudre :

    *

  • CEI61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Partie 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (champ magnétique pulsé) :

    1000A/m

  • IEC61000-4-10 (oscillation amortie) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onde de choc) :

    CM 2.5kV, DM 1kV

  • CEI61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmission en mode commun) :

    30V, 300V, 1s

  • CEI61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmission radiofréquence) :

    10V(150kHz~80MHz)

  • CEI61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (surtension) : câble d'alimentation :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriétés mécaniques :

    *

  • CEI60068-2-6 :

    Anti Vibration

  • CEI60068-2-32 :

    Free Fall

  • CEI60068-2-27 :

    Anti Shock

  • Émissions électromagnétiques et immunité :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Sécurité :

    *

  • Certifications de sécurité :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantie et assistance :

    *

  • Garantie limitée sur le matériel :

    Limited Lifetime*

  • Assistance technique par téléphone et e-mail* :

    Limited Lifetime*

  • Assistance technique par chat en ligne 24h/24 et 7j/7 :

    Limited Lifetime*

  • Contenu du colis :

    *

  • Tous les modèles :

    Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guide

  • Type d'entreprise :

    Industrial

  • Plus de filtres :

    Unmanaged
Questions & Answers
Q: What is a flat-type industrial PoE switch, and why is it beneficial?
A: The flat-type industrial PoE switch has an ultra-slim design that saves space in tight installations like control cabinets or wall boxes. It supports both wall and DIN-rail mounting, making it ideal for smart city, surveillance, and automation projects where space is limited. Its compact size enables high-density deployment without sacrificing performance or cooling.

Q: Can it power high-power devices like PTZ cameras or wireless APs?
A: Yes. It features 8 PoE+ ports (IEEE 802.3af/at) delivering up to 30W per port—enough for PTZ cameras, outdoor Wi-Fi APs, and VoIP phones. Full Gigabit speeds ensure smooth video transmission with no lag. The total power budget supports all ports running PoE simultaneously, reducing cabling complexity.

Q: Does it support fiber uplinks for long-distance or EMI-heavy environments?
A: Yes. It includes 2 Gigabit SFP slots for fiber uplinks, enabling connections up to 80km and immunity to electromagnetic interference (EMI). Ideal for factories, railways, and substations.

Q: Is it suitable for extreme temperatures and harsh conditions?
A: Yes. It operates in -40°C to +75°C and features IP40-rated metal housing for dust protection. Dual DC power inputs (48–54V) provide redundancy. Built-in ESD (±15kV air, ±8kV contact) and surge protection ensure reliability in outdoor or industrial environments.

Q: Can it be used for OEM/ODM integration?
A: Yes. Its compact design and reliable performance make it ideal for OEM/ODM projects. Supports custom labeling, firmware branding, and conformal coating. Widely used in ITS, industrial equipment, and smart infrastructure as a white-label PoE solution.
