Flat-type 8-Port Gigabit Industrial Fiber Switch with 4 PoE++ | Up to 90W Per Port

Ultra-Slim 4 port poe switch
Ultra-Slim industrial switch 4 port poe
Ultra-Slim industrial fiber switch 4 port poe
DIN-Rail 4 port poe switch
Flat-type 8 port switch with 4 poe

Flat-type 8-Port Gigabit Industrial Fiber Switch with 4 PoE++ | Up to 90W Per Port

Renseignez-vous maintenant

Ultra-Slim 8-Port Gigabit Industrial PoE+ Switch with Dual SFP Uplinks | -40°C to +75°C | Din Rail mounting or wall mounting installation | OEM/ODM Ready

Product Highlights
    • Ultra-flat 25mm depth for space-constrained cabinets
    •
    • 4× 802.3bt PoE++ ports (90W max per port, 240W total budget)
    •
    • 4× Gigabit RJ45 non-PoE ports + 2× 1.25G SFP uplinks
    •
    • -40°C to +75°C operation with IP40 metal housing
    •
    • Dual 48–56V DC inputs, tool-less DIN-rail or wall mount

Certifications: CE, FCC, RoHS

Overview

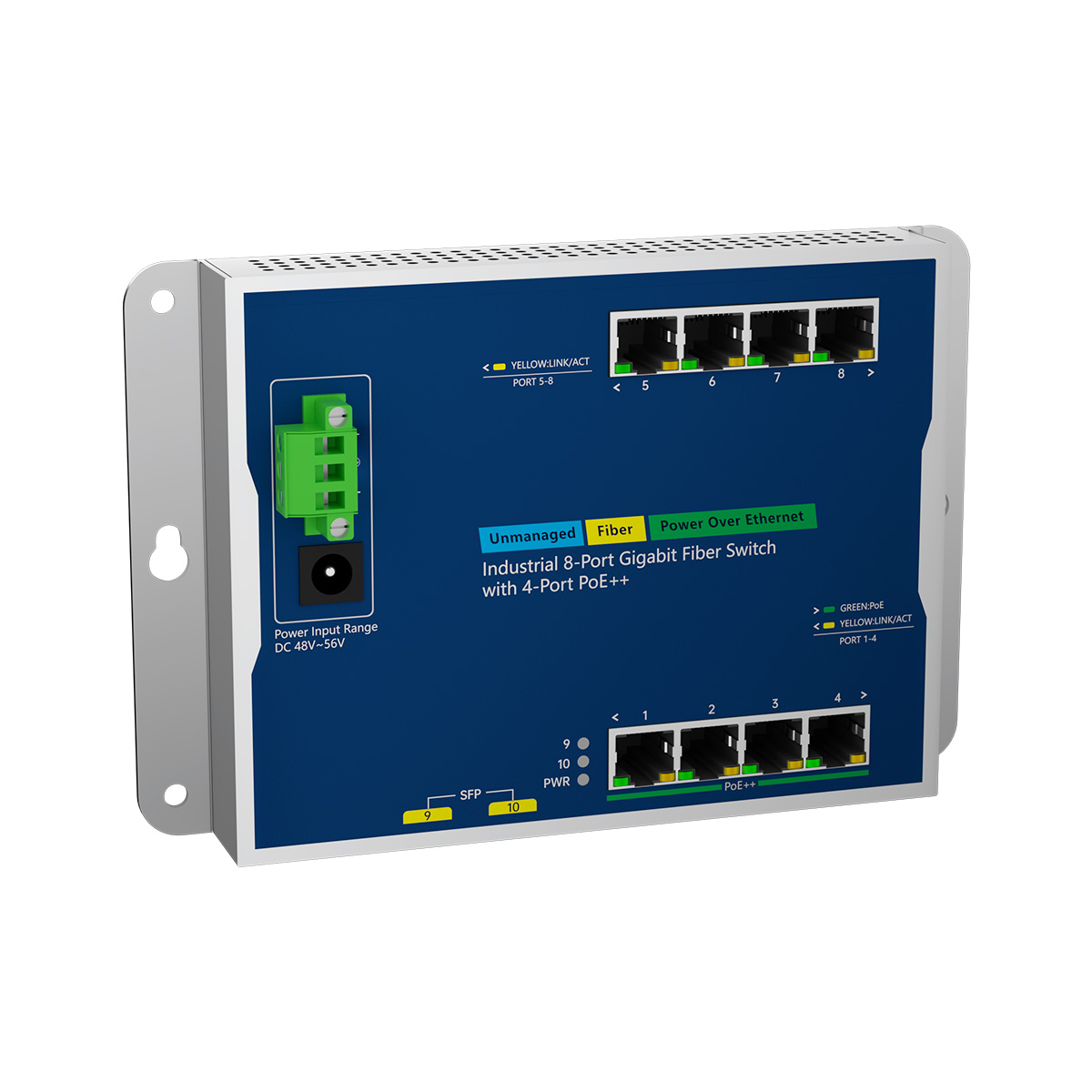

IES7211W-4P4GE2GF-DC, Flat-type 8 Port Gigabit Industrial Fiber Switch with 4 PoE++, 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount

The IES7211W-8GE2GF-4BT is a next-generation industrial Ethernet switch engineered for high-power PoE deployments in space-sensitive and environmentally demanding settings. Its hybrid 8-port layout includes four IEEE 802.3bt PoE++ ports, each capable of delivering up to 90W—ideal for powering advanced PTZ cameras, Wi-Fi 6/6E access points, heated outdoor cameras, and other high-consumption devices over a single cable. The remaining four Gigabit RJ45 ports provide dedicated high-speed connectivity for NVRs, servers, and control systems, while dual 1.25G SFP fiber uplinks enable long-distance, noise-immune backbone links up to 80km.

Built with an ultra-slim 25mm depth, the switch saves crucial space in electrical cabinets, traffic control enclosures, and DIN-rail panels. It operates reliably across an extreme temperature range of -40°C to +75°C and is housed in a robust IP40 metal casing with ±15kV ESD protection. Dual 48–56V DC inputs ensure power redundancy, and tool-less wall or DIN-rail mounting options streamline installation. Whether deployed in smart city networks, industrial automation, or remote surveillance systems, this switch combines high-power PoE, compact design, and industrial durability to simplify infrastructure and reduce total cost of ownership.

Features

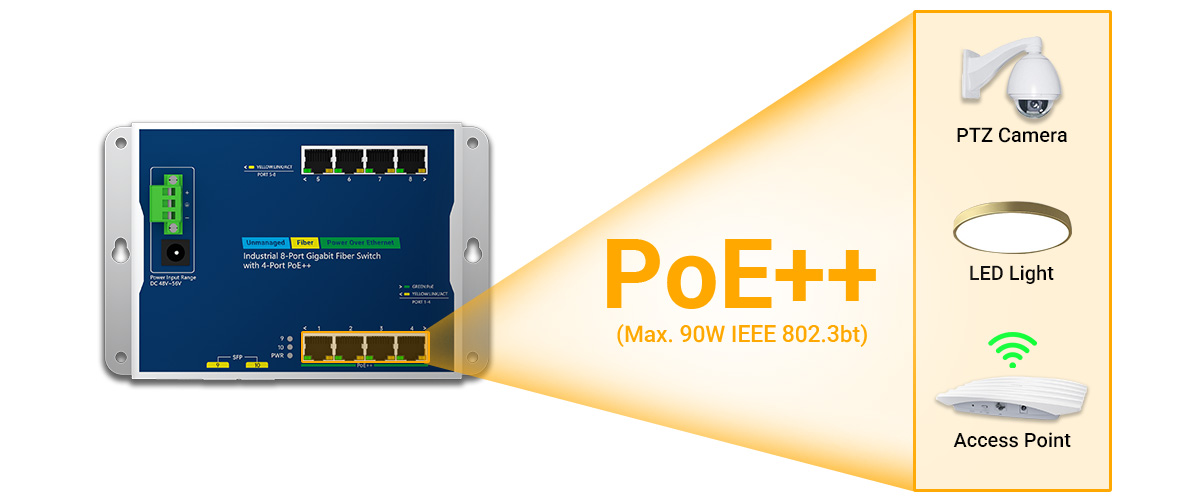

High-Power PoE++ for Demanding Devices

Deliver up to 90W per port with IEEE 802.3bt PoE++ support, perfect for high-consumption equipment such as PTZ cameras, Wi-Fi 6/6E access points, digital signage, and industrial sensors. Eliminate the need for extra power injectors and simplify cabling in surveillance and smart building projects.

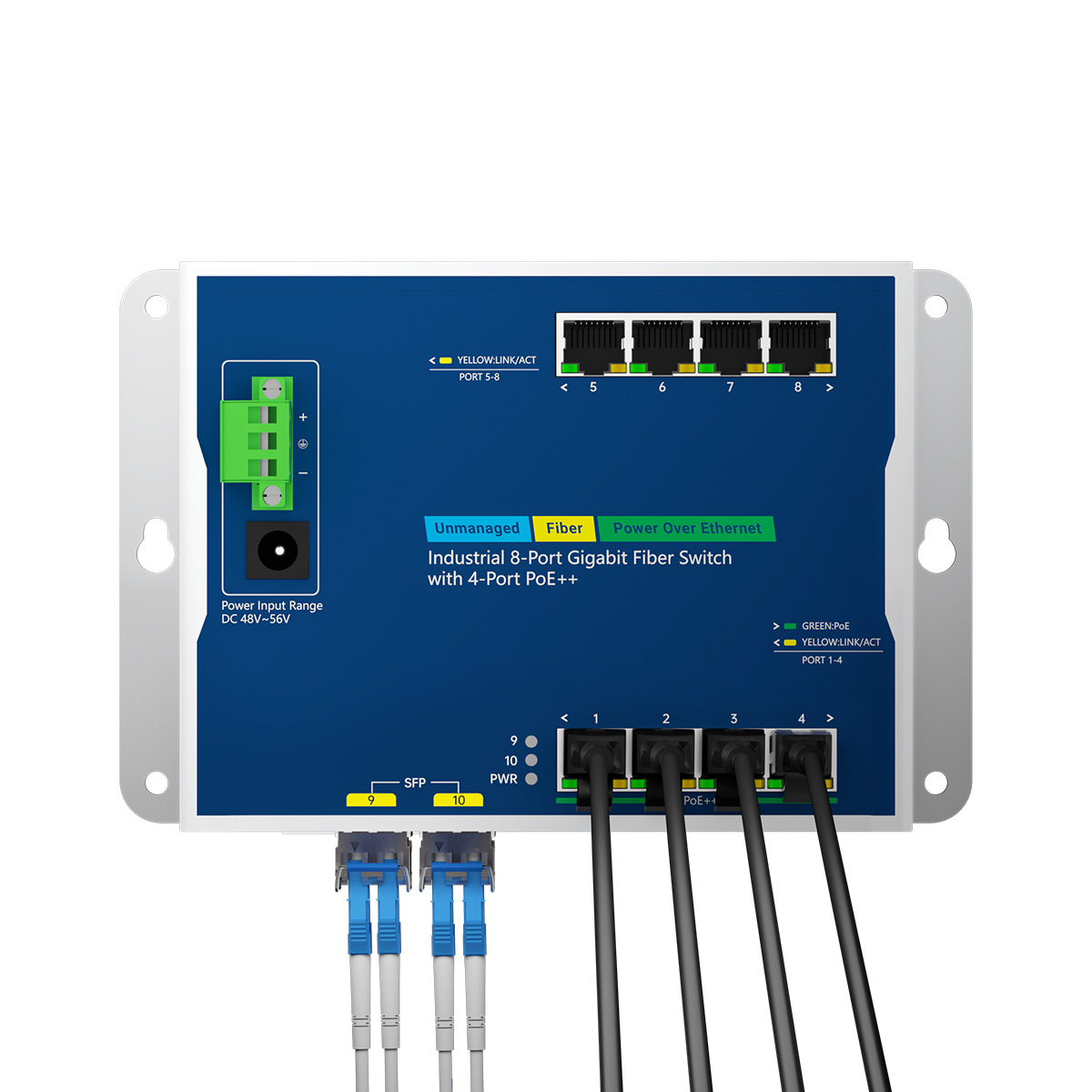

Hybrid 4+4 Port Layout for Smart Power Management

Allocate 4 high-power PoE++ ports exclusively to energy-intensive devices while using the 4 non-PoE Gigabit ports for data-heavy connections like NVRs or controllers. This design prevents power contention and ensures both high bandwidth and stable power delivery.

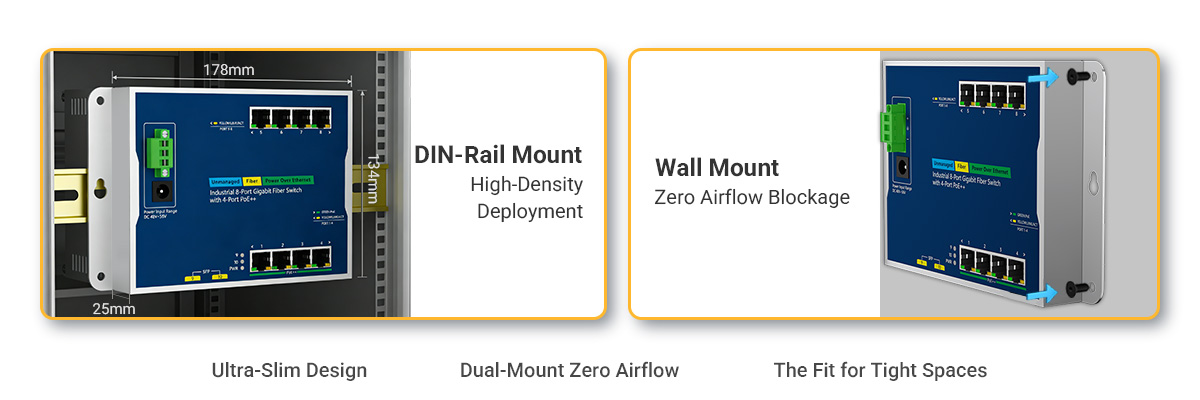

Ultra-Slim Design for High-Density Installations

At just 25mm deep, this flat switch fits into narrow enclosures, traffic cabinets, and DIN-rail panels where space is limited. Its low-profile build avoids airflow obstruction and supports dense deployments without cabinet modifications.

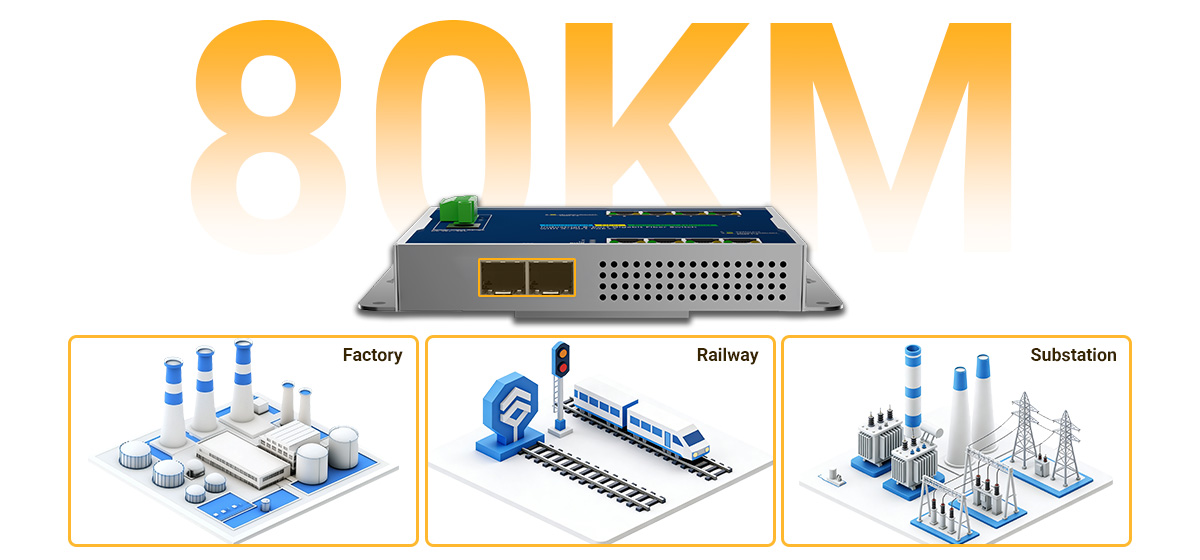

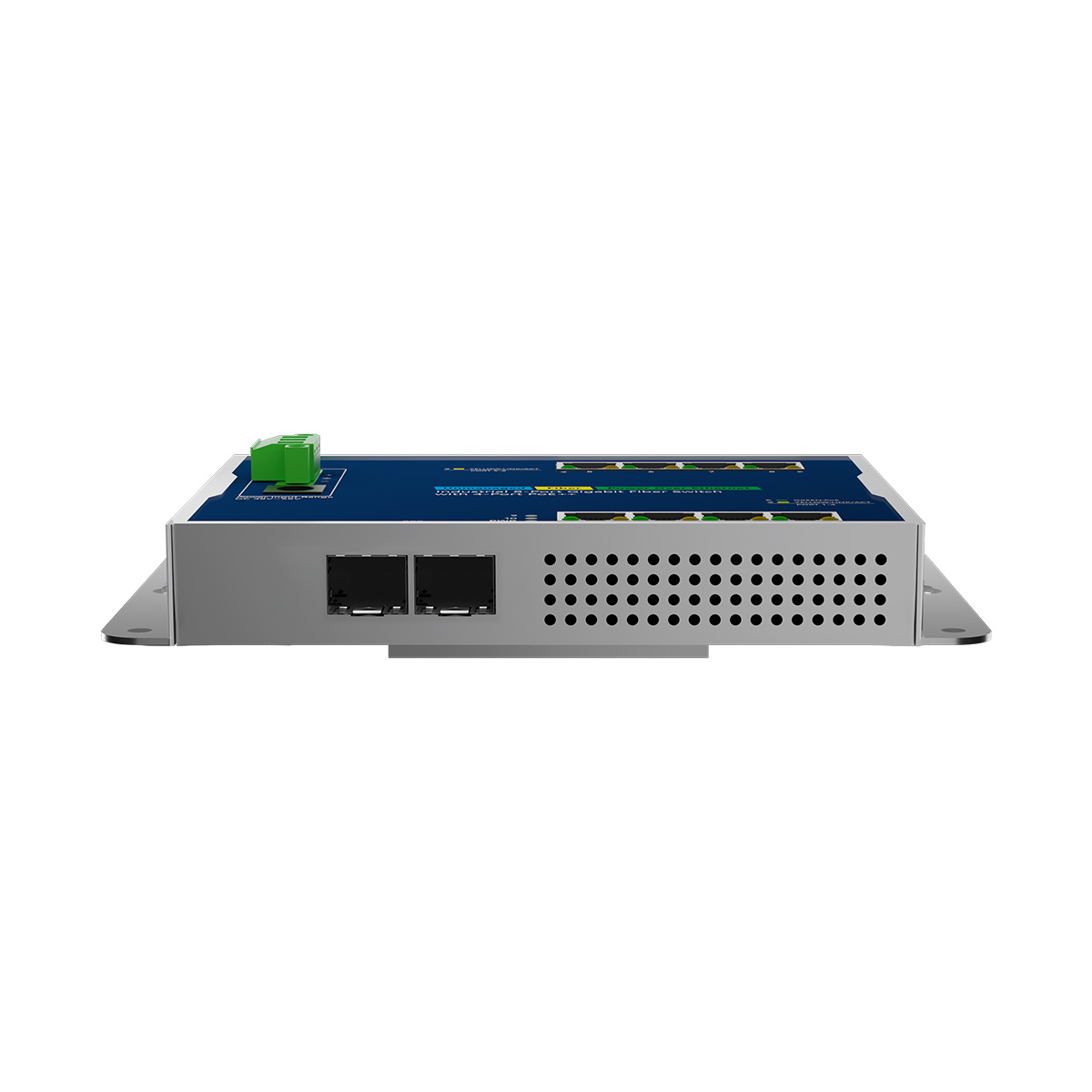

Reliable Fiber Uplinks for Noise-Immune Connectivity

Two 1.25G SFP slots support fiber modules for distances up to 80km, providing EMI-free links in electrically noisy environments like substations, railways, and factories. Fiber uplinks ensure stable data transmission where copper cables fail.



Built for Extreme Industrial Environments

Rated for -40°C to +75°C operation with IP40 metal housing, ±15kV ESD protection, and optional conformal coating. Deploy confidently in harsh settings such as Arctic sites, desert solar plants, or coastal installations with enhanced durability and reduced maintenance.



Connectivity Solutions



Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution

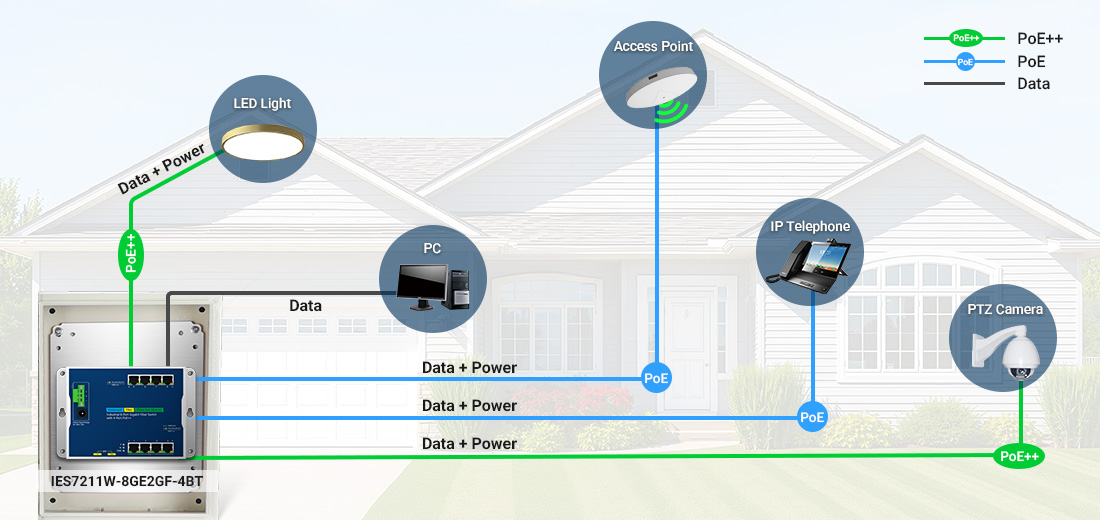

Flat-type 8 port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution









Specification



  • Spécifications techniques :

    IE7211W-8PGE2GF-DC

  • Ports cuivre RJ45 10M/100M/1G :

    8

  • Ports SFP (fibre) 1,25G :

    2

  • Ports PoE/PoE+ :

    4

  • Alimentation via Ethernet :

    *

  • Norme PoE :

    Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Type d'alimentation PoE :

    End-span: 1/2(+), 3/6(-)

  • Puissance de sortie PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Spécification de performance :

    *

  • Mémoire tampon de paquets :

    2.1 Mb

  • Modes de transfert :

    Store-and-forward

  • Bande passante :

    1G

  • Taux de transfert de paquets :

    14.88Mpps (64 byte packet size)

  • Taille de la base de données d'adresses MAC :

    4K (48-bit MAC ad-dresses)

  • Prise en charge des trames géantes :

    9K

  • Temps moyen entre les pannes :

    165,252 hours (MTBF) @ 25°C

  • Latence en cuivre de 100 M :

    8.532µs; 8.613µs; 8.712µs

  • Latence du cuivre 1G :

    3.435µs; 3.541µs; 3.643µs

  • Latence de la fibre 1G :

    2.993µs; 3.112µs; 3.183µs

  • Protocoles réseau IEEE :

    *

  • Protocoles :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)

  • LED :

    Yes

  • Par port :

    Speed, Link, Activity; PoE in different mode

  • Par appareil :

    Power

  • Spécifications physiques :

    *

  • Dimensions (Largeur * Profondeur * Hauteur) :

    178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)

  • Poids :

    0.69 kg (1.52 lb)

  • Protection de coque :

    IP30 high-strength case

  • Exigences d'alimentation :

    DC 48~56V, redundant power with reverse polarity protection

  • Ventilateur :

    Fanless

  • Spécifications environnementales :

    *

  • Température de fonctionnement :

    -40° to 75°C (-40° to 176°F)

  • humidité d'exploitation :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de fonctionnement :

    10,000 ft (3,000 m) maximum

  • Température de stockage :

    -40° to 85°C (-40° to 185°F)

  • Humidité de stockage (relative) :

    95% maximum relative humidity, non-condensing

  • Altitude de stockage :

    10,000 ft (3,000 m) maximum

  • Norme exécutive et protection :

    *

  • Protection contre la foudre :

    *

  • CEI61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Partie 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (champ magnétique pulsé) :

    1000A/m

  • IEC61000-4-10 (oscillation amortie) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onde de choc) :

    CM 2.5kV, DM 1kV

  • CEI61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmission en mode commun) :

    30V, 300V, 1s

  • CEI61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmission radiofréquence) :

    10V(150kHz~80MHz)

  • CEI61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (surtension) : câble d'alimentation :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriétés mécaniques :

    *

  • CEI60068-2-6 :

    Anti Vibration

  • CEI60068-2-32 :

    Free Fall

  • CEI60068-2-27 :

    Anti Shock

  • Émissions électromagnétiques et immunité :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Sécurité :

    *

  • Certifications de sécurité :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantie et assistance :

    *

  • Garantie limitée sur le matériel :

    Limited Lifetime*

  • Assistance technique par téléphone et e-mail* :

    Limited Lifetime*

  • Assistance technique par chat en ligne 24h/24 et 7j/7 :

    Limited Lifetime*

  • Contenu du colis :

    *

  • Tous les modèles :

    Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guide

  • Type d'entreprise :

    Industrial

  • Plus de filtres :

    Unmanaged
Questions & Answers
Q1: What is the advantage of 802.3bt PoE++ in this switch?
A1: 802.3bt PoE++ delivers up to 90W per port, enabling you to power high-demand devices like advanced PTZ cameras, Wi-Fi 6E APs, and industrial equipment over a single Ethernet cable, reducing cabling and installation costs.

Q2: Can this switch be used in outdoor or harsh environments?
A2: Yes. With an operating temperature range of -40°C to +75°C, IP40 rating, and optional conformal coating, it is designed for demanding industrial, transportation, and outdoor applications.

Q3: How is the port layout configured?
A3: The switch offers 4 PoE++ ports (90W each) and 4 standard Gigabit Ethernet ports, plus 2 SFP fiber uplinks. This hybrid design allows flexible power and data segmentation for optimized network performance.

Q4: What mounting options are available?
A4: It supports both wall mounting and 35mm DIN-rail installation with tool-less clips, making it easy to deploy in control cabinets, junction boxes, or on vertical surfaces.

Q5: Does it support power redundancy?
A5: Yes, the switch features dual 48–56V DC inputs for redundant power supply, ensuring continuous operation in critical industrial networks.


Downloads



  • Flat-type 8 Port Industrial Fiber Swtich with 4 PoE++ Datasheet (IES7211W-8GE2GF-4BT)
