Flat-type Industrial PoE Switch

Flat-type 8-Port Gigabit Industrial Fiber Switch with 4 PoE+ | Din Rail or Wall Mounting Installation

Ultra-Slim 4 port poe switch
Flat-type 8 port switch with 4 poe
Ultra-Slim industrial fiber switch 4 port poe
Ultra-Slim industrial switch 4 port poe
DIN-Rail 4 port poe switch

Flat-type 8-Port Gigabit Industrial Fiber Switch with 4 PoE+ | Din Rail or Wall Mounting Installation

Renseignez-vous maintenant

Ultra-Slim 8-Port Gigabit Industrial PoE+ Switch with Dual SFP Uplinks | -40°C to +75°C | Din Rail mounting or wall mounting installation | OEM/ODM Ready

Product Highlights
    • Form Factor: Ultra-flat design (25mm depth) for space-constrained installations
    • PoE Ports: 8x Gigabit RJ45 (Port 1-4 with PoE+, IEEE 802.3at, 30W per port, 120W total budget)
    • Uplinks: 2x 1.25G SFP slots (80km fiber support via optional modules)
    • Temp Range: -40°C to +75°C (industrial-grade operation)
    • Mounting: Wall or 35mm DIN-rail (tool-less installation)
    • Power: Dual DC inputs (48–56V), redundant power supply
    • Protection: IP40 metal housing, ±15kV air/±8kV contact ESD
    • Certifications: CE, FCC, RoHS
    • OEM/ODM: Custom branding, firmware, conformal coating
    • MTBF: >200,000 hours
    • Warranty: 5-year

Certifications: CE, FCC, RoHS

Overview

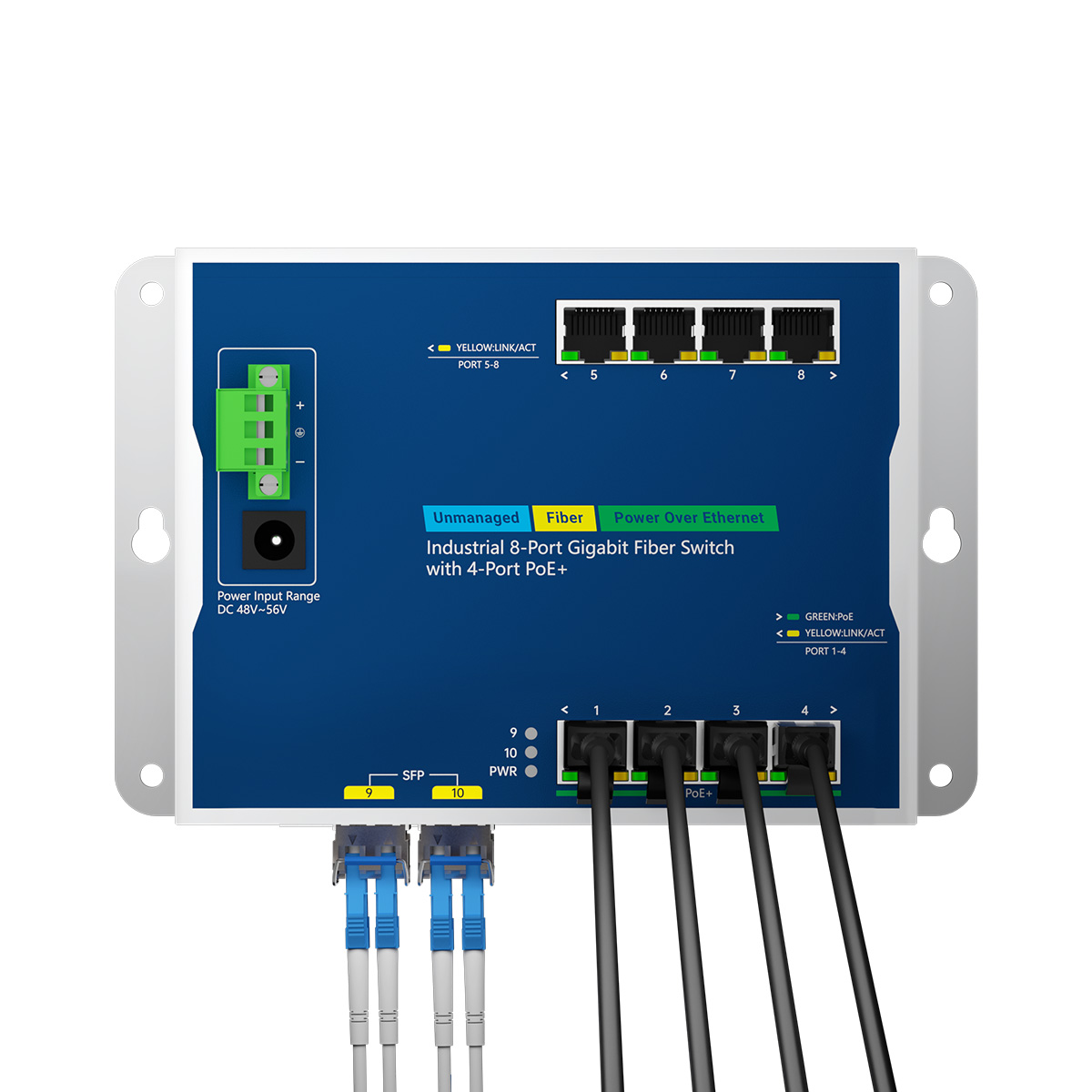

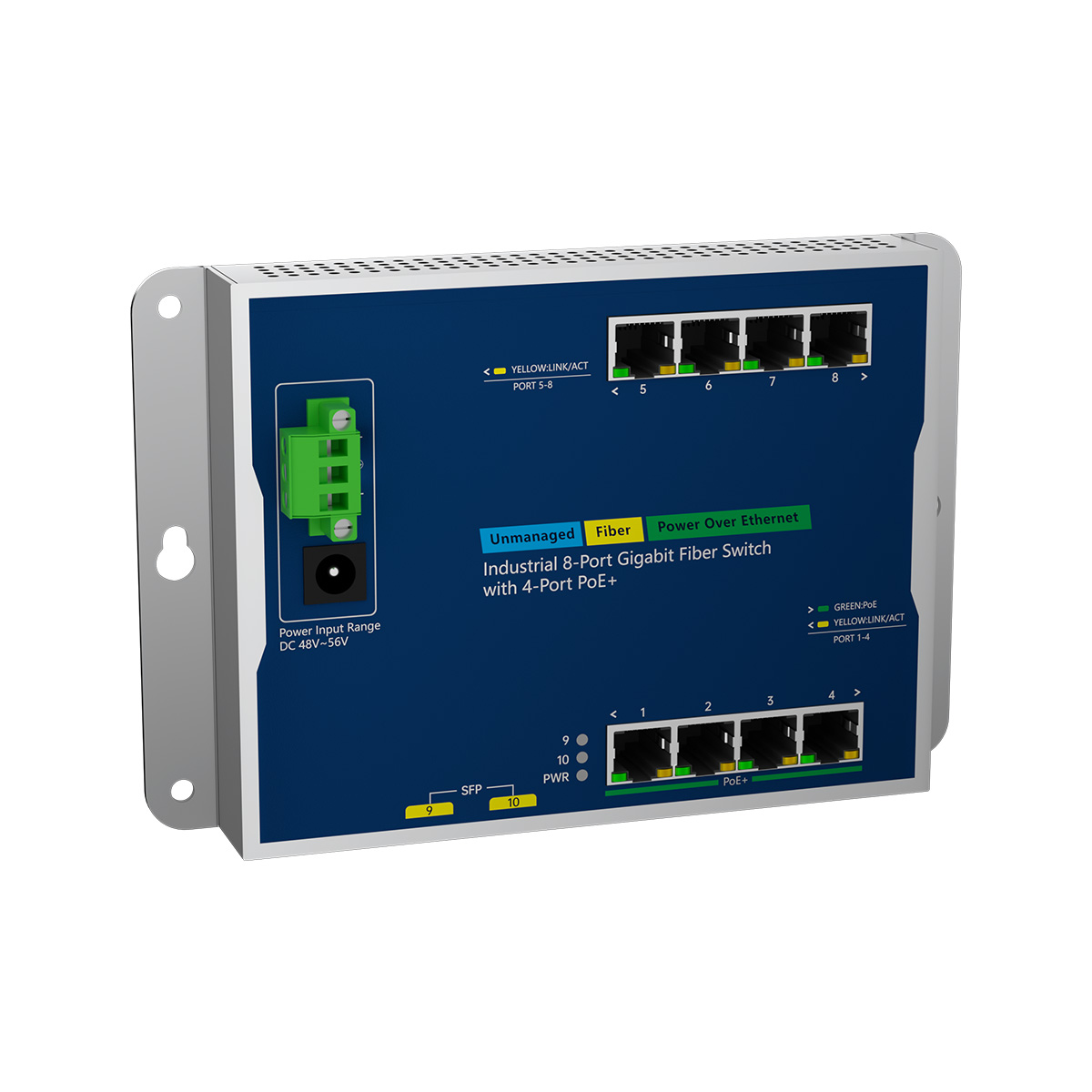

IES7211W-4P4GE2GF-DC, Flat-type 8 Port Gigabit Industrial Fiber Switch with 4 PoE+, 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount

Optimize mixed-device deployments with BENCHU’s flat-type 4+4 hybrid industrial switch. This ultra-slim (24mm) unmanaged switch delivers 4x IEEE 802.3at PoE+ ports (30W each) for cameras/Wi-Fi APs plus 4 dedicated Gigabit ports for NVRs, servers, or non-PoE devices – all in one compact unit. With dual 1.25G SFP fiber uplinks supporting 80km links, it eliminates EMI in substations/railways while operating at -40°C to +75°C. Features IP30 housing, dual 48–56V DC inputs, and ±15kV ESD protection for zero-downtime reliability. Ideal for surveillance hubs, factory control panels, and ITS where power + data segregation simplifies cabling. OEM/ODM-ready with 4-week customization.

Features



Space-Saving Flat Design: Maximize Cabinet Real Estate

At just 25mm deep—60% slimmer than standard industrial switches—this flat-type PoE switch fits into narrow control cabinets, traffic signal housings, or pole-mounted enclosures where space is critical. Its wall/DIN-rail mountability eliminates airflow blockage, enabling high-density deployments in smart city infrastructure without costly cabinet upgrades. Benefit: Reduce installation costs by 30% and accelerate project timelines for municipal or transportation networks.





Hybrid 4+4 Port Design: Strategic Power Allocation

Dedicate 4 PoE+ ports (30W each) exclusively to cameras/sensors while reserving 4 non-PoE Gigabit ports for bandwidth-critical devices like NVRs or industrial controllers. Benefit: Prevents PoE power contention in surveillance hubs – ensures full 30W to PTZ cameras while non-PoE ports deliver uninterrupted 1000Mbps to recording servers. Ideal for traffic control cabinets where 50% of devices require power.





Full PoE+ Power Budget: Power High-Consumption Devices

Delivers 120W total PoE budget with 30W per port (802.3at), supporting power-hungry devices like PTZ cameras, Wi-Fi 6/6E APs, and outdoor sensors on a single cable. No external injectors needed. Benefit: Slash cabling complexity by 50% in surveillance or building automation projects while ensuring uninterrupted operation during peak loads.



Dual Gigabit SFP Uplinks: Future-Proof Fiber Connectivity

Equipped with two 1.25Gbps SFP slots, this unmanaged industrial switch delivers EMI-resistant fiber connections supporting distances up to 80km (with single-mode modules). Enables simple star-topology deployments across distributed sites like factories, railways, and substations—where copper cabling suffers from interference.  Eliminate signal degradation in high-noise environments with plug-and-play fiber reliability—no configuration needed.



Extreme Environment Resilience: Operate Anywhere

Rated for -40°C to +75°C operation with IP40 metal housing and ±15kV ESD protection. Conformal coating option available for corrosive environments (e.g., oil rigs, coastal sites). Benefit: Deploy confidently in Arctic wind farms or desert solar plants where standard switches fail—cutting maintenance costs by 40%.



Redundant Power & Industrial Security

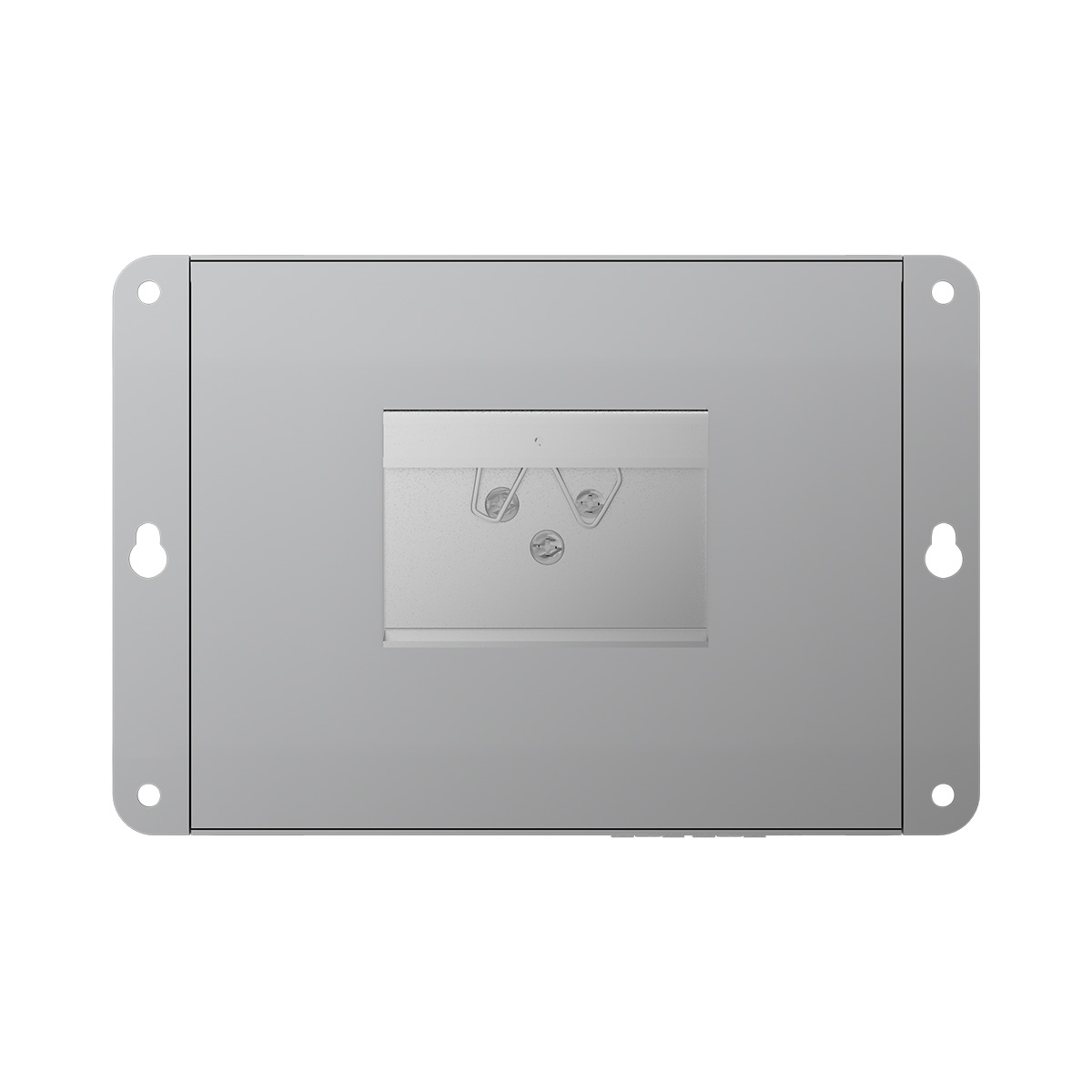

Designed for versatile installation, this poe switch supports both wall mounting and standard 35mm DIN-rail attachment—ideal for control panels, junction boxes, or vertical surfaces. Tool-less rail clips enable quick deployment and easy maintenance. The mounting flexibility reduces integration time and supports rapid scalability across distributed networks. Whether deployed in a factory floor cabinet or roadside enclosure, its adaptability streamlines installation and improves service efficiency—perfect for system integrators and OEMs seeking plug-and-play readiness.



Connectivity Solutions



Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution

Flat-type 8 port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution









Specification



  • Spécifications techniques :

    IE7211W-8PGE2GF-DC

  • Ports cuivre RJ45 10M/100M/1G :

    8

  • Ports SFP (fibre) 1,25G :

    2

  • Ports PoE/PoE+ :

    4

  • Alimentation via Ethernet :

    *

  • Norme PoE :

    Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Type d'alimentation PoE :

    End-span: 1/2(+), 3/6(-)

  • Puissance de sortie PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Spécification de performance :

    *

  • Mémoire tampon de paquets :

    2.1 Mb

  • Modes de transfert :

    Store-and-forward

  • Bande passante :

    1G

  • Taux de transfert de paquets :

    14.88Mpps (64 byte packet size)

  • Taille de la base de données d'adresses MAC :

    4K (48-bit MAC ad-dresses)

  • Prise en charge des trames géantes :

    9K

  • Temps moyen entre les pannes :

    165,252 hours (MTBF) @ 25°C

  • Latence en cuivre de 100 M :

    8.532µs; 8.613µs; 8.712µs

  • Latence du cuivre 1G :

    3.435µs; 3.541µs; 3.643µs

  • Latence de la fibre 1G :

    2.993µs; 3.112µs; 3.183µs

  • Protocoles réseau IEEE :

    *

  • Protocoles :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)

  • LED :

    Yes

  • Par port :

    Speed, Link, Activity; PoE in different mode

  • Par appareil :

    Power

  • Spécifications physiques :

    *

  • Dimensions (Largeur * Profondeur * Hauteur) :

    178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)

  • Poids :

    0.69 kg (1.52 lb)

  • Protection de coque :

    IP30 high-strength case

  • Exigences d'alimentation :

    DC 48~56V, redundant power with reverse polarity protection

  • Ventilateur :

    Fanless

  • Spécifications environnementales :

    *

  • Température de fonctionnement :

    -40° to 75°C (-40° to 176°F)

  • humidité d'exploitation :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de fonctionnement :

    10,000 ft (3,000 m) maximum

  • Température de stockage :

    -40° to 85°C (-40° to 185°F)

  • Humidité de stockage (relative) :

    95% maximum relative humidity, non-condensing

  • Altitude de stockage :

    10,000 ft (3,000 m) maximum

  • Norme exécutive et protection :

    *

  • Protection contre la foudre :

    *

  • CEI61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Partie 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (champ magnétique pulsé) :

    1000A/m

  • IEC61000-4-10 (oscillation amortie) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onde de choc) :

    CM 2.5kV, DM 1kV

  • CEI61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmission en mode commun) :

    30V, 300V, 1s

  • CEI61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmission radiofréquence) :

    10V(150kHz~80MHz)

  • CEI61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (surtension) : câble d'alimentation :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriétés mécaniques :

    *

  • CEI60068-2-6 :

    Anti Vibration

  • CEI60068-2-32 :

    Free Fall

  • CEI60068-2-27 :

    Anti Shock

  • Émissions électromagnétiques et immunité :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Sécurité :

    *

  • Certifications de sécurité :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantie et assistance :

    *

  • Garantie limitée sur le matériel :

    Limited Lifetime*

  • Assistance technique par téléphone et e-mail* :

    Limited Lifetime*

  • Assistance technique par chat en ligne 24h/24 et 7j/7 :

    Limited Lifetime*

  • Contenu du colis :

    *

  • Tous les modèles :

    Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guide

  • Type d'entreprise :

    Industrial

  • Plus de filtres :

    Unmanaged
Questions & Answers
Q: What is a flat-type industrial PoE switch?
A: Ultra-slim (25mm) industrial switch for space-constrained installations. Supports wall/DIN rail mounting in control cabinets or traffic housings. Enables high-density deployments without airflow blockage – saves 60% cabinet space vs. standard switches.

Q: Can it power PTZ cameras/Wi-Fi 6 APs?
A: Yes. 8x IEEE 802.3at PoE+ ports (30W/port, 250W total). Powers PTZ cameras, Wi-Fi 6 APs, and IoT sensors at full Gigabit speeds. All ports run PoE simultaneously – eliminates external injectors.

Q: Fiber uplinks for EMI-heavy environments?
A: Yes. Dual 1.25G SFP slots support 80km fiber links (single-mode). EMI-resistant for substations/railways.

Q: Rated for extreme conditions?
A: Yes. -40°C to +75°C operation, IP40 metal housing. Dual 48–56V DC inputs with redundancy. ±15kV ESD protection for outdoor/industrial reliability.

Q: OEM/ODM integration options?
A: Yes. Supports custom branding, laser labeling, conformal coating. Compact 25mm design integrates into ITS/industrial equipment. 4-week customization with CE/FCC/RoHS.


Downloads



  • Flat-type 8 Port Industrial Fiber Swtich with 4 PoE+ Datasheet (IES7211W-4P4GE2GF-DC)
